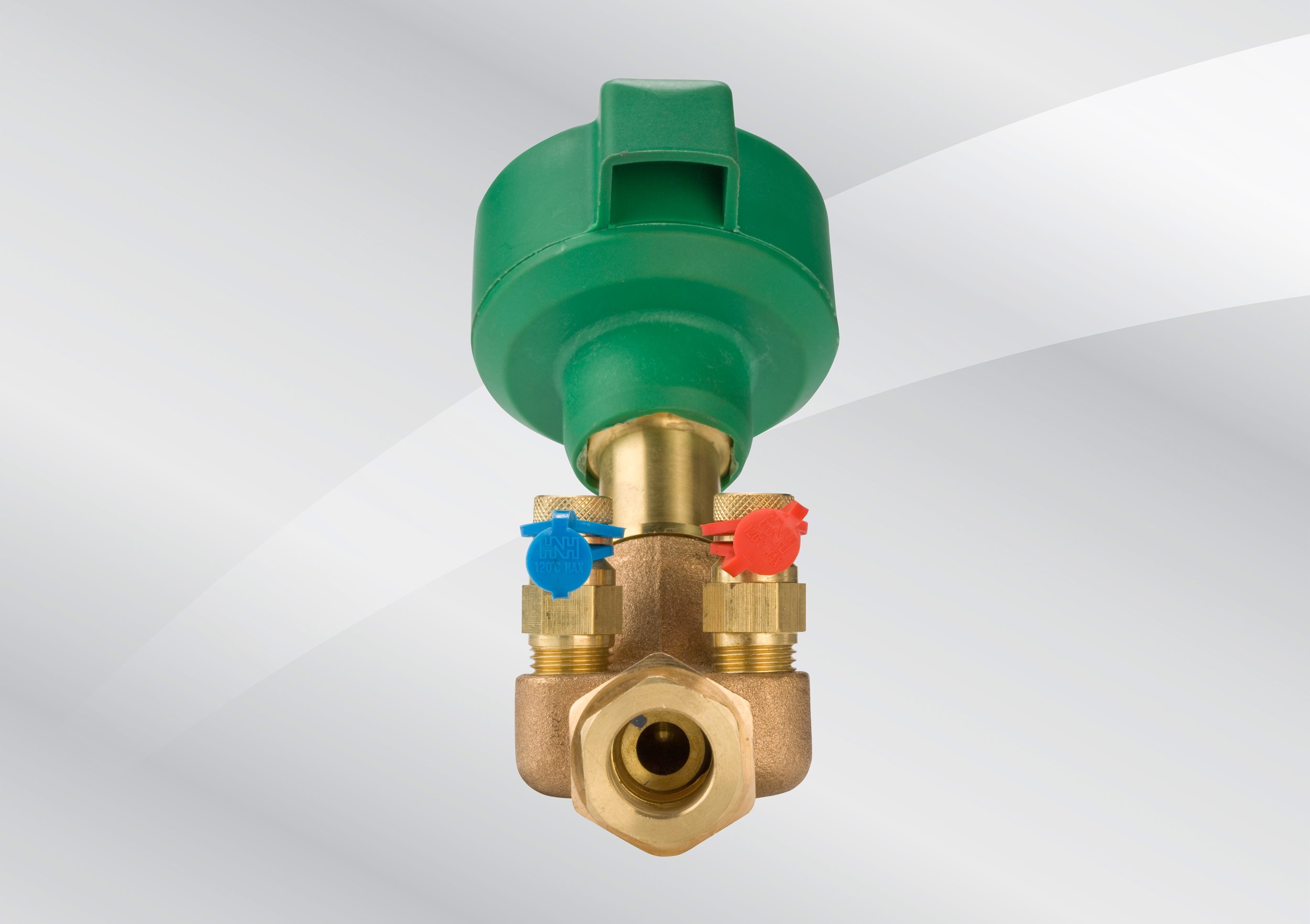

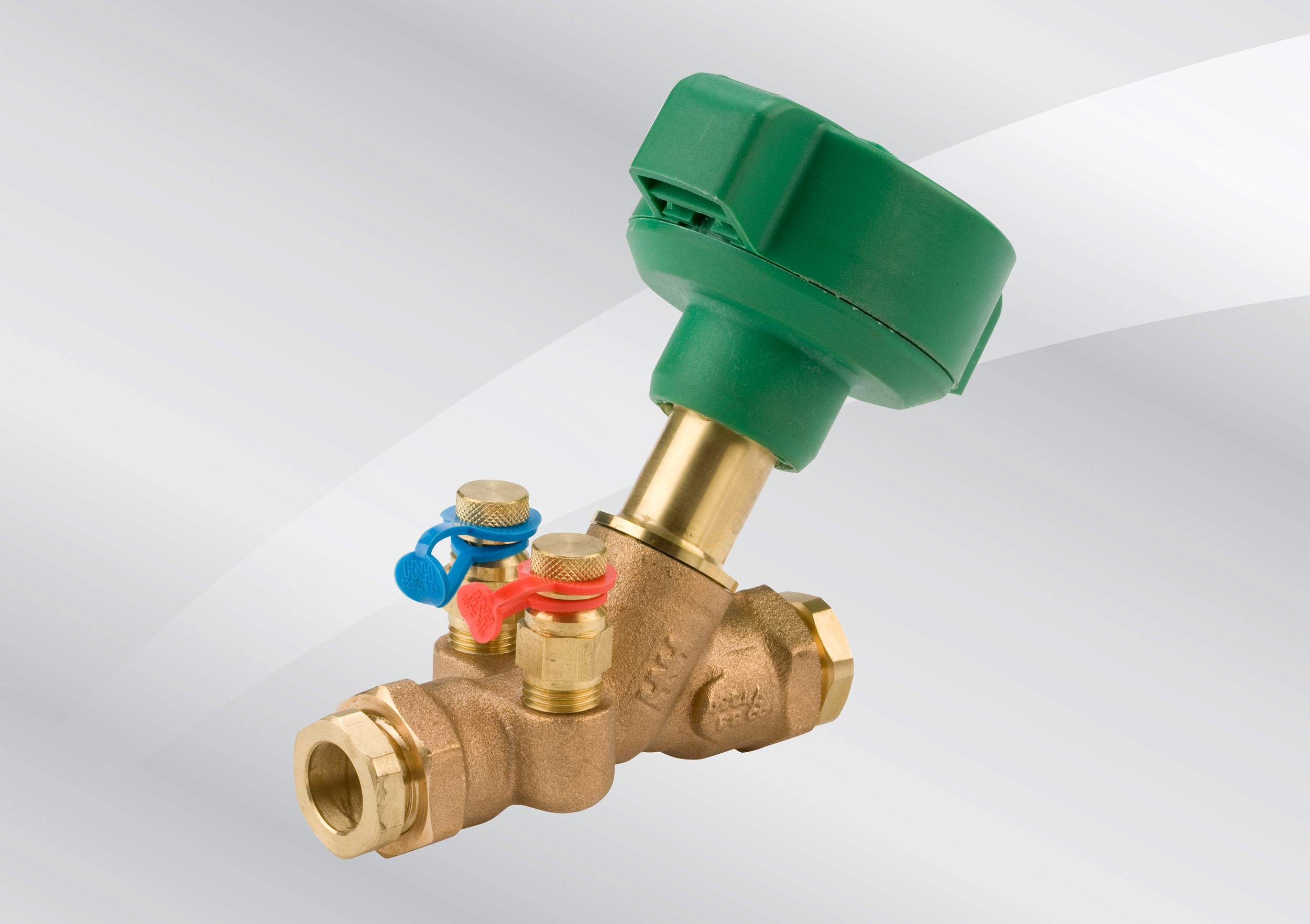

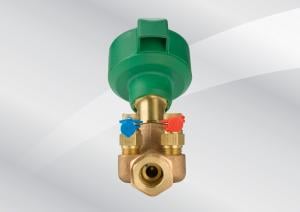

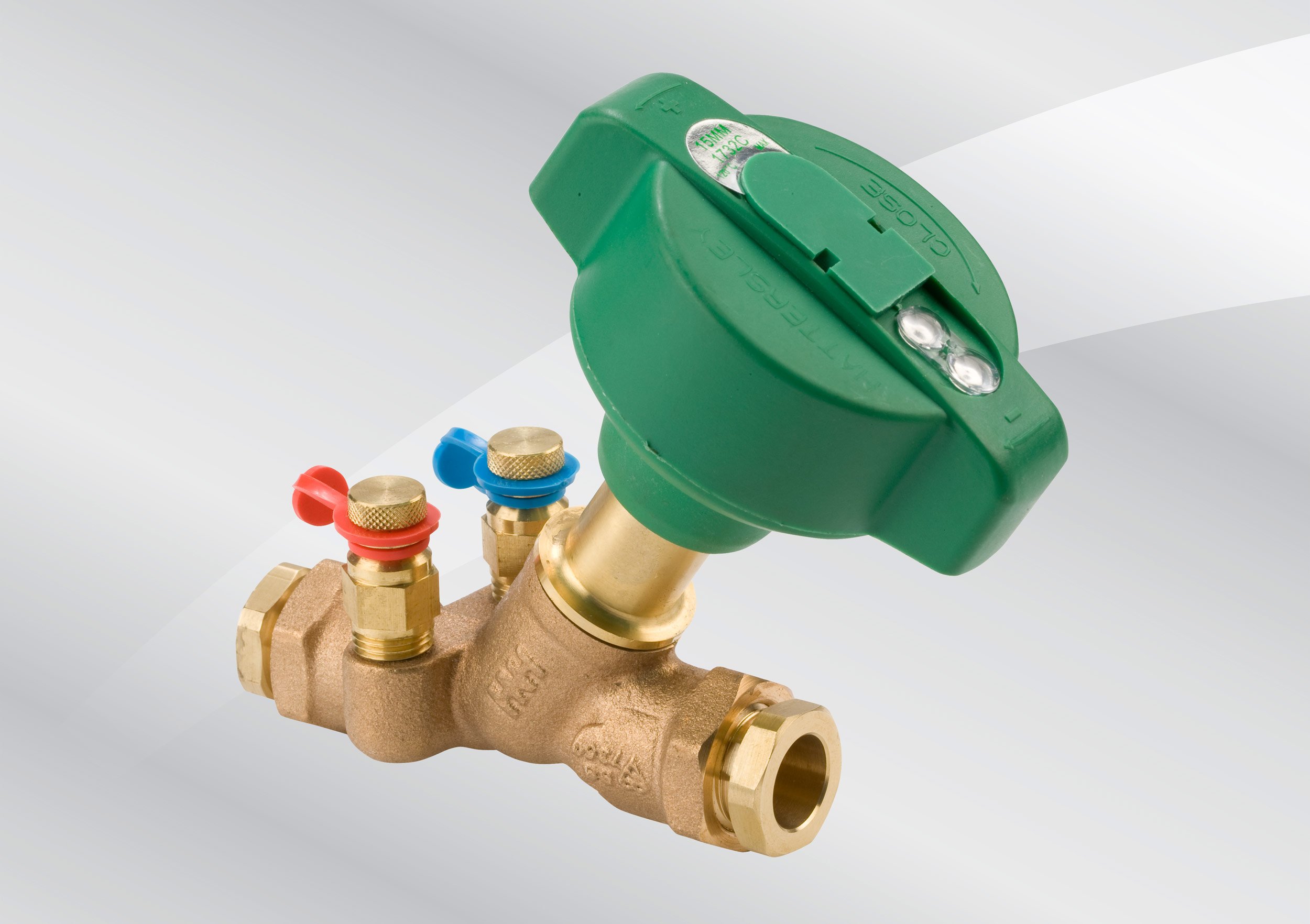

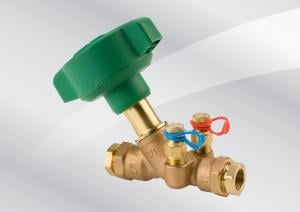

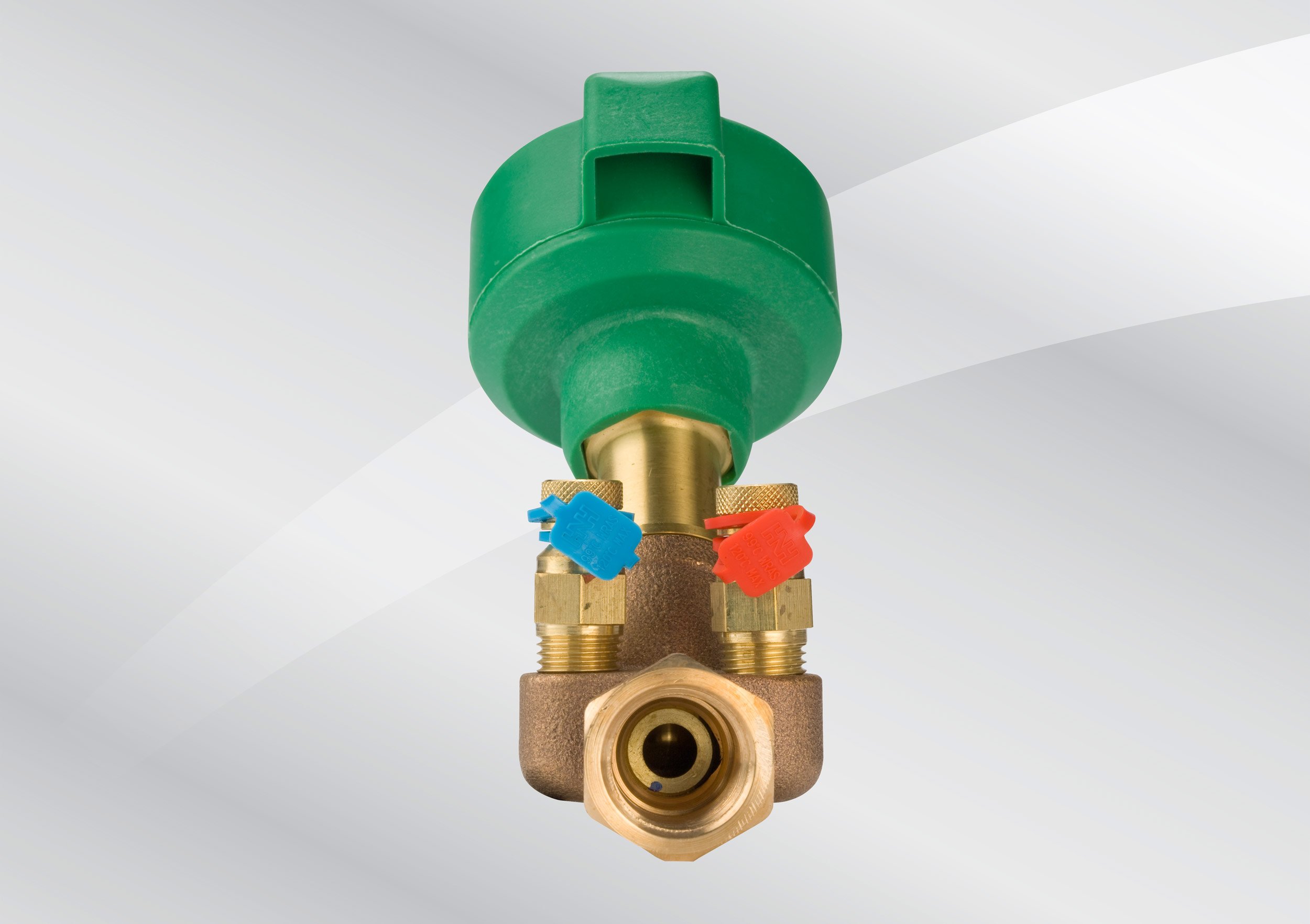

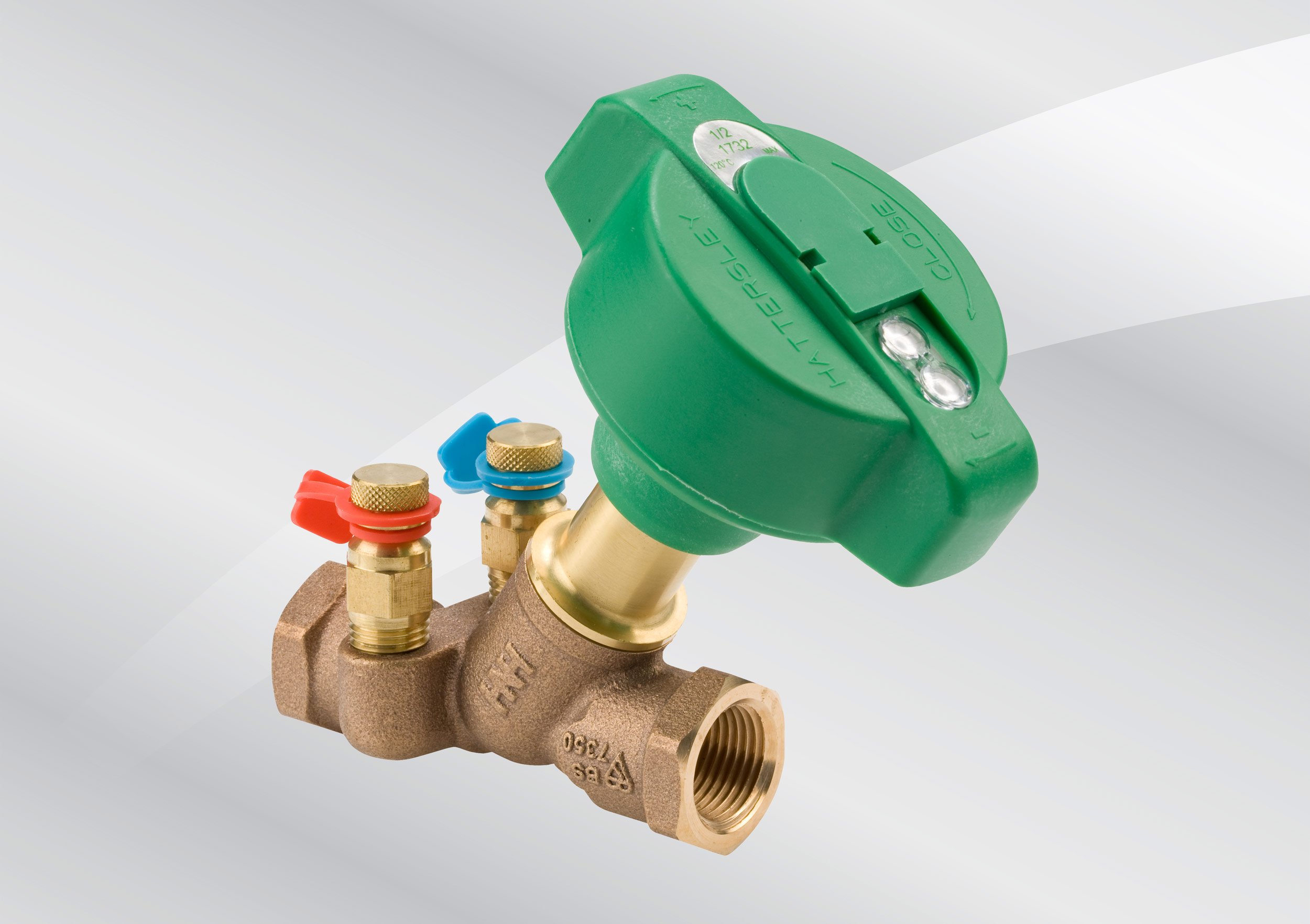

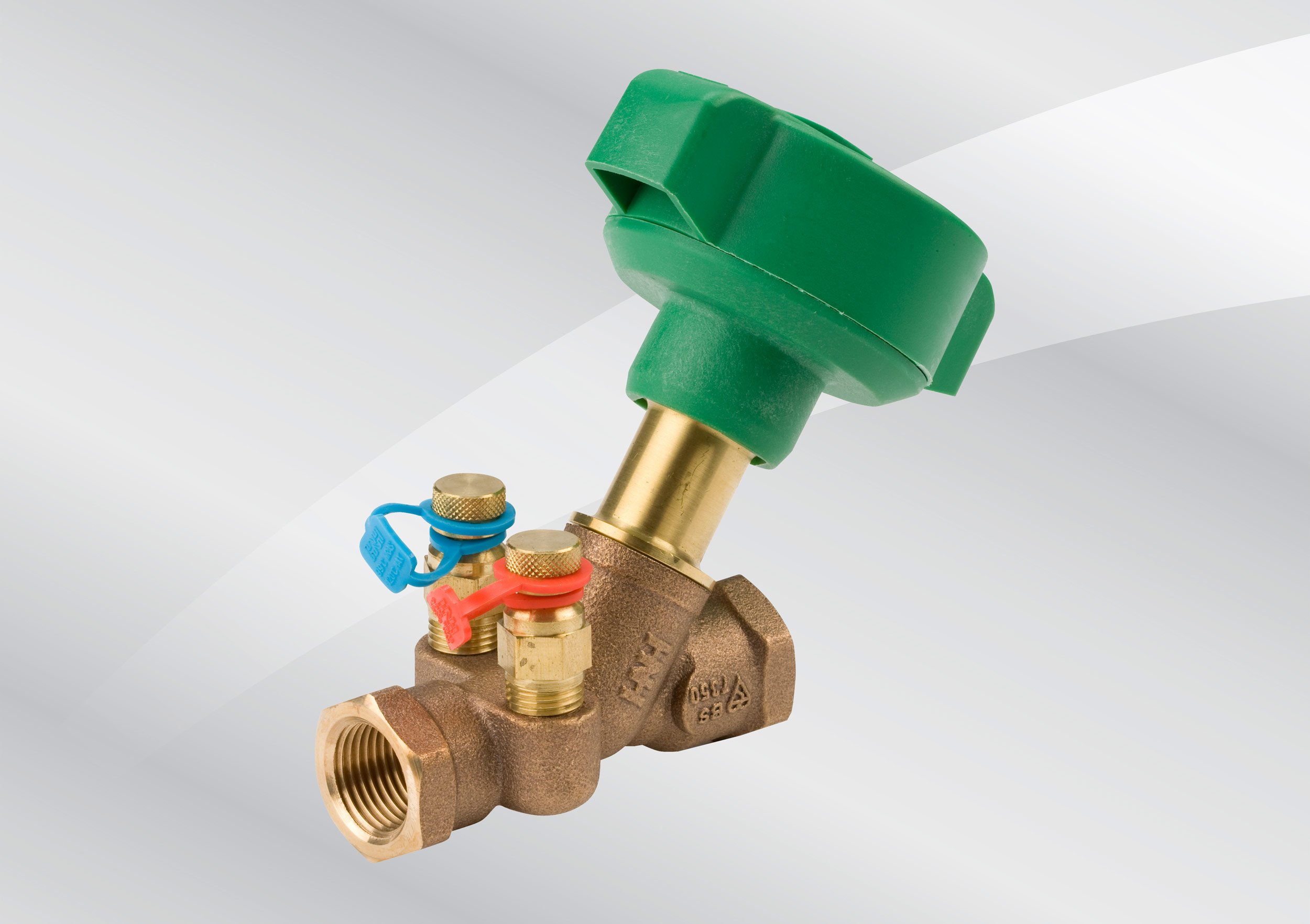

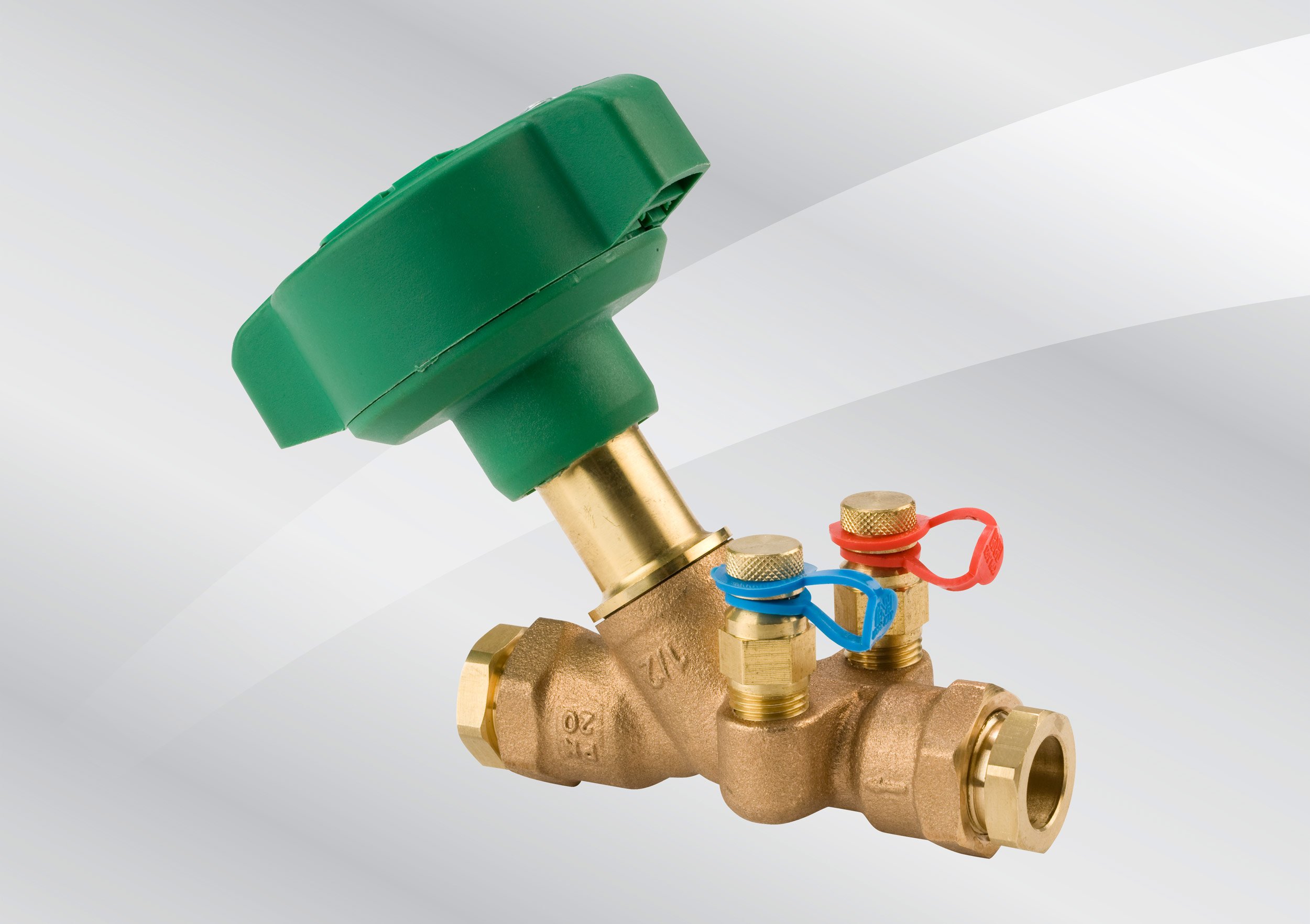

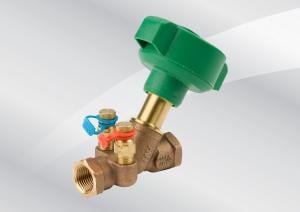

Fixed Orifice Double Regulating Valve - Bronze
Fig. 1732, 1732M, 1732L, 1732C, 1732MC & 1732LC
Fig. 1732, 1732M, 1732L, 1732C, 1732MC & 1732LC
WRAS Approved Product excludes 2” / DN50
The bronze commissioning range offers accuracy of +/-5% on all settings. The integral fixed orifice design offers greater accuracy, makes set-up easier and involves fewer connections resulting in lower installation costs.
Features & Benefits
- Provides precise and accurate flow regulation
- Easy to operate with handwheel and numerical indicator
- Integral orifice and test points - no need for separate DRV and metering station
- WRAS Approved for use with potable water to 85°C
- Positive flow control at all handwheel settings
- Material Specification - Handwheel Plastic - Stem DZR copper alloy 12165 CW602N Stem Seals EPDM - Disc DZR copper alloy 12165 CW602N Disc Seal (1-2") PTFE - B

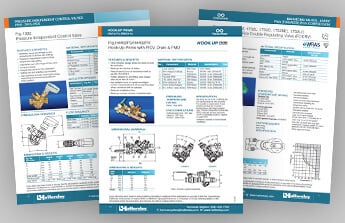

* Please refer to Datasheet for full technical information
Pressure Rating
PN20
Temperature Rating
Please see Datasheet for details
Product Material
Bronze
End Connections
Please see Datasheet for details
Product Downloads

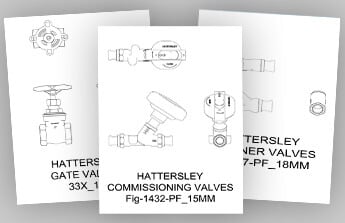

CAD FILES

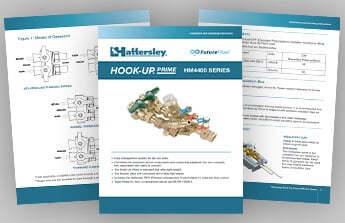

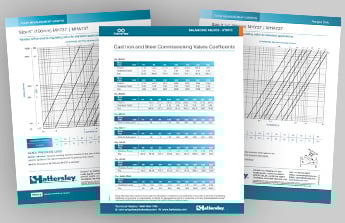

ADDITIONAL FILES
Please select from the files below

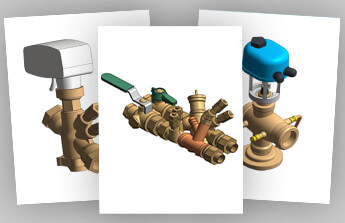

BIM
