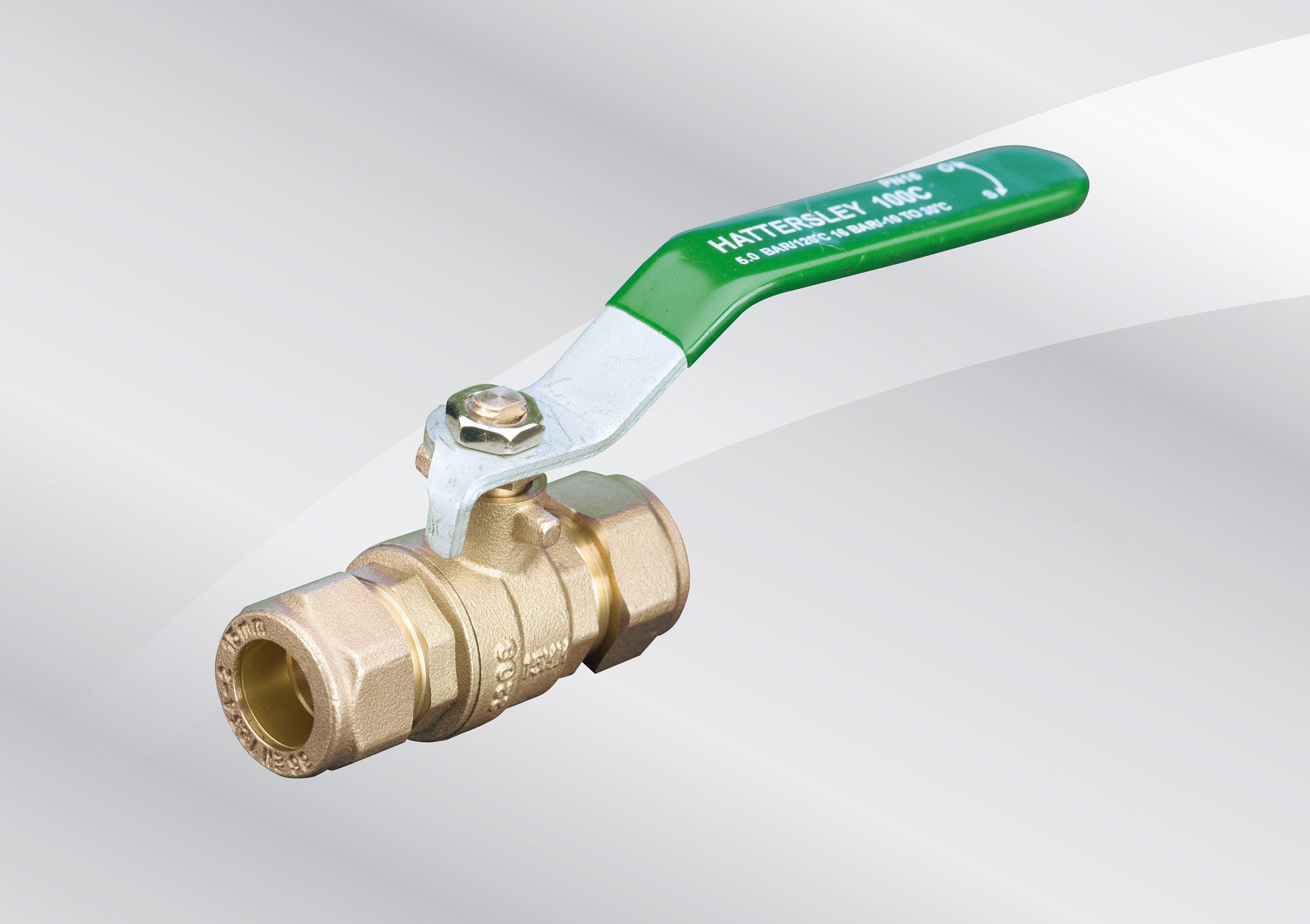

Fig. 100C & 100CEXT

Ball Valves – DZR Brass

  • Dezincification resistant.
  • Light, compact, easy to install and operate.
  • Improved leak protection.
  • More resistant to damage during installation.

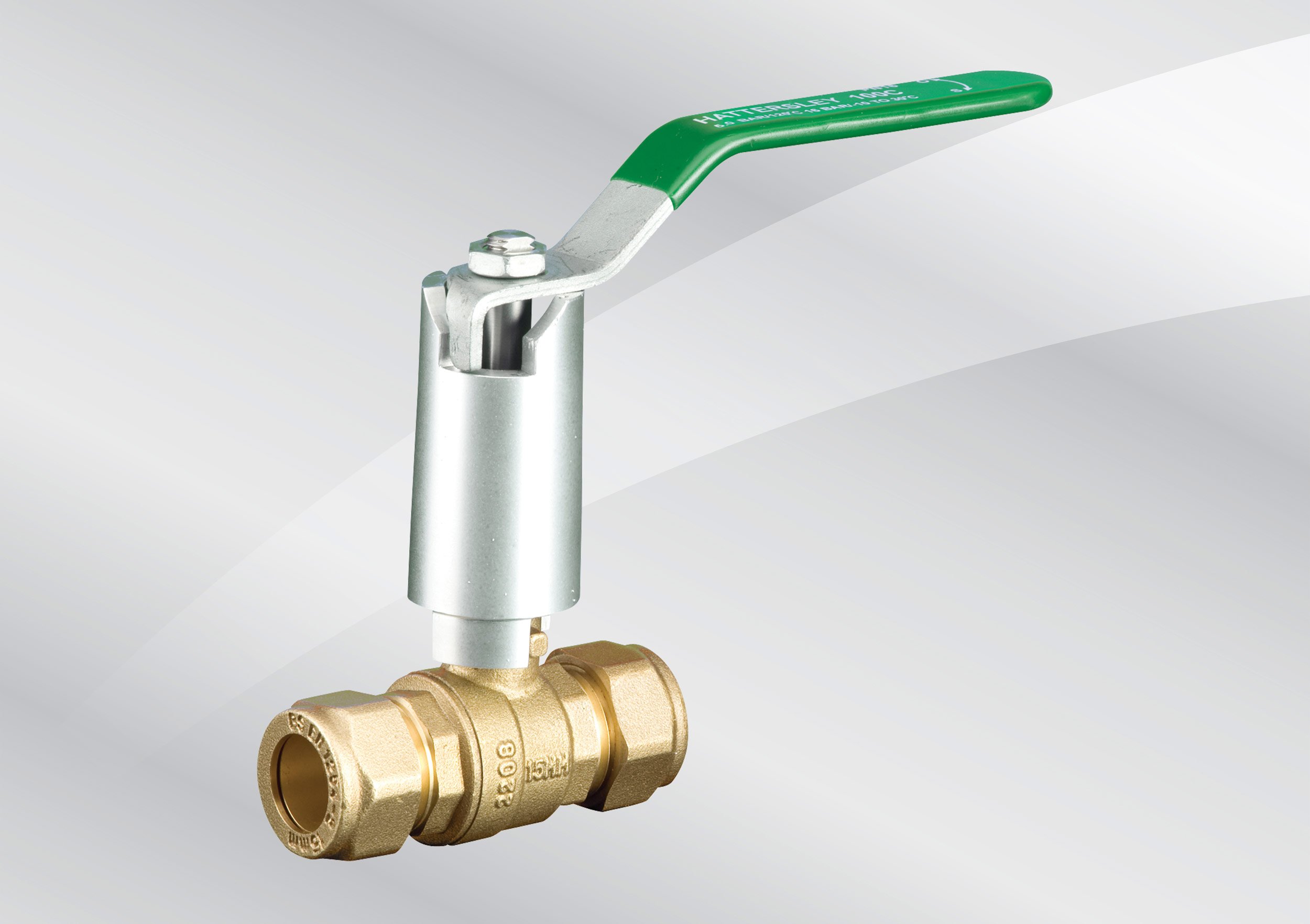

  • Optional extension stems for chilled water applications
  • WRAS Approved Product
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
15mm to 28mm
Pressure rating
PN16
End Connnections
Compression Ends to BS EN 1254-2:1998
Test pressure
25 bar pneumatic
Material
DZR Brass
×
