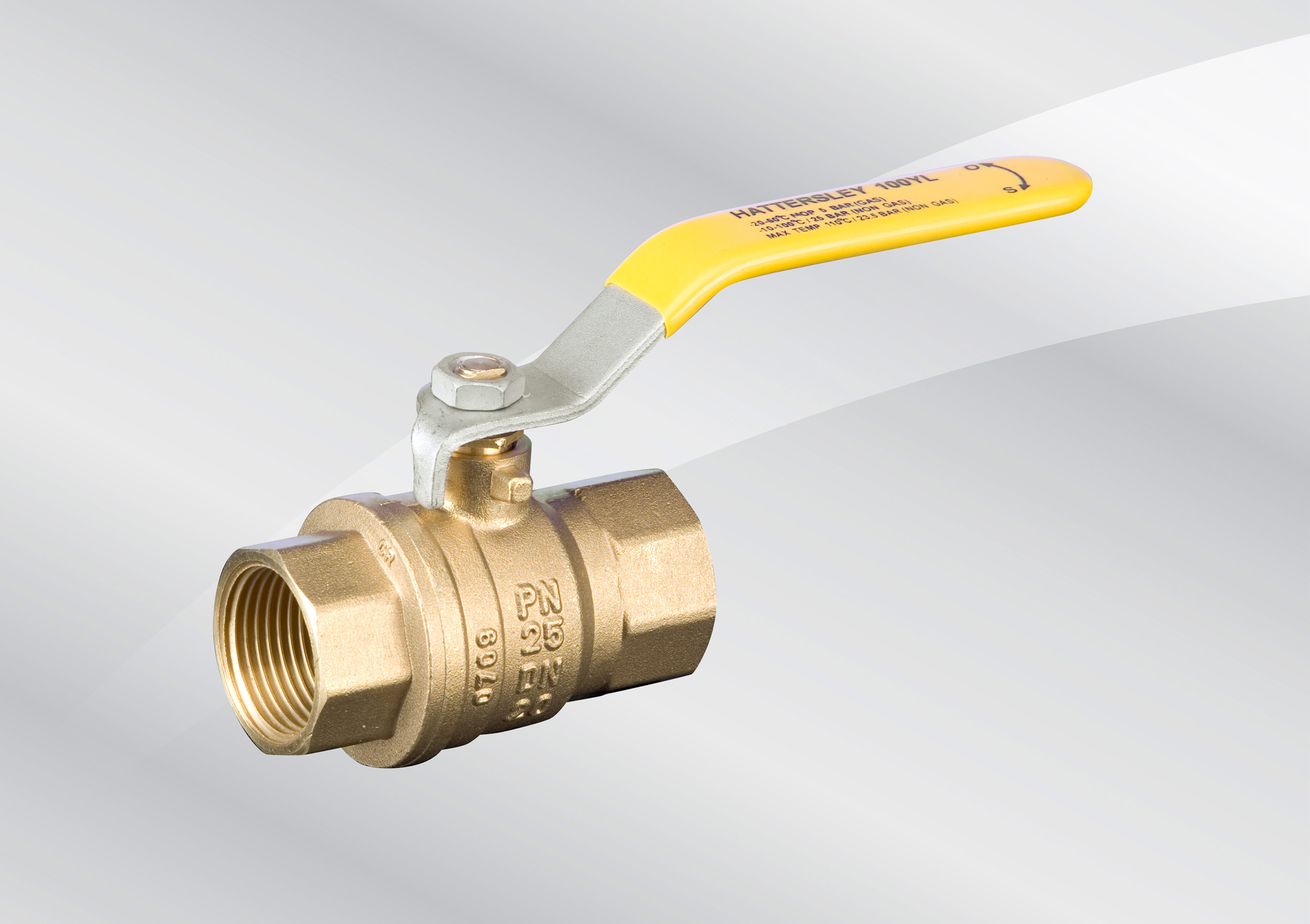

Fig. 100YL

Ball Valve – DZR Brass

in the a
  • Dezincification resistant.
  • Light, compact, easy to install and operate.
  • Improved leak protection.
  • More resistant to damage during installation.
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
1/4" to 2"
Pressure rating
PN25
End Connnections
BS EN 10226-2:2005 formerly BS21 Taper
Material
DZR Brass

Product Downloads

Datasheet
Installation Manuals
CAD Files
BIM
Additional Files
Video
Embodied Carbon Request
Embodied Carbon Request
