Fig. 970W & 970WG

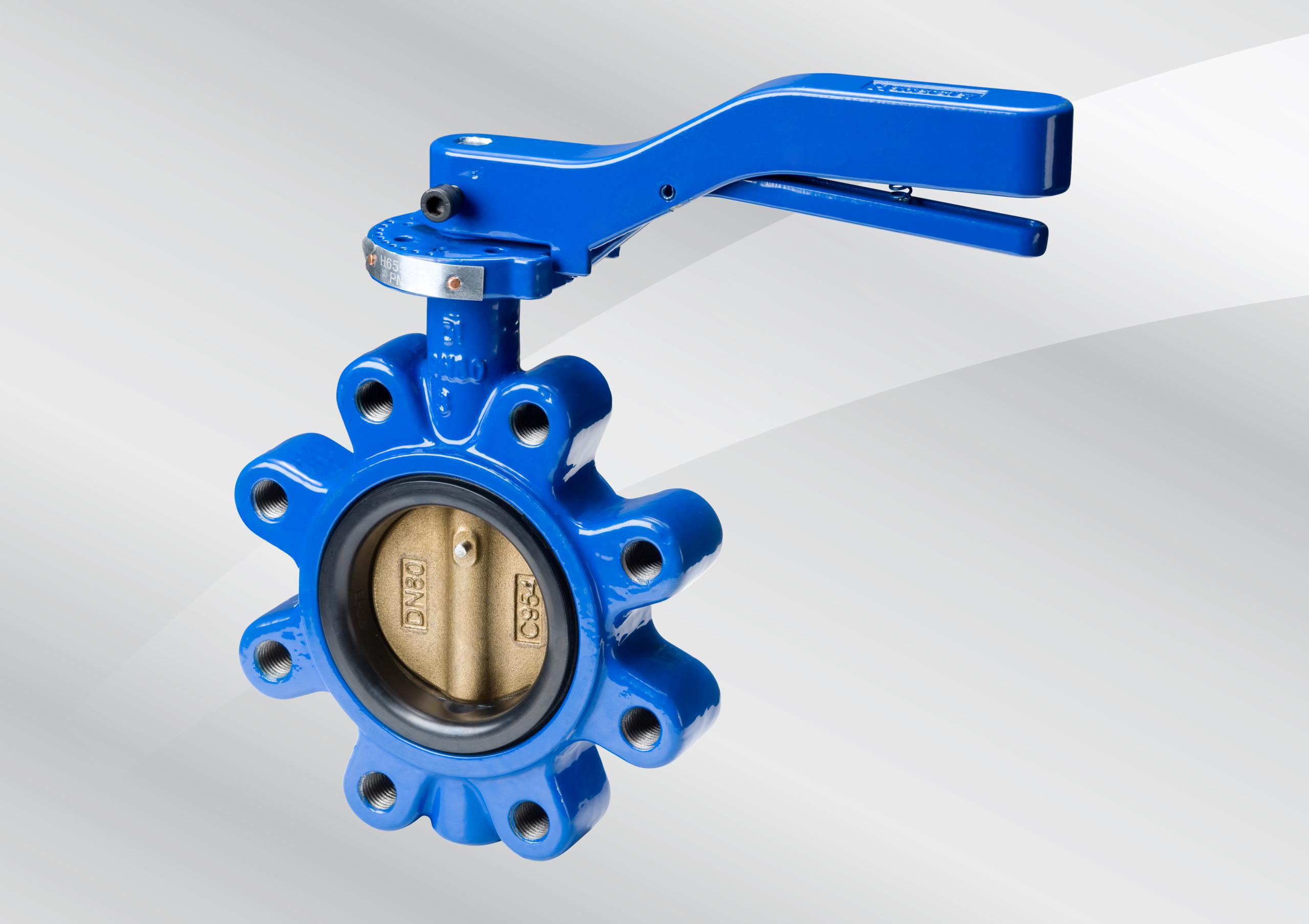

Fully-Lugged Butterfly Valve – Ductile Iron
- WRAS Approved for potable water applications -10°C to 80°C
- Robust ductile iron valve body for long service life
- Valve body fully-lugged for secure installation
- The anti-blow out stem design provides a safe and secure operation
- Fully bonded epoxy paint system for superior corrosion resistance
- Suitable for applications where Level 3 C3 (Medium) corrosion protection is required
- Maintenance free valve design, reducing downtime
- Suitable for wide temperature range -10°C to 100°C
- Valves are suitable for use with flanges conforming to BS EN 1092-2 PN16
- Valve to BS EN593
- 420 Stainless Steel Shafts for superior strength
Product Overview
Please refer to Datasheet for full technical information
Fig. 970W: 50mm to 200mm
Fig. 970WG: 50mm to 600mm
Fig. 970WG: 50mm to 600mm
PN16 from -10 to 80°C WRAS
PN16 from -10 to 100°C (Non WRAS)
PN16 from -10 to 100°C (Non WRAS)
PN16
Hydrostatic
Shell: 24 bar
Seat: 17.6 bar
Shell: 24 bar
Seat: 17.6 bar
Ductile Iron
