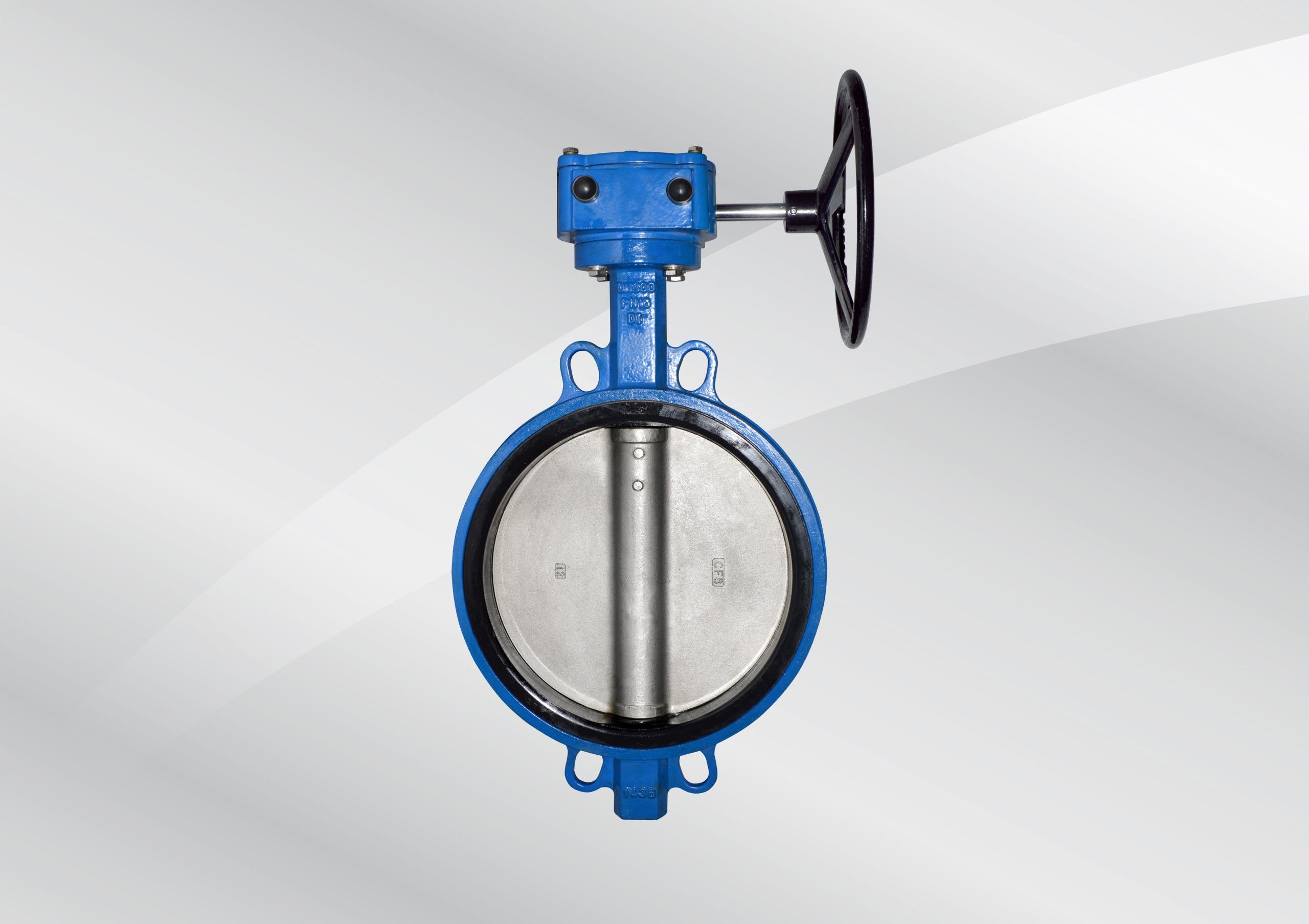

Semi-Lugged Wafer Pattern Gearbox Operated Butterfly Valves - Ductile Iron

Fig. 2850G / 2851G / 3850G / 3851G / 4850G / 4851G

Fig. 2850G / 2851G / 3850G / 3851G / 4850G / 4851G

Fig. 2850G / 2851G / 3850G / 3851G / 4850G / 4851G

Features & Benefits

Universal Pattern - Valves are suitable for use with flanges conforming to BS EN 1092-2 PN16 or ANSI B16.1 Class 125
Valve to BS EN593
Ductile Iron, Stainless Steel, and Aluminium Bronze Disc Options
EPDM and Nitrile Seat Liner Options
420 Stainless Steel Shafts for superior strength

* Please refer to Datasheet for full technical information

Size

50mm to 600mm

Pressure Rating

PN16 / ANSI 125

Product Material

Ductile Iron

End Connections

End connections compatible with BS EN1092-2 PN16 & ANSI B16.1 Class 125 flanges.

Product Downloads

DATASHEET

INSTALLATION MANUAL

ADDITIONAL FILES

BIM

Fig. 2850G / 2851G / 3850G / 3851G / 4850G / 4851G
