Fig. 951 & 951G

Semi-lugged Lever/Gearbox Operated Wafer Pattern – Ductile Iron

  • Robust ductile iron valve body for long life service
  • Valve body semi-lugged to fit PN10, PN16, or Class 125 flanges
  • Integrated notch plate for a more compact design
  • The anti-blow out stem design provides a safe and secure operation
  • Fully bonded epoxy paint system for superior corrosion resistance
  • Suitable for applications where Level 3 C3 (Medium) corrosion protection is required
  • Maintenance free valve design, reducing downtime

Product Overview

Please refer to Datasheet for full technical information

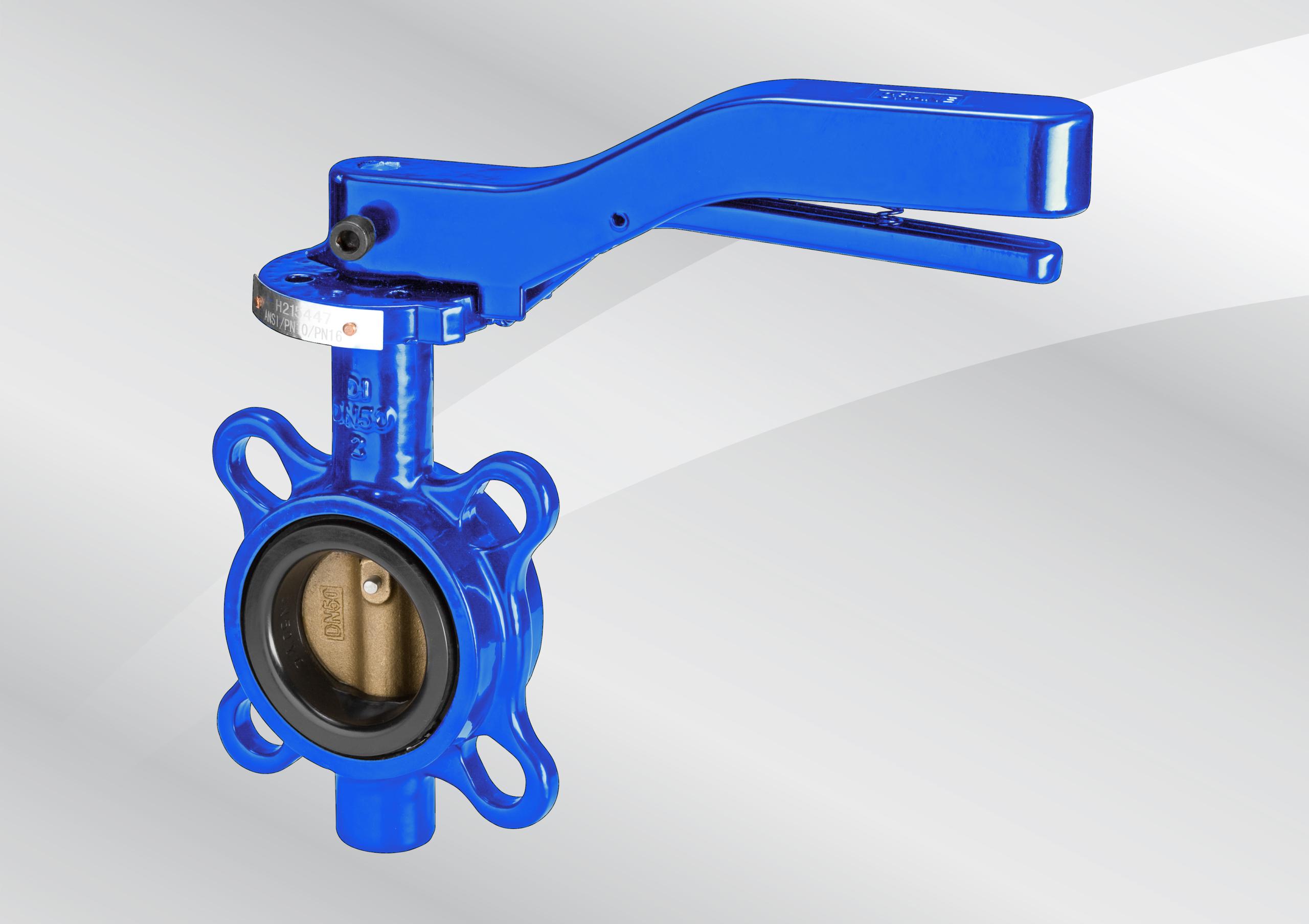

Fig. 951: 50mm to 200mm

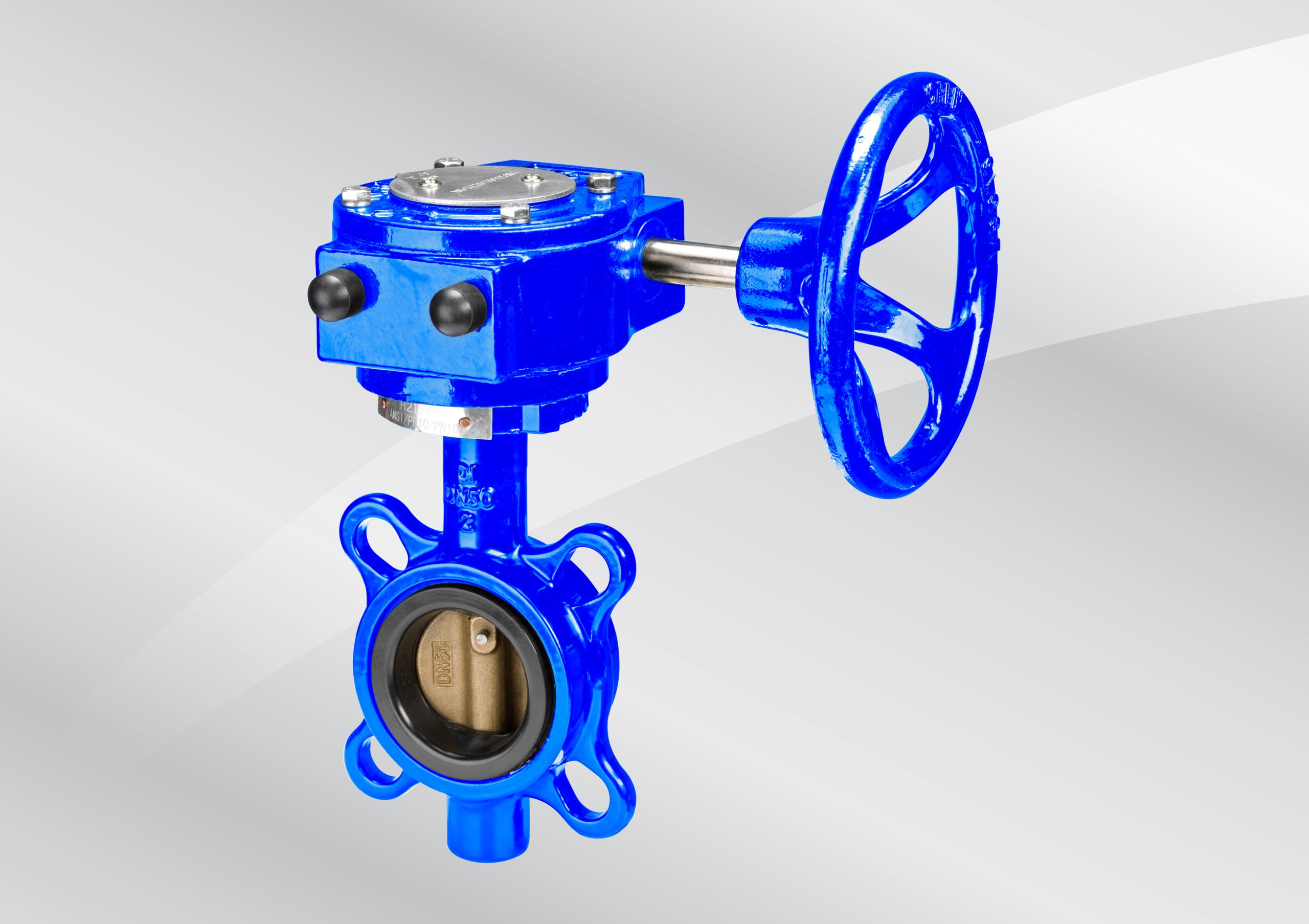

Fig. 951G: 50mm to 300mm
End Connnections
Sizes DN50 to DN300 are suitable for use with flanges conforming to BS EN 1092-2 PN10 or PN16 and ANSI B16.1 Class 125.
Pressure rating
Ductile Iron
