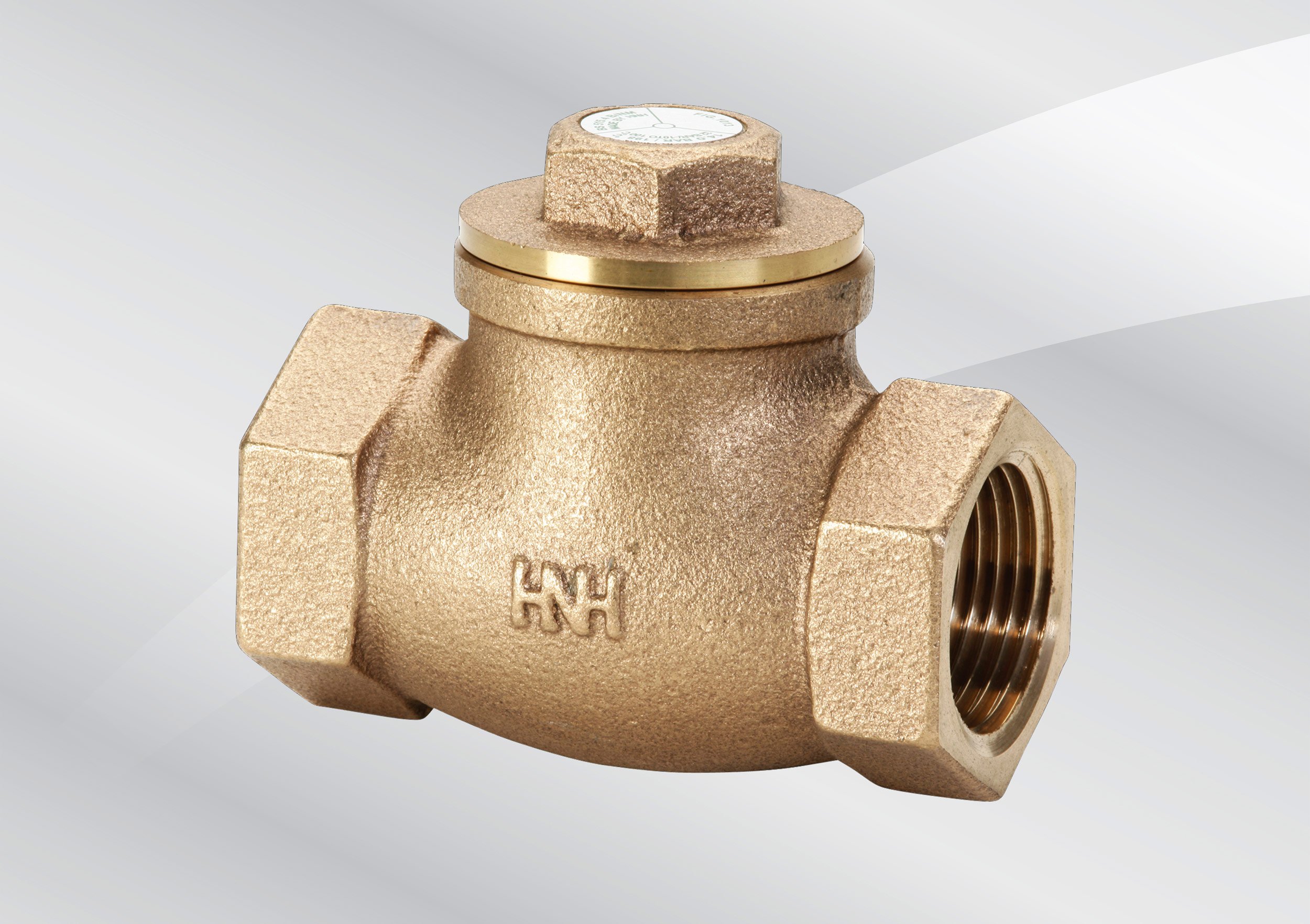

Fig. 42

Check Valves – Horizontal Lift – Bronze

in the a
  • Robust and high quality bronze body.
  • Horizontal lift pattern.
  • Metal to metal seat for enhance sealing.
  • Taper threaded to BS EN 10226 ISO 7-1 (BS 21)
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
1/2" to 2"
Pressure rating
PN32
Material
Bronze
End Connnections
Taper threaded to BS EN 10226 ISO 7-1 (BS 21)
Test pressure
Seat: 35.2 bar - Hydraulic
Shell: 6 bar - Pneumatic
Pressure / Temperature
BS 5154 PN32 Series B
14 bar at 198ºC
32 bar from -10 to 100ºC
