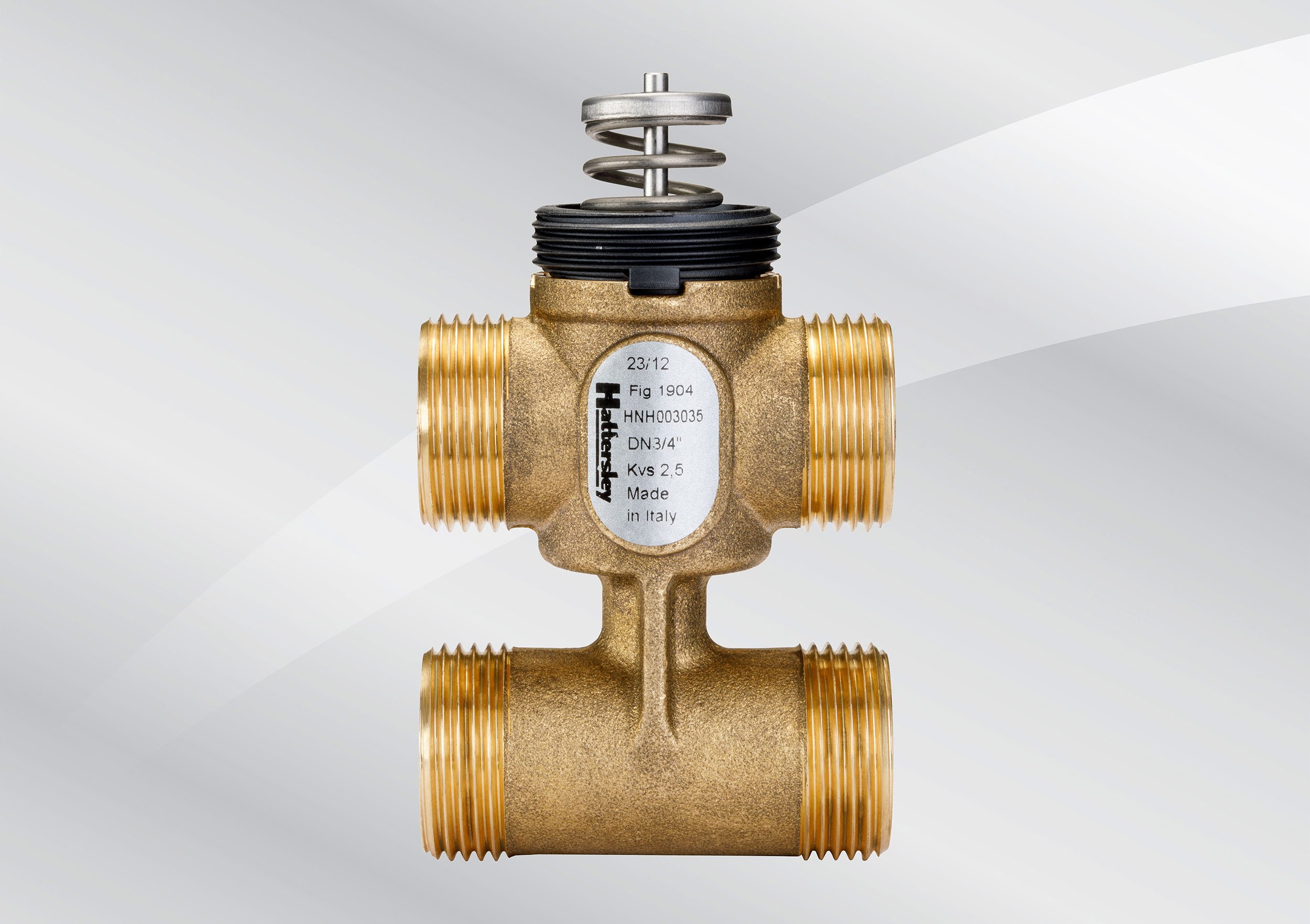

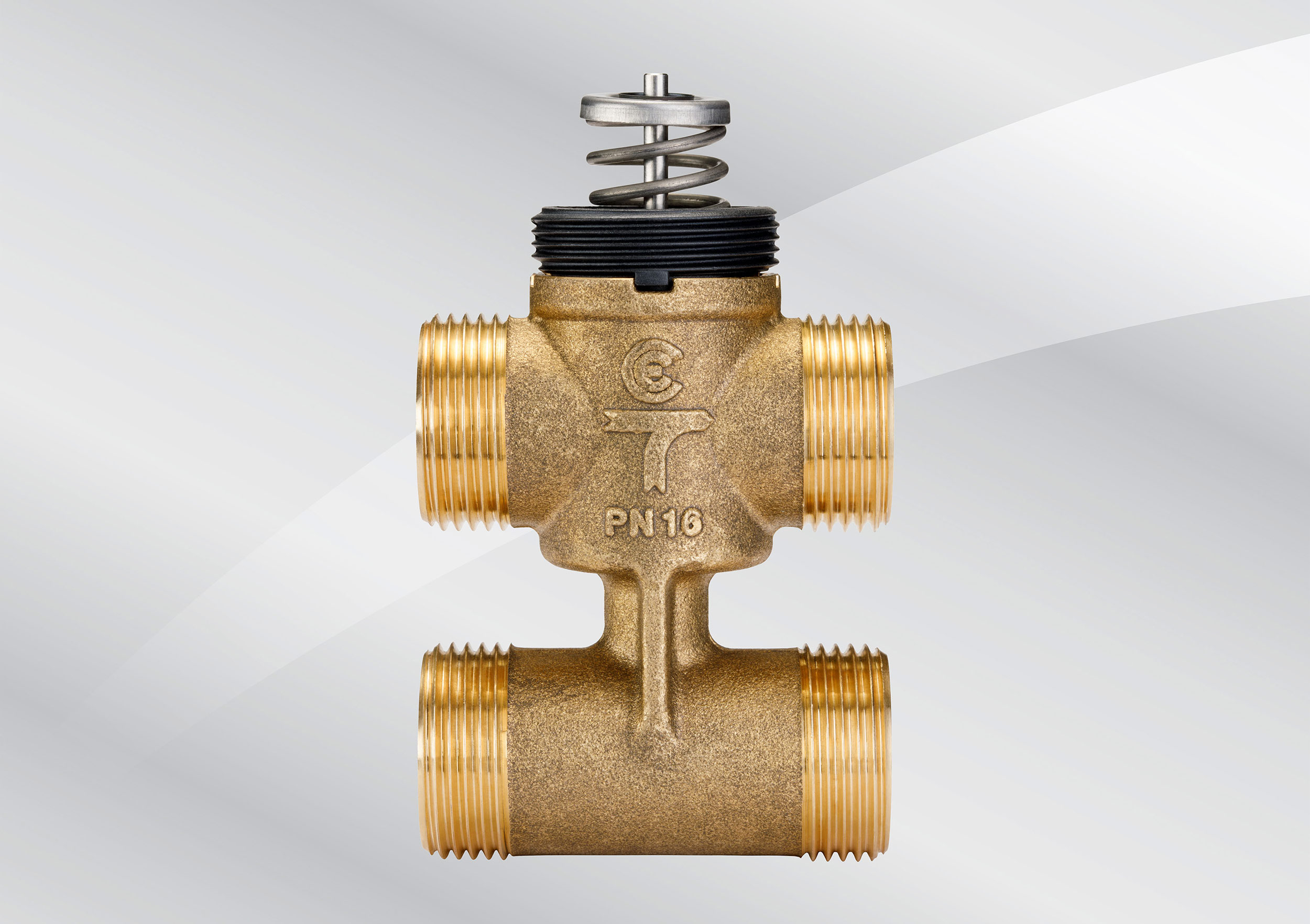

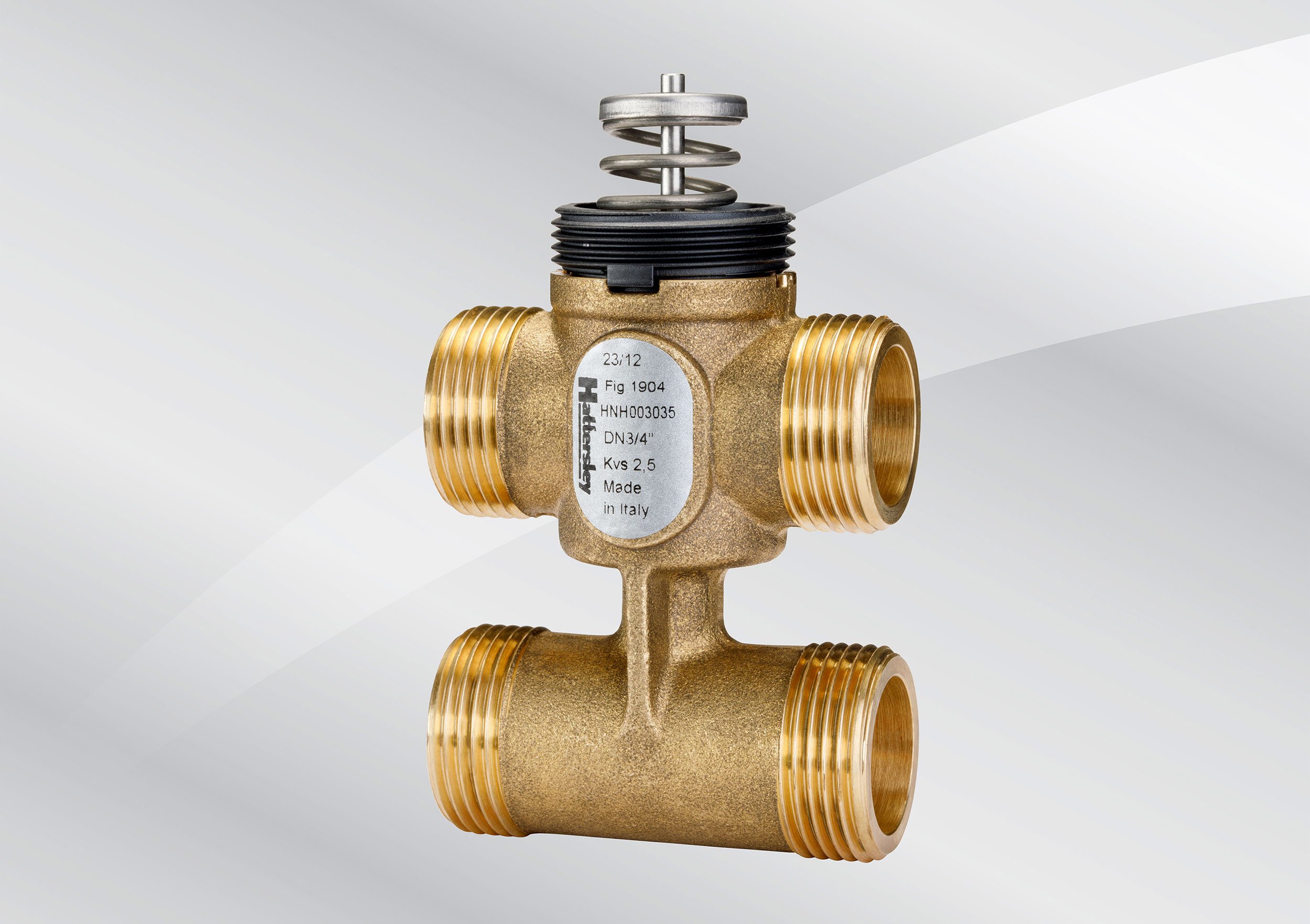

Fig. 1904

4 Port Valve

  • Offers zone, terminal bypass and end of line applications

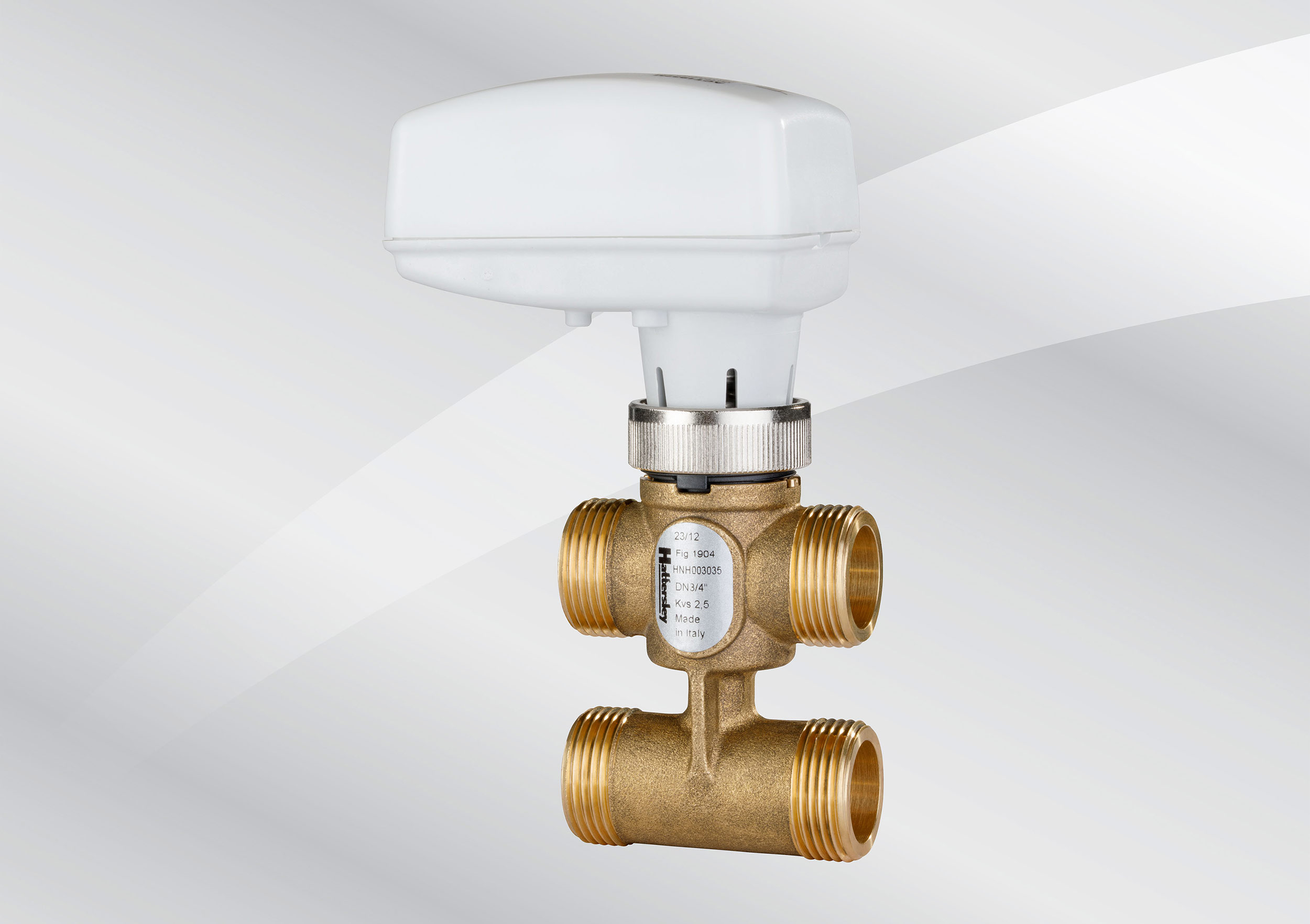

  • Simple integration into the BMS using the Hattersley Modulating (ACT1932M), 3 Point (ACT1932TP) and Thermic (ACT1933TH 140N) actuators
  • Easy mounting to pipework or terminal units in confined spaces due to the compact and lightweight design
  • Isolation function with Class IV leakage up to 225kPa
  • PN16 rated product, suitable for building services applications and services with up to 30% Glycol

Product Overview

Please refer to Datasheet for full technical information

Pressure rating
PN16
Temperature Rating
5°C to 95°C
End Connnections
BSP Male Parallel ISO-228 0JG93556V 1/2” BSP
x15mm solder adaptor is available when female end connection is required.
Kvs
1/2 Inch
0.25 Kvs
0.4 Kvs
0.6 Kvs
1.0 Kvs
1.6 Kvs

3/4 Inch
2.5 Kvs
