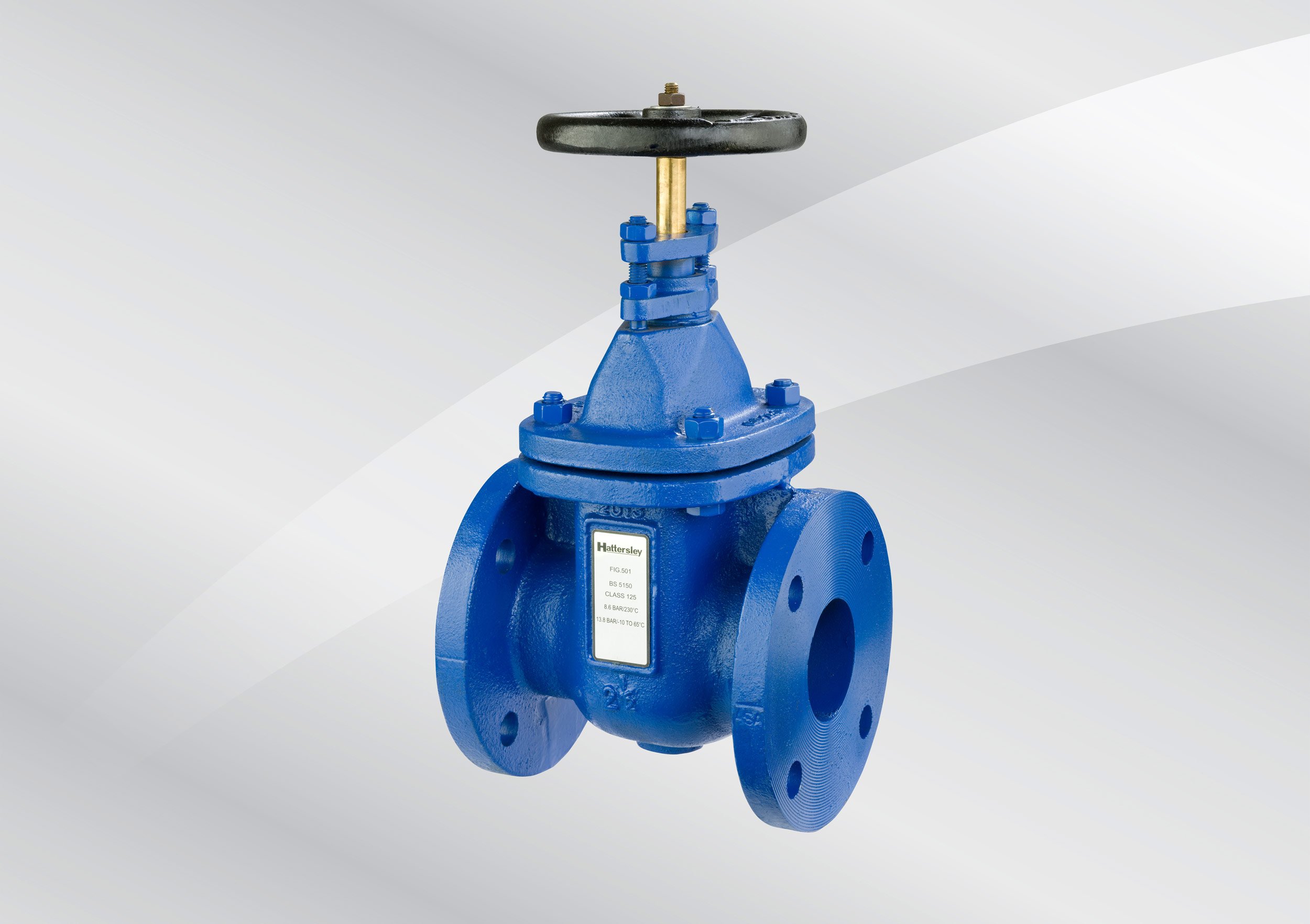

Fig. 501

Gate Valves – Cast Iron

in the a
  • Case iron with integral flanges.
  • Inside screw pattern with non-rising stem.
  • Ideal for use for non- corrosive and reasonably clean services.
  • Seat rings are threaded and securely fixed into the body.
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
2" to 12"
Pressure rating
Class 125
Test pressure
Shell: 24.1 bar
Seat: 15.2 bar
Material
Cast Iron
End Connnections
Flanged to ANSI B16.1 Class 125 and BS 1560 3.2
Pressure / Temperature
8.6 bar at 232ºC
13.8 bar at -10 to 65ºC

Product Downloads

Datasheet
Installation Manual
BIM
