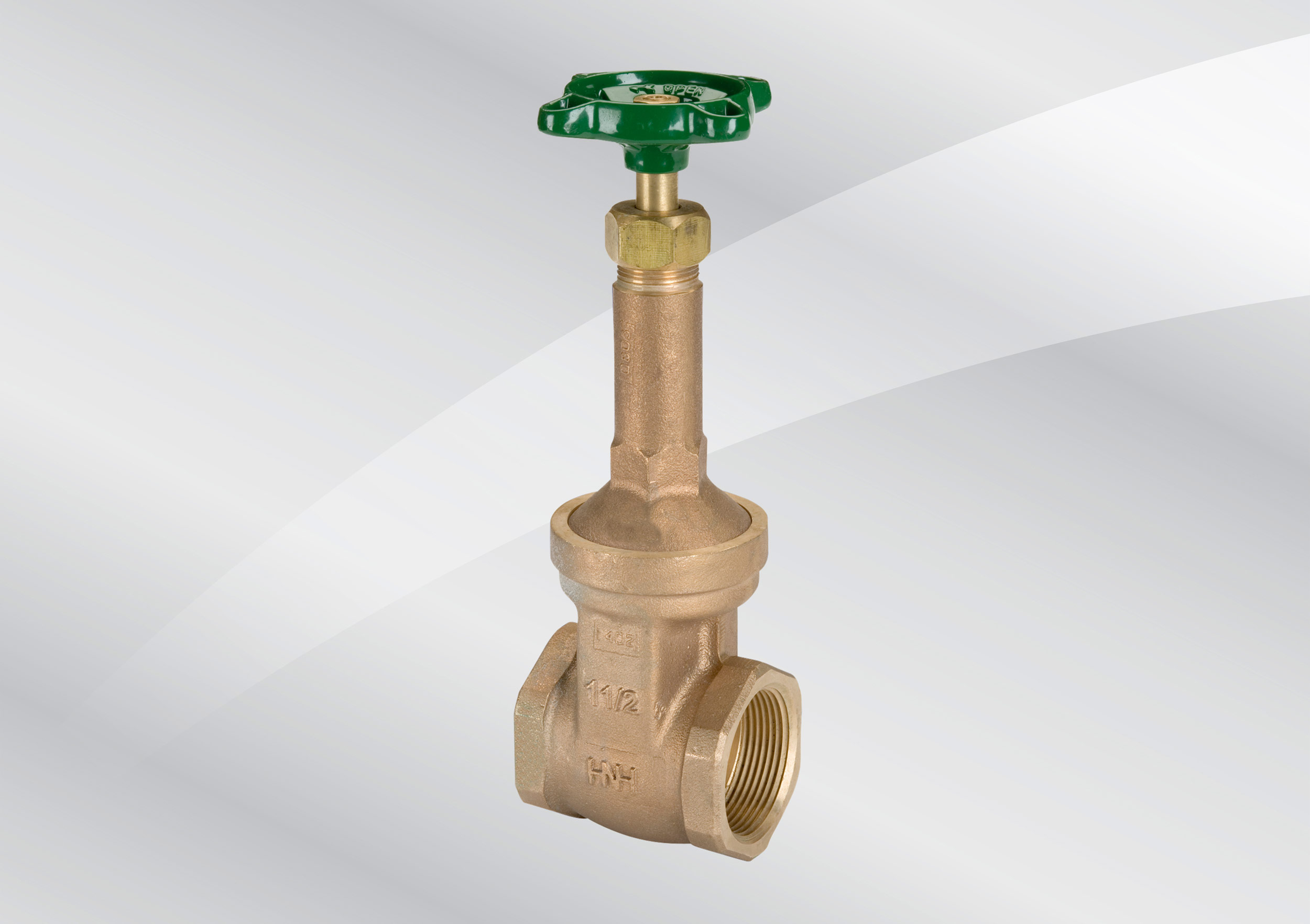

Fig. 609

Gate Valves – Bronze

in the a
  • Robust and high quality bronze body with integral seating surfaces.
  • Inside screw pattern with rising stem.
  • Suitable for high pressures up to 32 bar.
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
1/2" to 2"
Pressure rating
PN32
Material
Bronze
Test pressure
Seat: 22 bar
Shell: 30 bar
End Connnections
Taper threaded BS EN 10226 (ISO 7-1) formerly BS 21.
Pressure / Temperature
14 bar at 198°C
32 bar from -10 to 100°C

Product Downloads

Datasheet
Installation Manual
BIM
Additional Files
