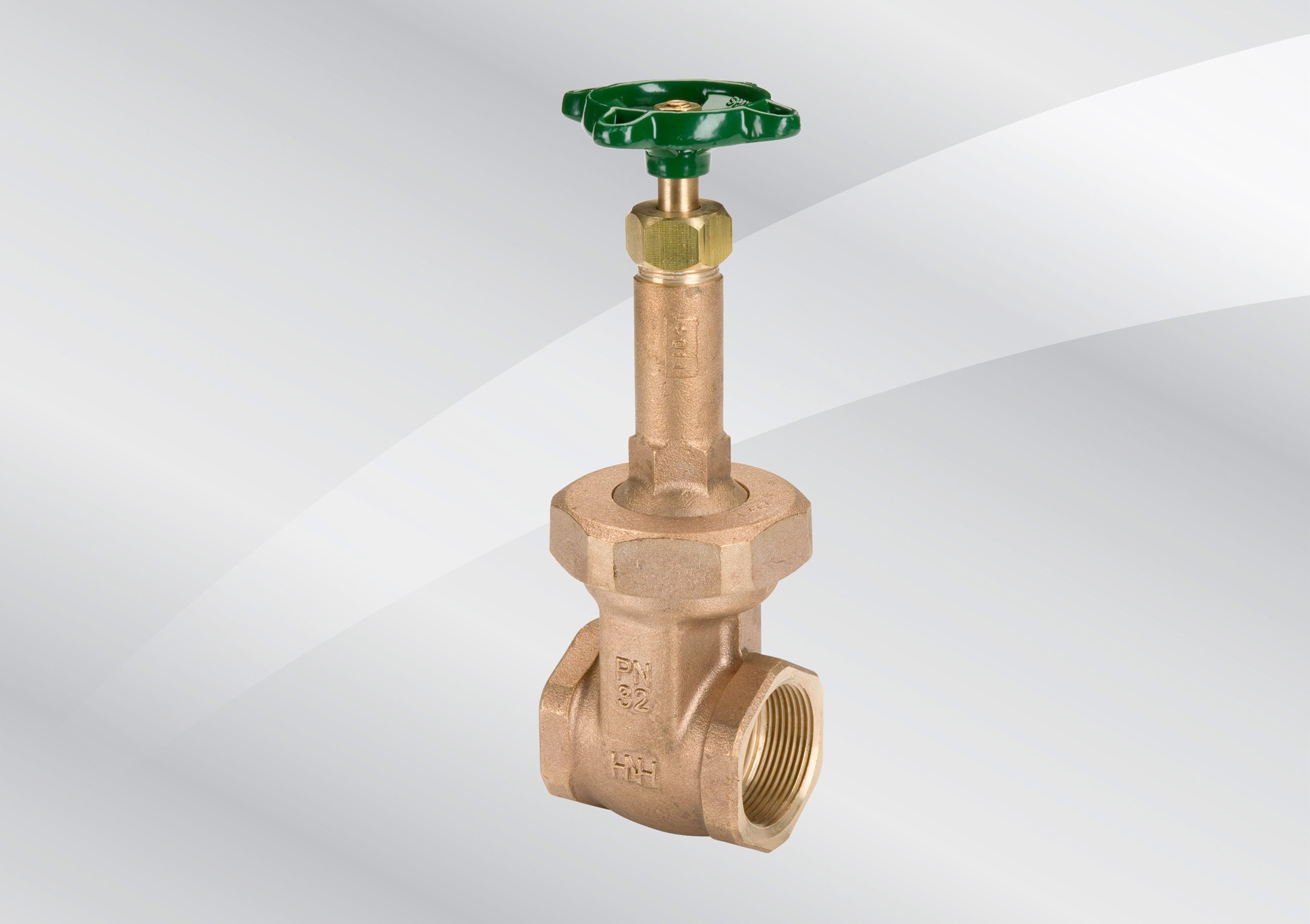

Fig. 669

Gate Valves – Bronze

  • Robust and high quality bronze body with integral seating surfaces.
  • Inside screw pattern with rising stem.
  • Suitable for high pressures up to 32 bar.
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
1/2" to 2"
Pressure rating
PN32
Test pressure
Shell: 48 bar
Seat: 35.2 bar
Material
Bronze
End Connnections
Taper threaded BS EN 10226 (ISO 7-1) formerly BS 21.
Pressure / Temperature
BSEN12288 PN32 Series A
14 bar at 260°C
32 bar from -10°C to 120°C
×
