Fig. 589 HW & Fig.589 SA

Resilient Seated Gate Valve (RSGV) – Ductile Iron

Resilient Seated Gate Valve (RSGV) Handwheel & Stem Adaptor Operated

  • Manufactured in accordance with BS EN 1074 for quality assurance

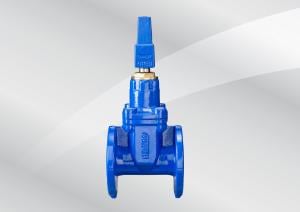

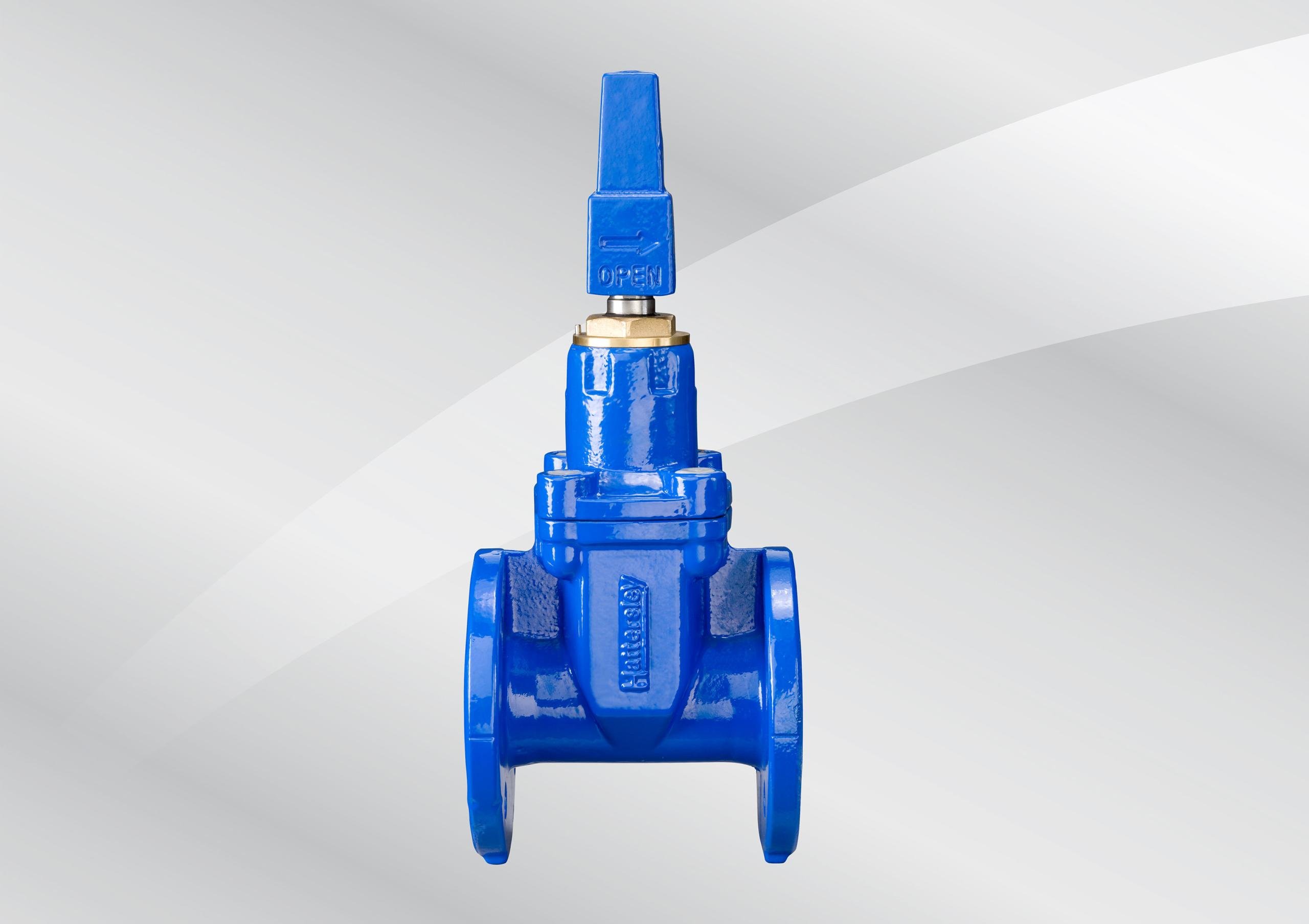

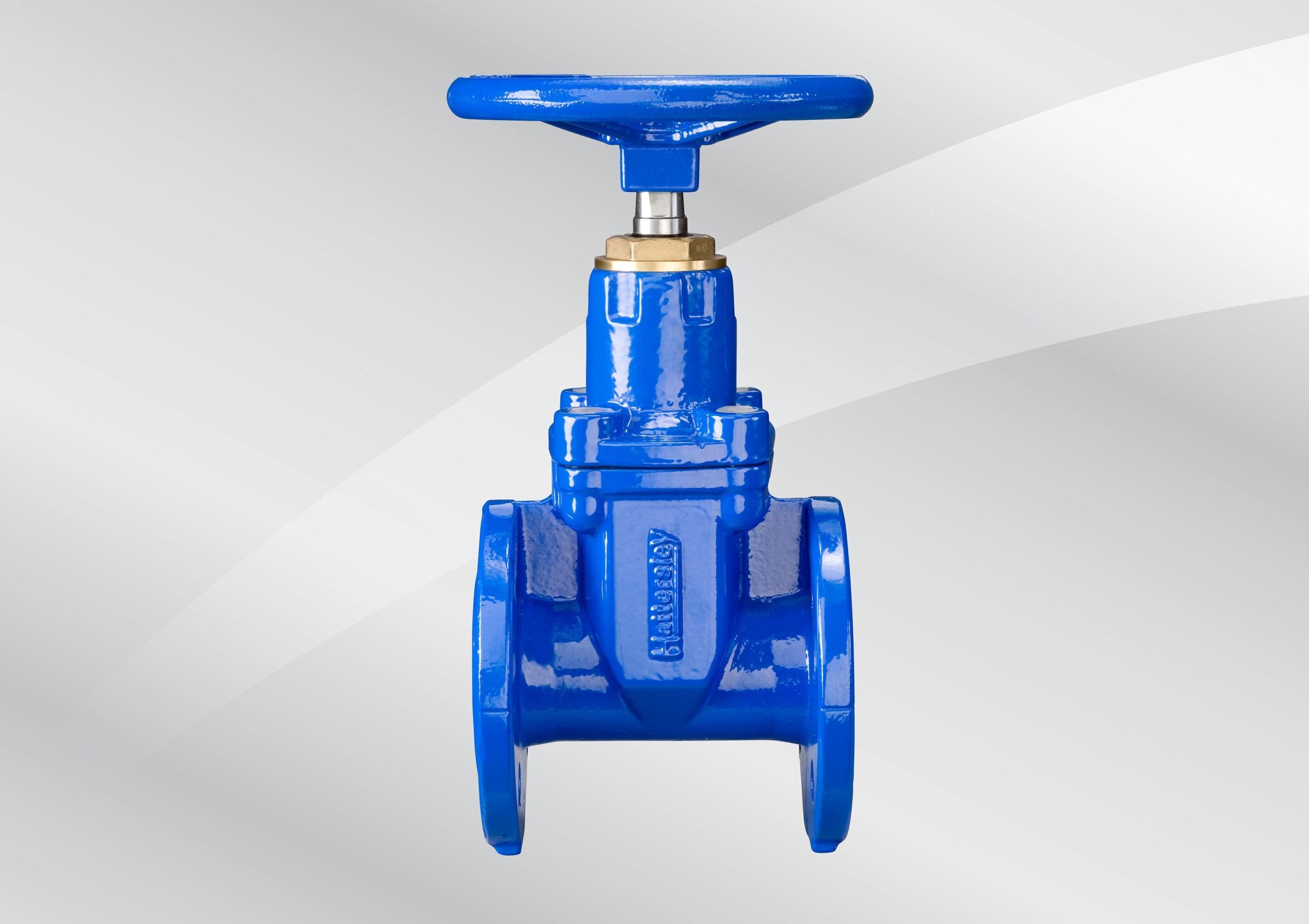

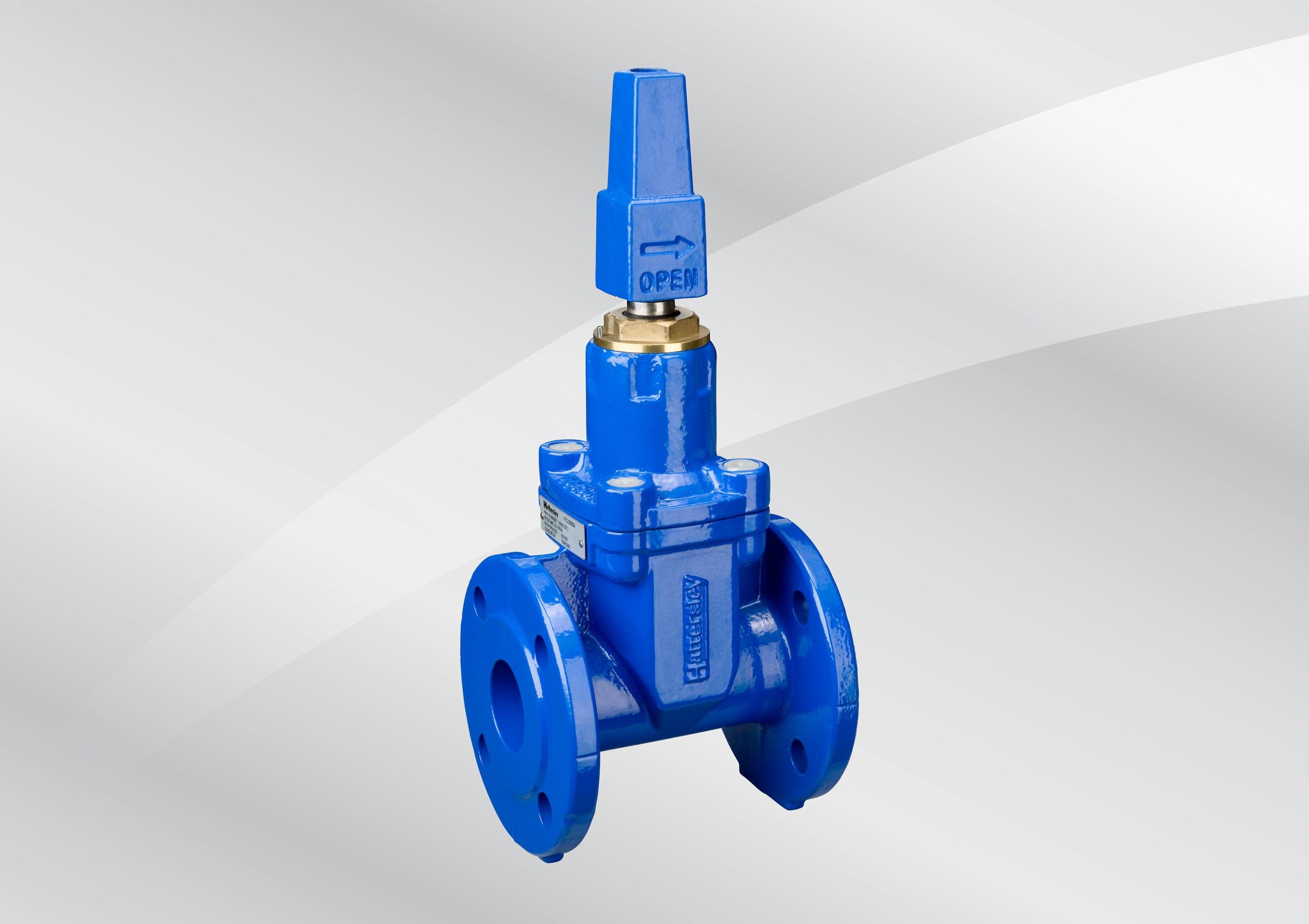

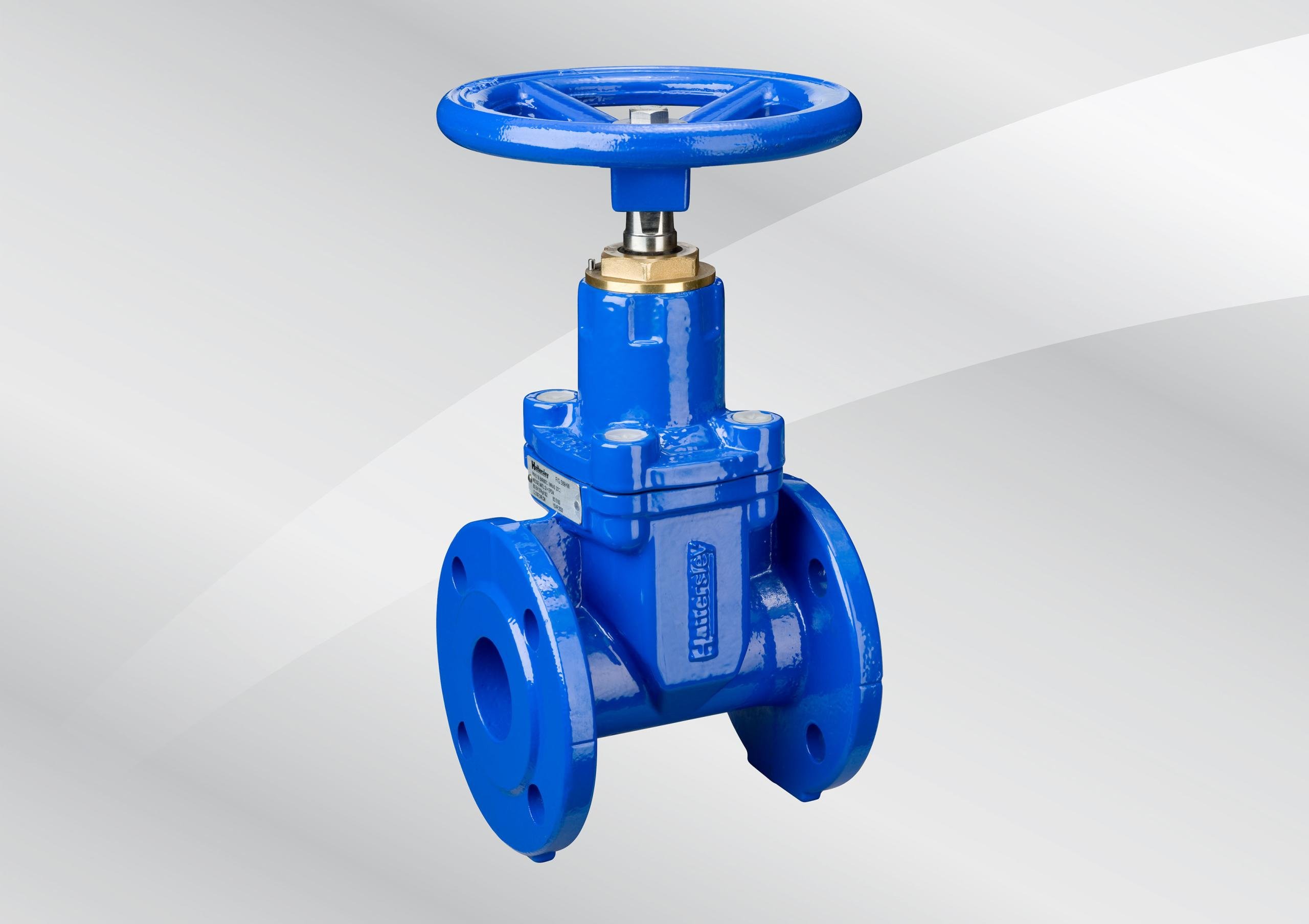

  • Handwheel (Fig. 589 HW) or Stem Adaptor (Fig. 589 SA) version available
  • WRAS approved product up to 80°C. Components and coating WRAS approved to 85°C.
  • WRAS listed fusion bonded epoxy coating, minimum thickness 250 micron and corrosion resistant construction
  • Manufactured from Ductile Iron BS EN1563 EN-GJS-500-7 for improved durability
  • Ductile iron disc encapsulated with EPDM WRAS elastomer for improved isolation
  • 5 internal O-Rings and 1 additional wiper seal preventing ingress and improving functional versatility.
  • WRAS Approved Product

Product Overview

Please refer to Datasheet for full technical information

Size
50mm – 300mm
Pressure rating
PN16
Temperature Rating
0°C to 85°C (WRAS approved to 80°C)
End Connnections
Flanged to BS EN 1092-2
Test pressure
Shell: 24 Bar
Seat: 17.6 bar
Material
Ductile Iron
×

Please select from the files below
