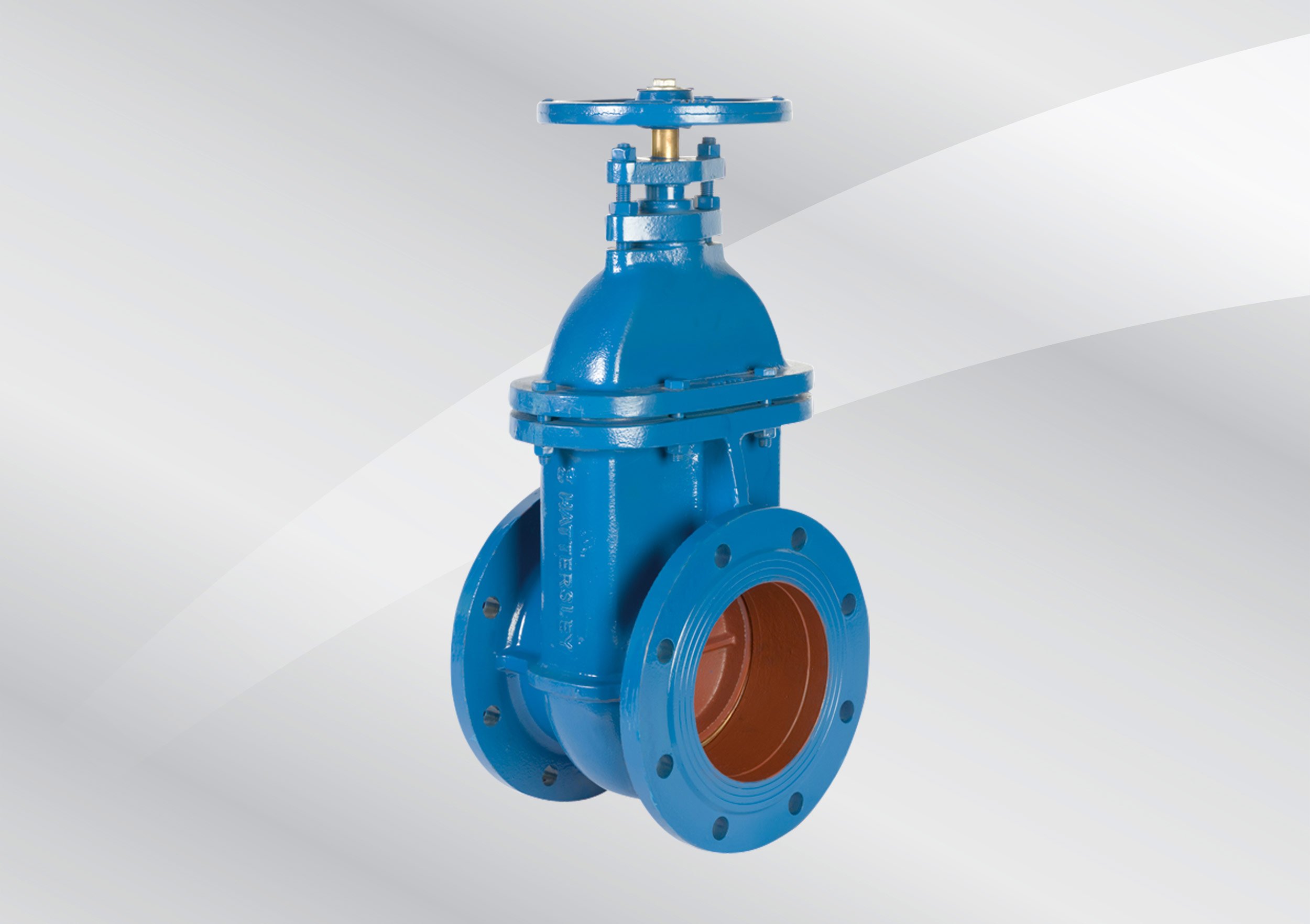

Fig. M549

Gate Valves – Cast Iron – Available until stocks last

in the a
  • Cast iron with integral flanges.
  • Inside screw pattern with non-rising stem.
  • Ideal for use for non-corrosive and reasonably clean services.
  • Seat rings are threaded and securely fixed into the body.
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
50mm to 300mm
Pressure rating
PN6
End Connnections
Flanged to BS EN 1092-2 PN6
Test pressure
Shell: 9 bar
Seat: 6.6 bar
Material
Ductile Iron
Pressure / Temperature
6 bar at -10 to 120ºC
BS EN 1171 PN6
5.4 bar at 150ºC

Product Downloads

Datasheet
Installation Manual
BIM
Additional Files
