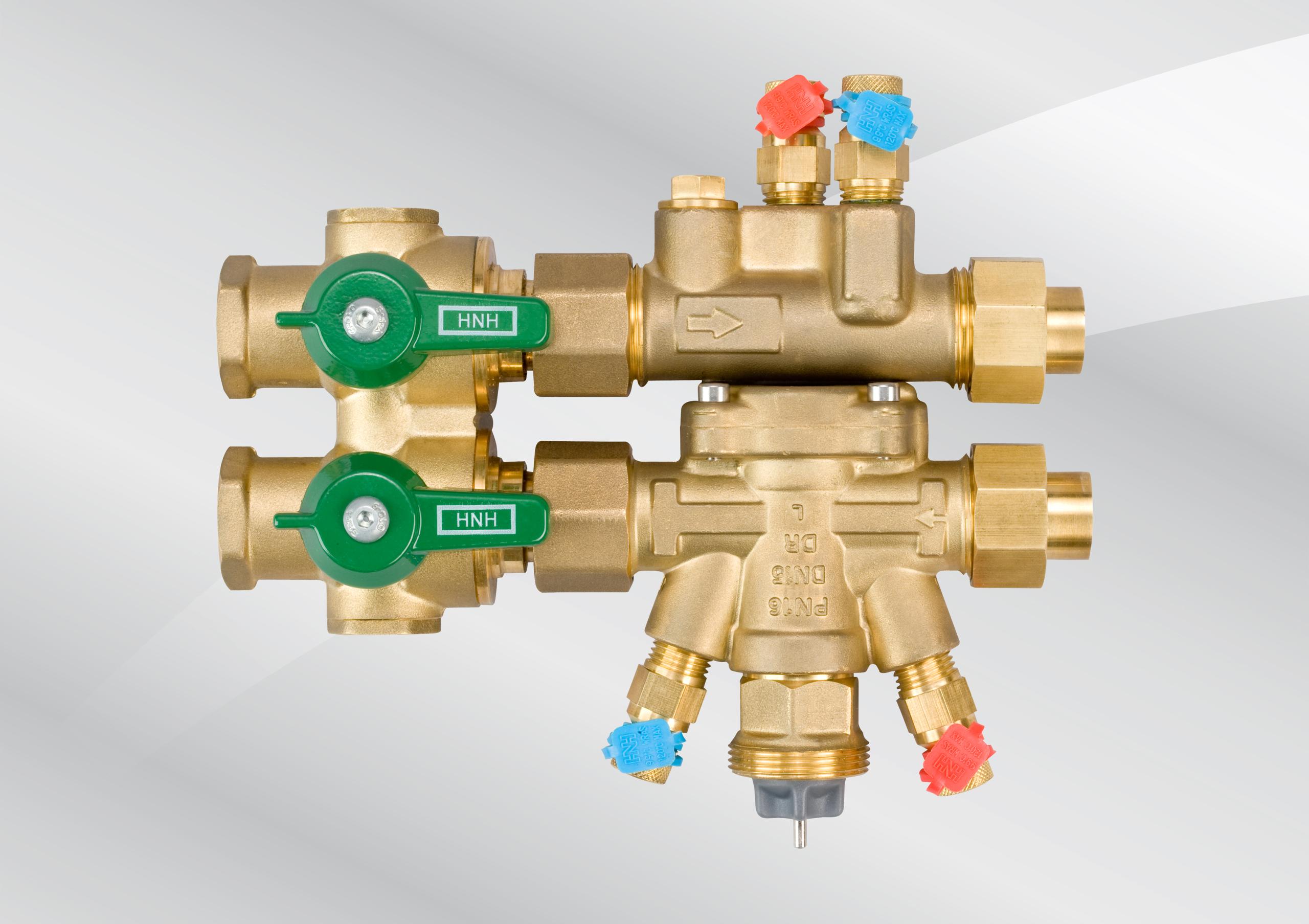

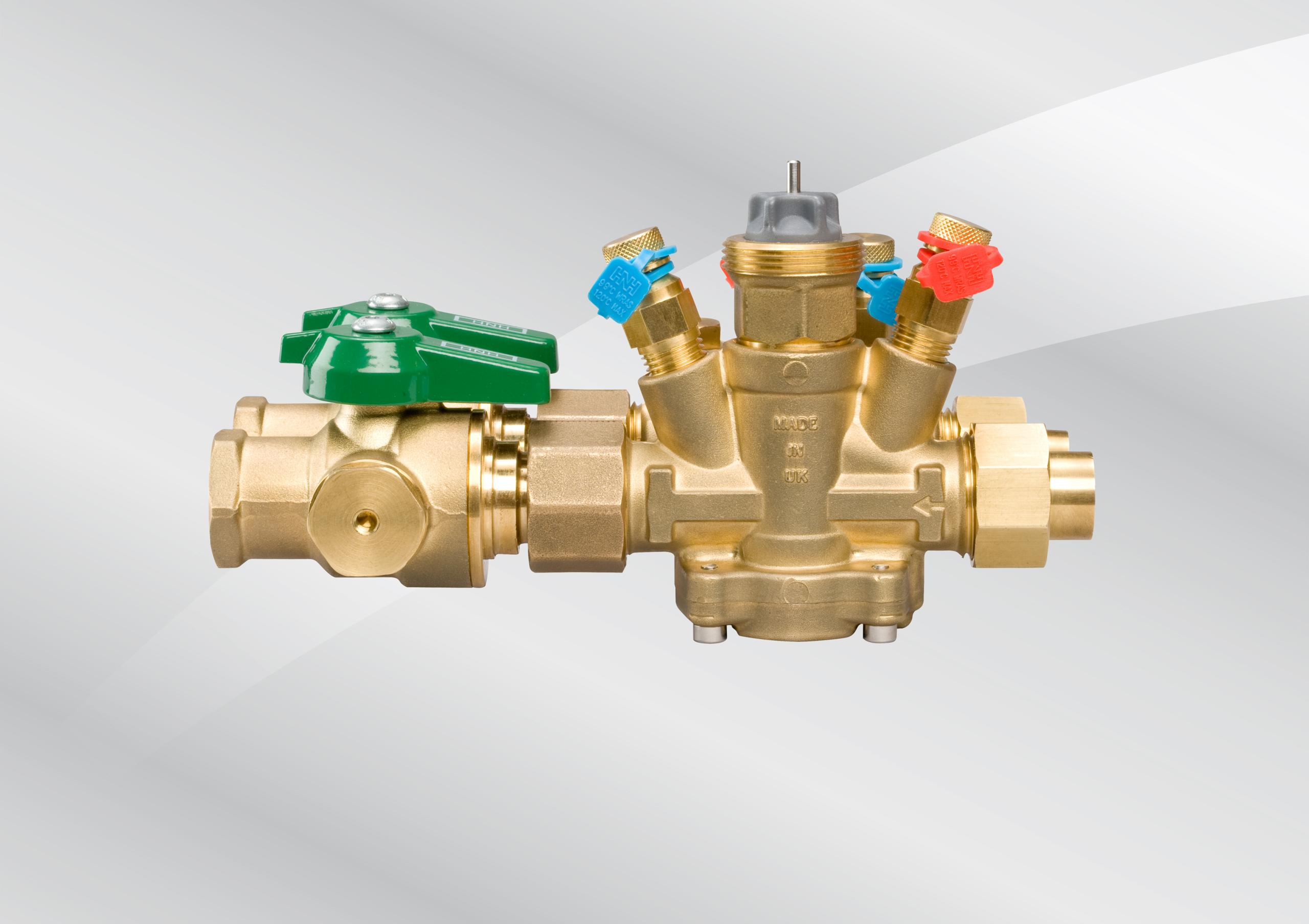

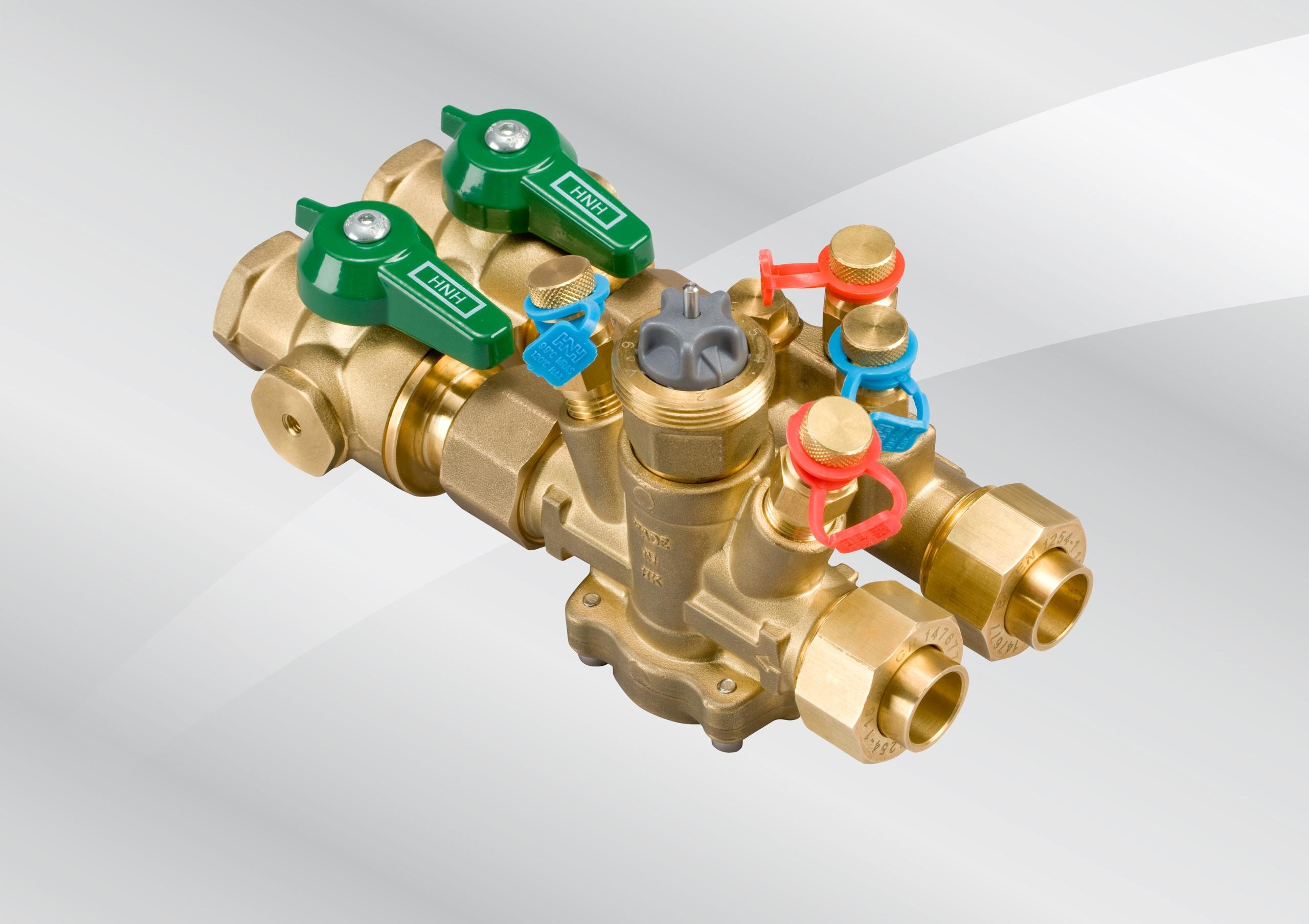

Fig. HD40BSR1B

Hook-Up Elite Prime with PICV, FMD & Drain Port

  • Compact design, with flow and return legs at equal lengths, for simple direct mounting onto terminal unit
  • Fitted with Elite Prime with a wide range of settable flows to suit all applications
  • Includes Venturi metering station for improved accuracy and pressure drop recovery
  • All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1. This provides reassurance of performance and accuracy within each valve
  • Bypass unit with integrated 3-way isolation valves
  • Integrated dial allowing for calibrated setting of the PICV with integrated test points allowing forΔP verification

More about the Hook-Up Elite Prime

  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
DN15/15
Body Size
40mm
Pressure rating
PN16
Temperature Rating
0°C to 90°C
Operating Pressure
20 - 400kPa (DN15 LF)
25 - 400kPa (DN15 SF)
40 - 400kPa (DN15 HF)
End Connnections
H-Body - BSP Taper
Terminal end - Compression/Solder
×

Please select from the files below
