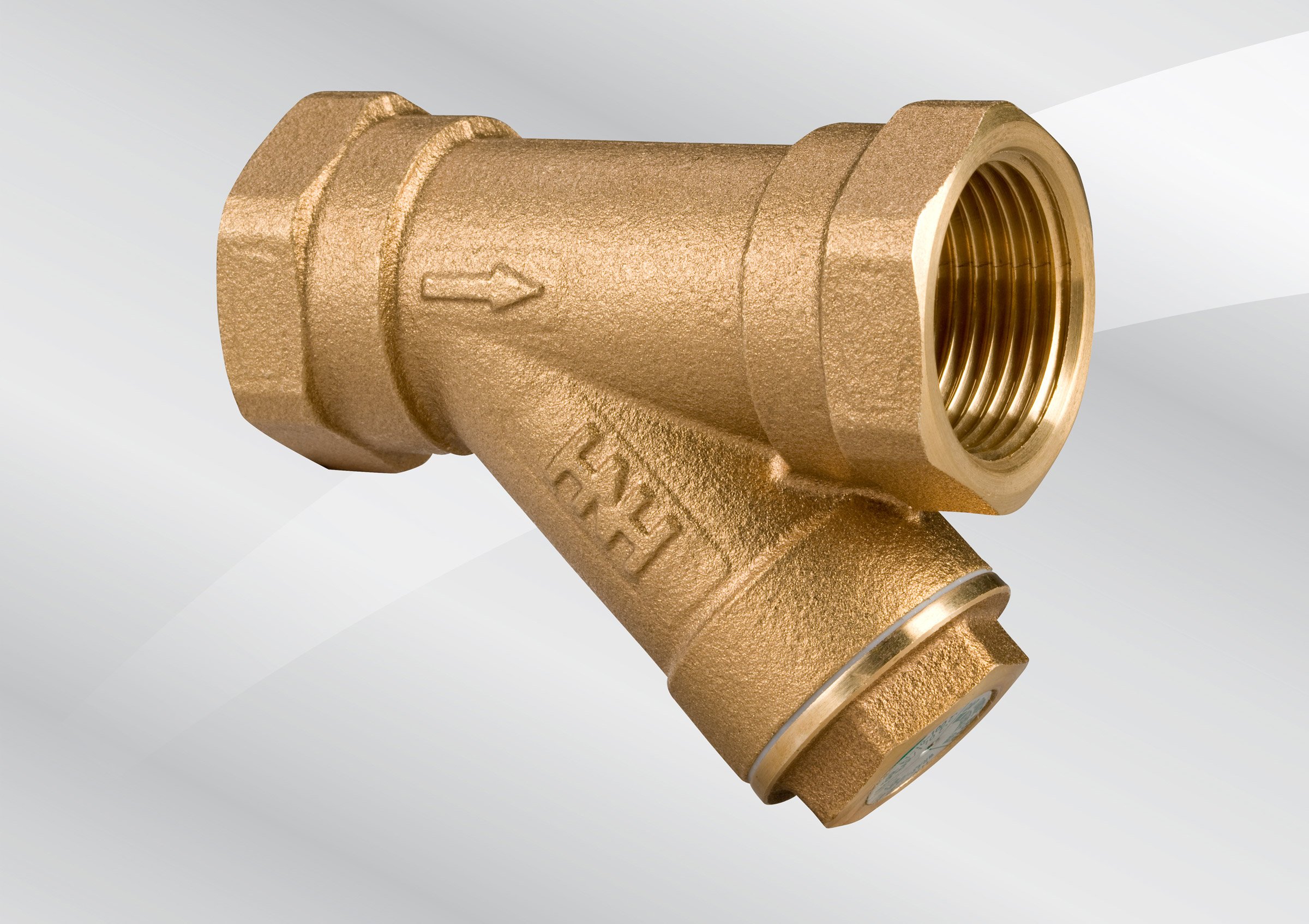

Fig. 827

Strainer – Bronze

  • Hattersley strainers will help eliminate the problems caused by foreign matter within piping systems
  • Robust and high quality bronze body
  • Streamlined flow contours minimise pressure drop
  • Compact design with short face to face
  • Perforated stainless steel screen
  • Captive asbestos-free non-stick gasket
  • WRAS Approved Product

Product Overview

Please refer to Datasheet for full technical information

Pressure rating
Temperature Rating
20 bar at -10°C to 100°C. 9 bar at 180°C. For WRAS approval -10°C to 85°C
End Connnections
Threaded to BS EN 10266 (BS 21 Taper ISO R7) & B1.20.1 ANSI. Use suffix AT for American threads. )
