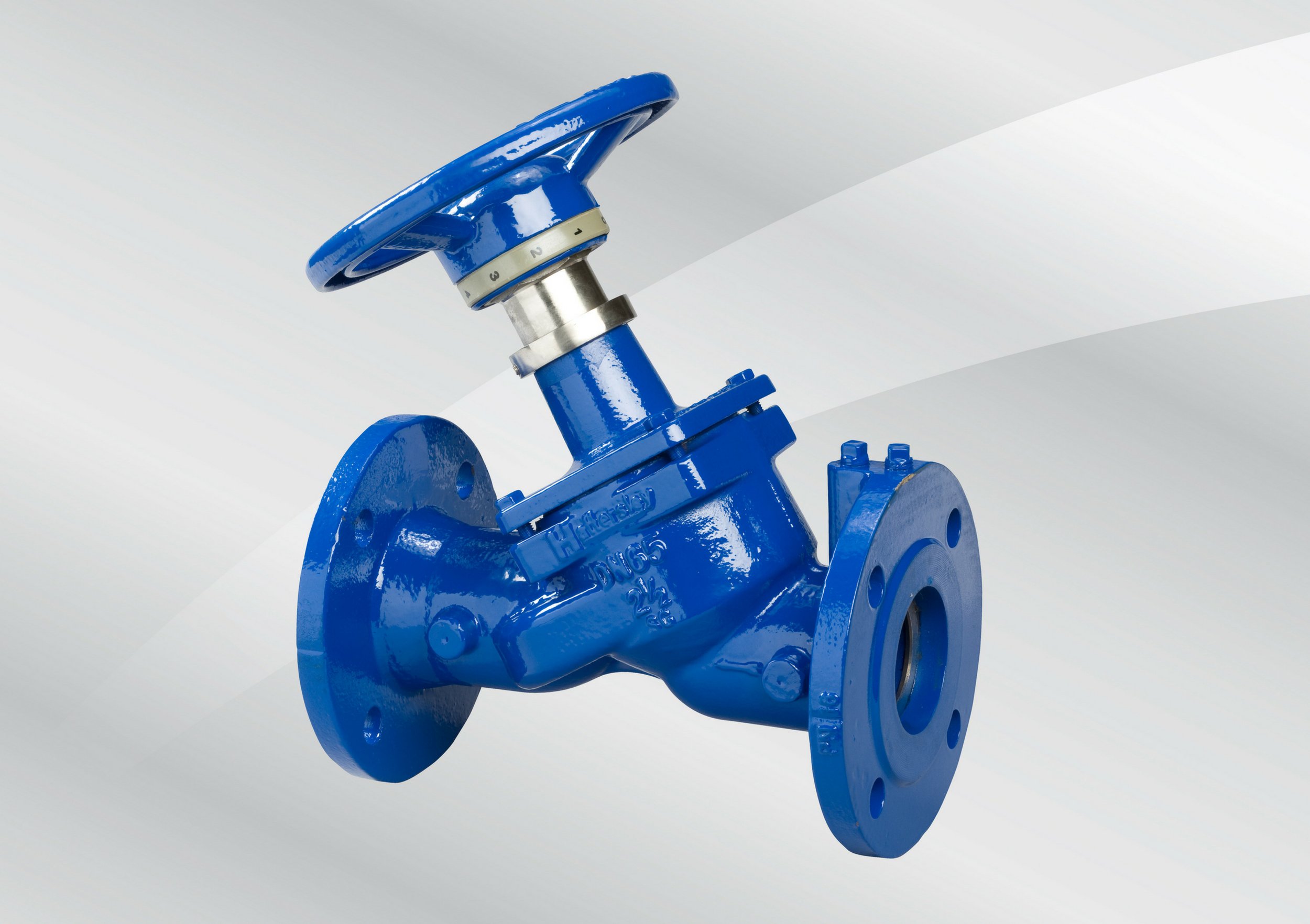

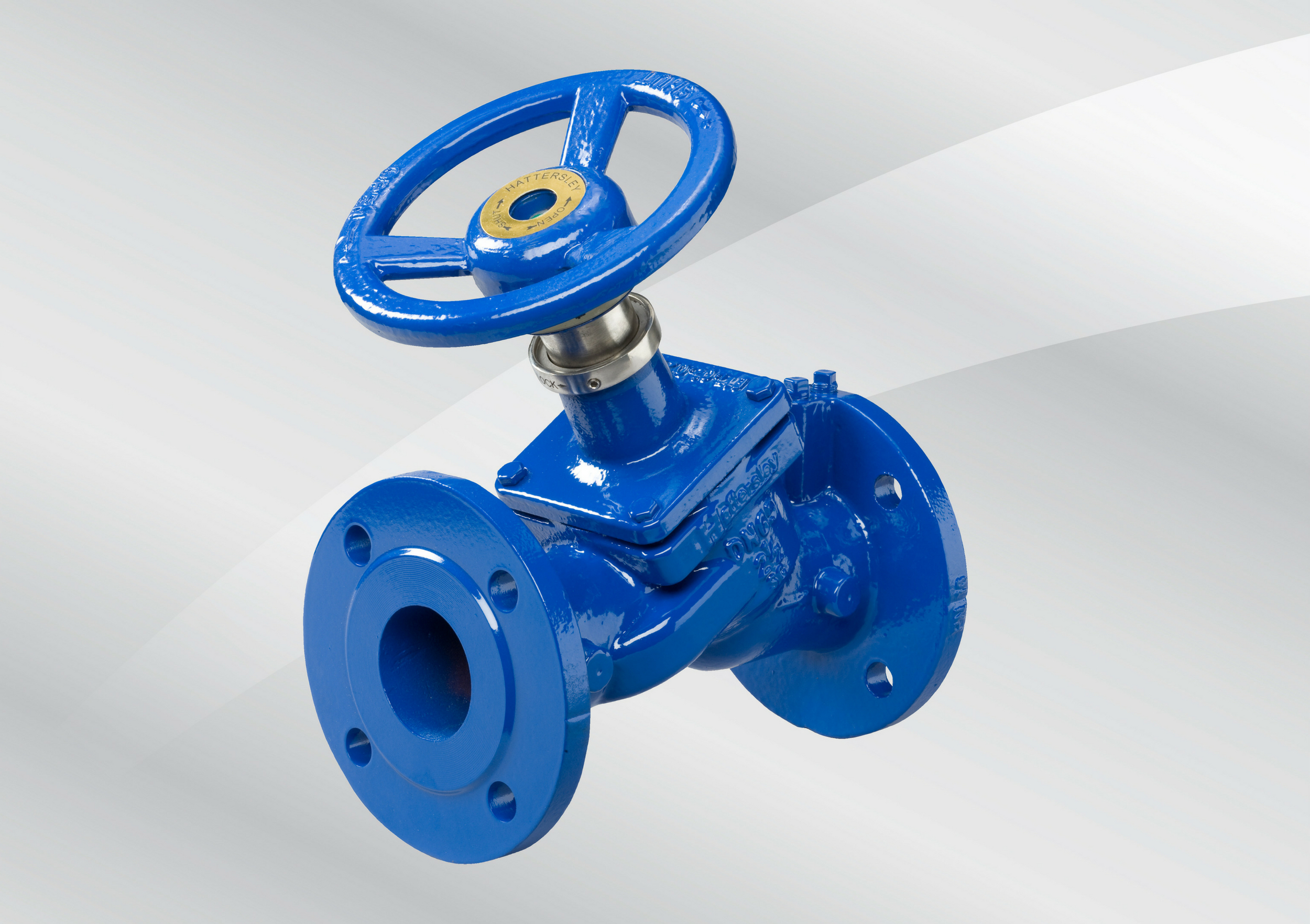

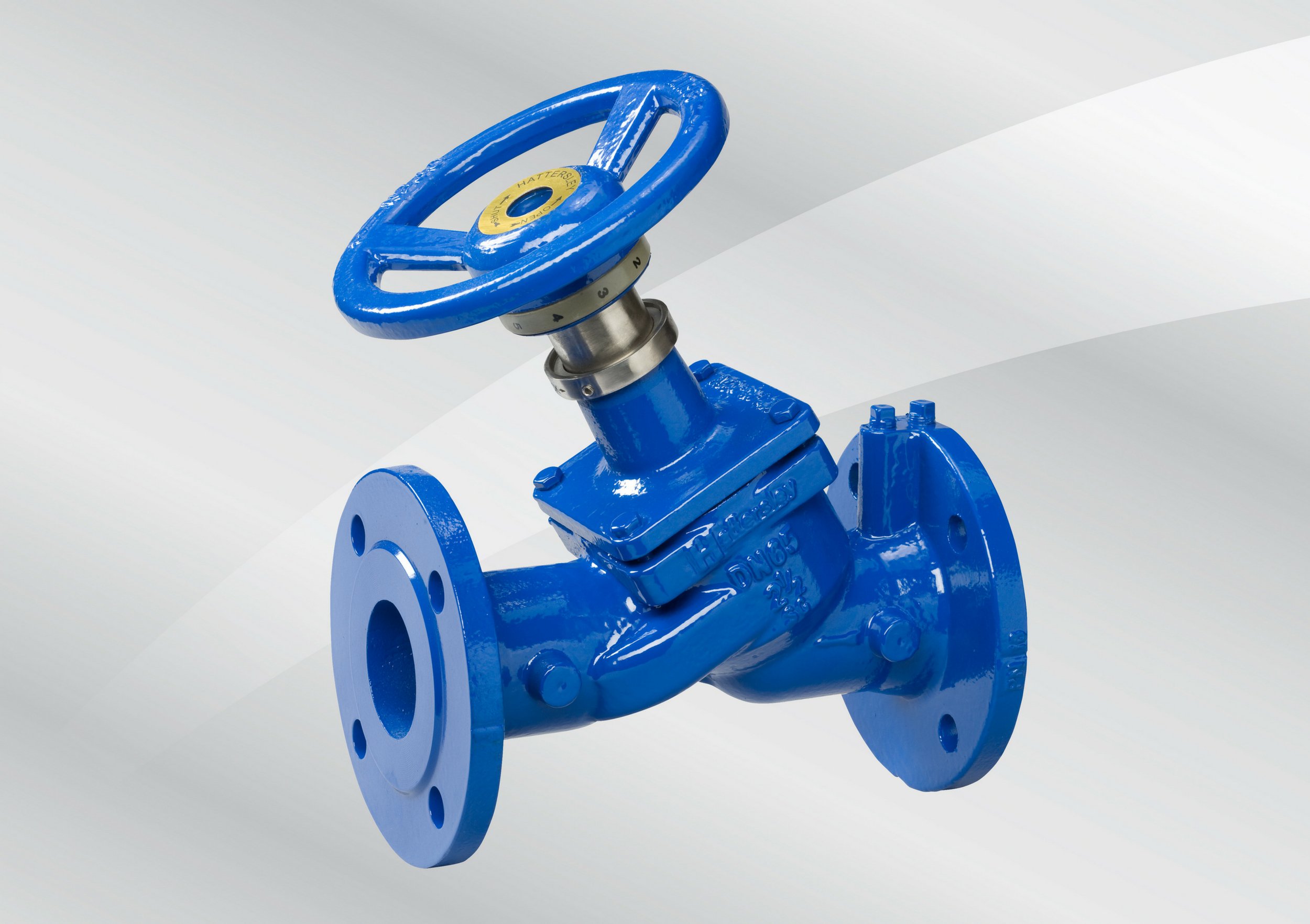

Fixed Orifice Double Regulating Valve - Ductile Iron
Fig. MH739 & MHA739
Fig. MH739 & MHA739
Features & Benefits
- Single unit Y-Pattern globe valves incorporating an integral orifice plate to form a fixed orifice flow measurement unit with regulation and isolation capacity
- The Double Regulating feature allows the valve to be used for isolation and to be reopened to its pre-set position to maintain required flow rate
- Accuracy of flow measurement is ±5% at all open positions of the valve in accordance with BS 7350: 1990
- Primarily used in injection or other circuits requiring a double regulating valve for system balancing
- External spray epoxy coated for improved durability
* Please refer to Datasheet for full technical information
Size
DN65 to DN300
Pressure Rating
PN16
Temperature Rating
-10 to 120°C
Product Material
Ductile Iron
End Connections
Please see datasheet for details
