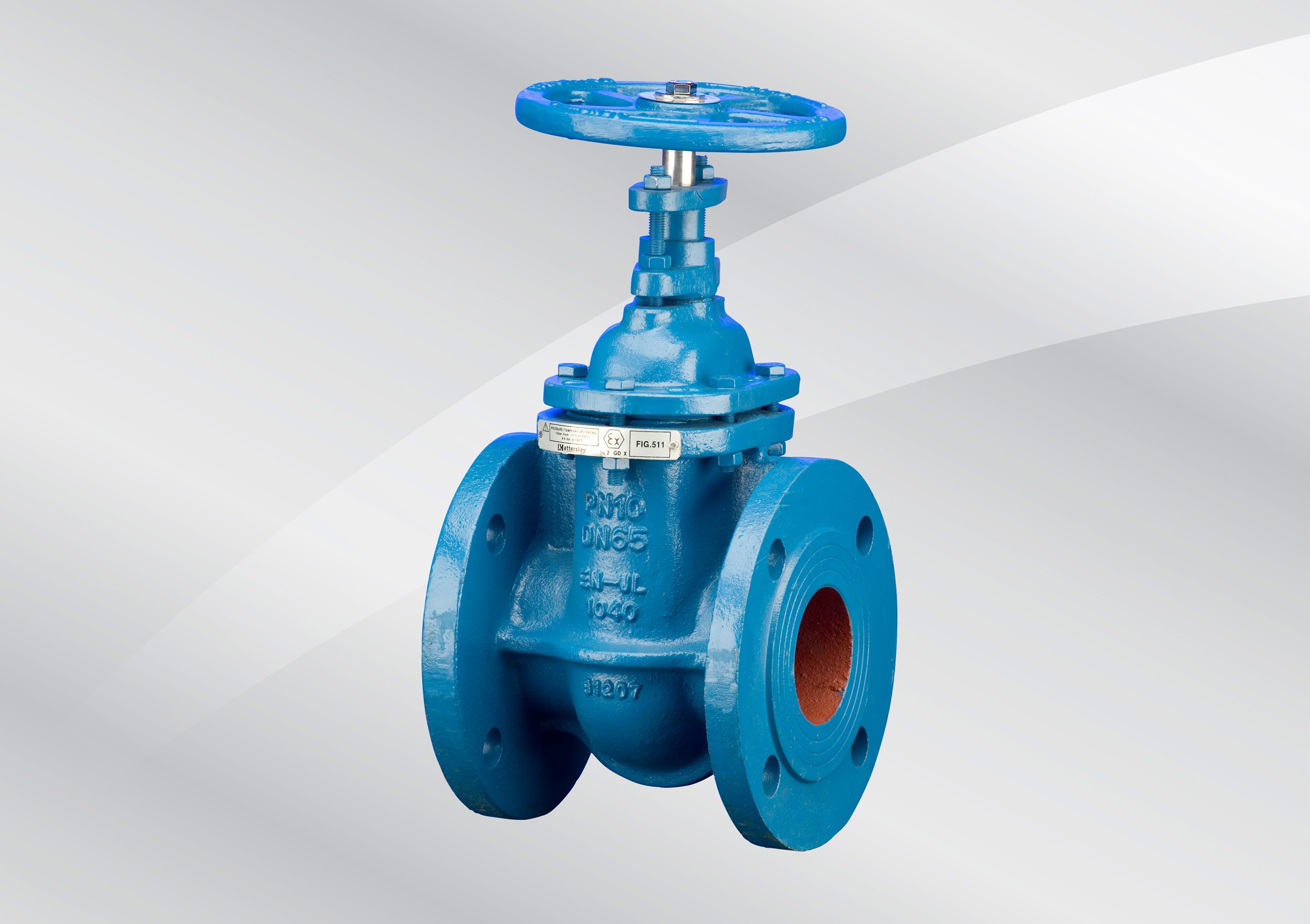

Fig. M511

Gate Valves – Cast Iron – Available until stocks last

in the a
  • Cast iron with integral flanges.
  • Inside screw pattern with non-rising stem.
  • Ideal for use for non-corrosive and reasonably clean services.
  • Seat rings are threaded and securely fixed into the body.
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
50mm to 150mm
Pressure rating
PN10
End Connnections
Flanged to BS EN 1092-2 PN10
Material
Cast Iron
Test pressure
Each valve is individually hydrostatically tested to BS EN 12266 Part 1 at the following test pressures
Seat: 11 bar
Shell: 15 bar
Pressure / Temperature
7.4 bar at 230ºC
10 bar at -10 to 120ºC
BS EN 1171 PN10

Product Downloads

Datasheet
Installation Manual
BIM
Additional Files
