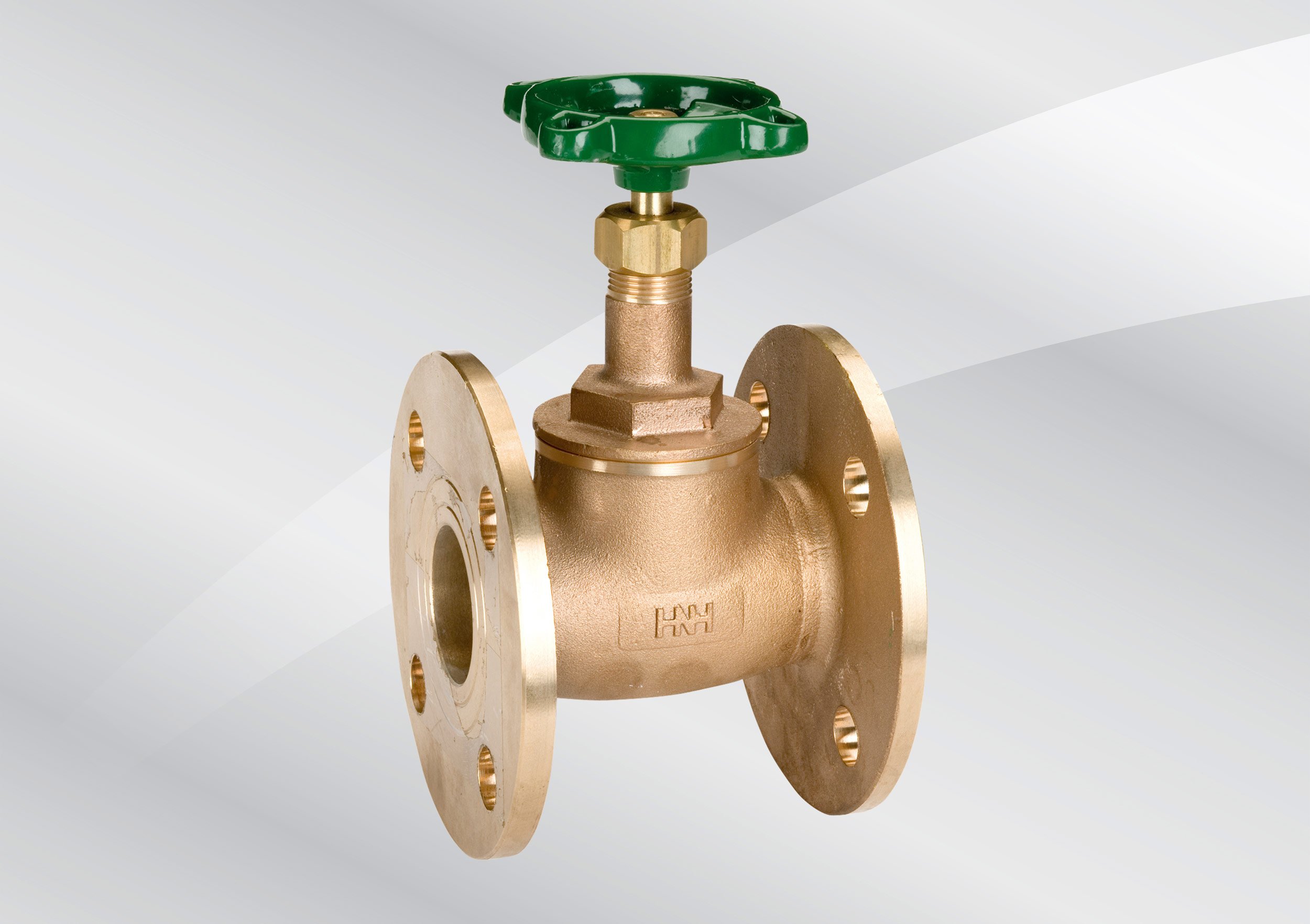

Fig. 17

Globe Valves – Bronze

in the a
  • High quality bronze body with robust spherical shape.
  • Rising stem and screwed bonnet.
  • Assures accurate flow regulation/ control.
  • Integral flanges require no pipe threading.

Product Overview

Please refer to Datasheet for full technical information

Size
15mm to 50mm
Pressure rating
PN16
End Connnections
Flanged to BS EN 1092-3
Test pressure
Shell: 24 bar
Seat: 17.6 bar
Material
Bronze
Pressure / Temperature
BS 5154: 1991 PN16 Series B
7 bar at 170ºC
16 bar from -10 to 100ºC
