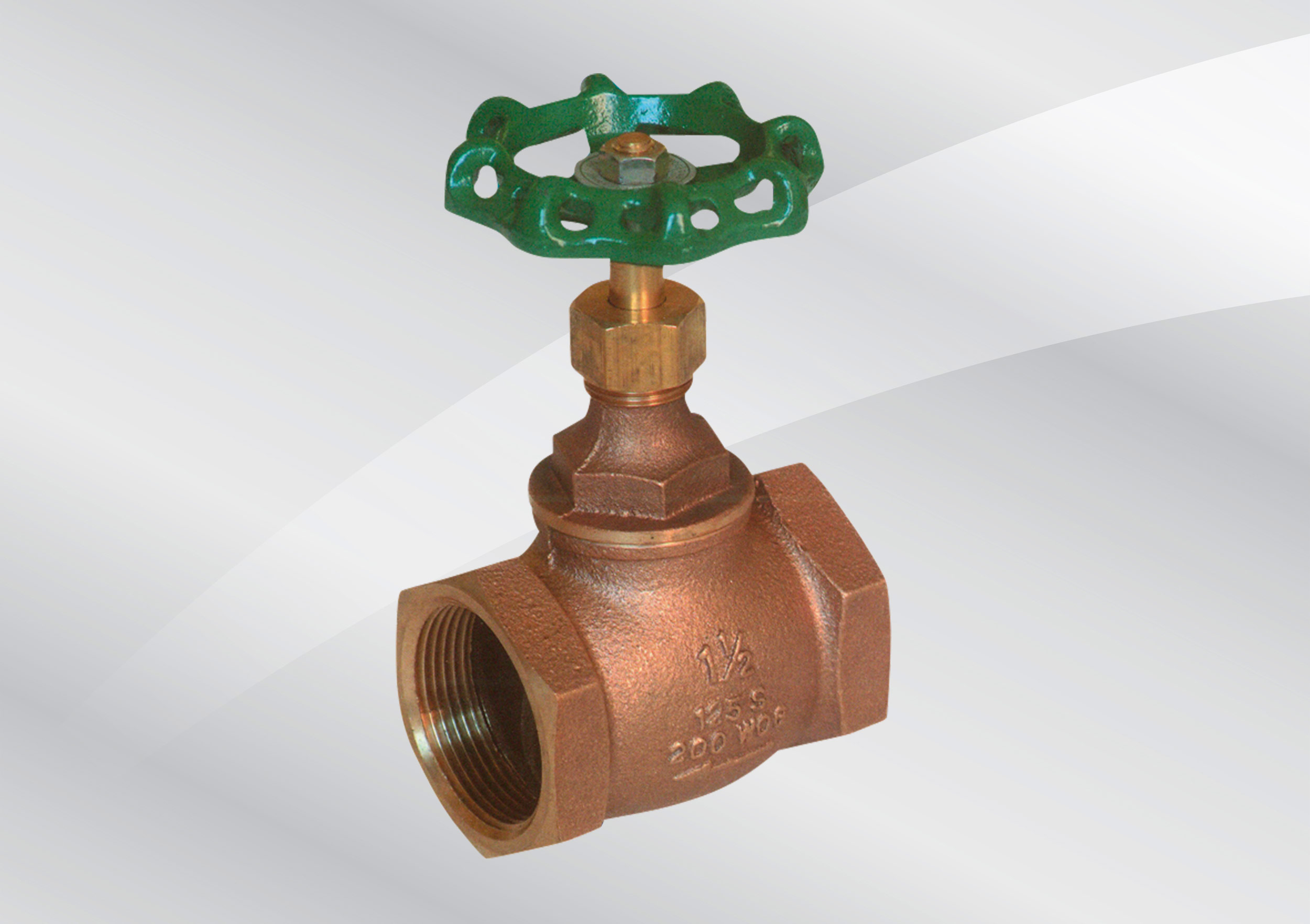

Fig. C4

Globe Valves – Bronze

in the a
  • High quality bronze body with robust spherical shape.
  • Rising stem and screwed bonnet.
  • Assures accurate flow regulation/control.
  • Suitable for high pressures up to 16 bar.

Product Overview

Please refer to Datasheet for full technical information

Size
1/2" to 2"
Pressure rating
PN16
End Connnections
Taper thread BS EN 10226
Material
Bronze
Test pressure
Each valve is individually hydrostatically tested to BS 5154 at the following test pressures.
Shell: 24 bar
Seat: 17.6 bar
Pressure / Temperature
7 bar at 170 C
16 bar from -10 to 100 C
