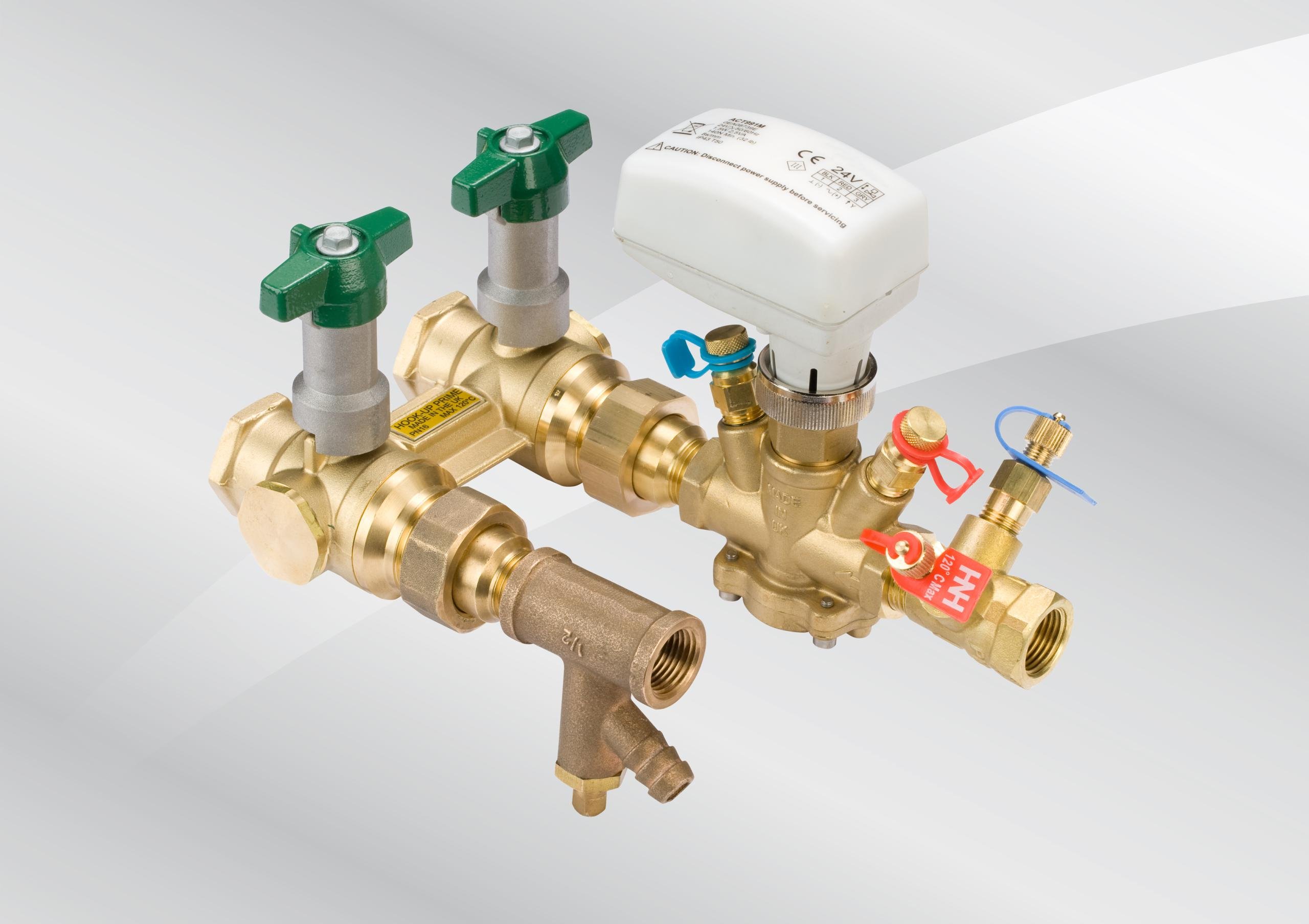

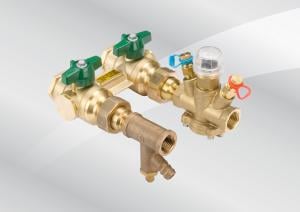

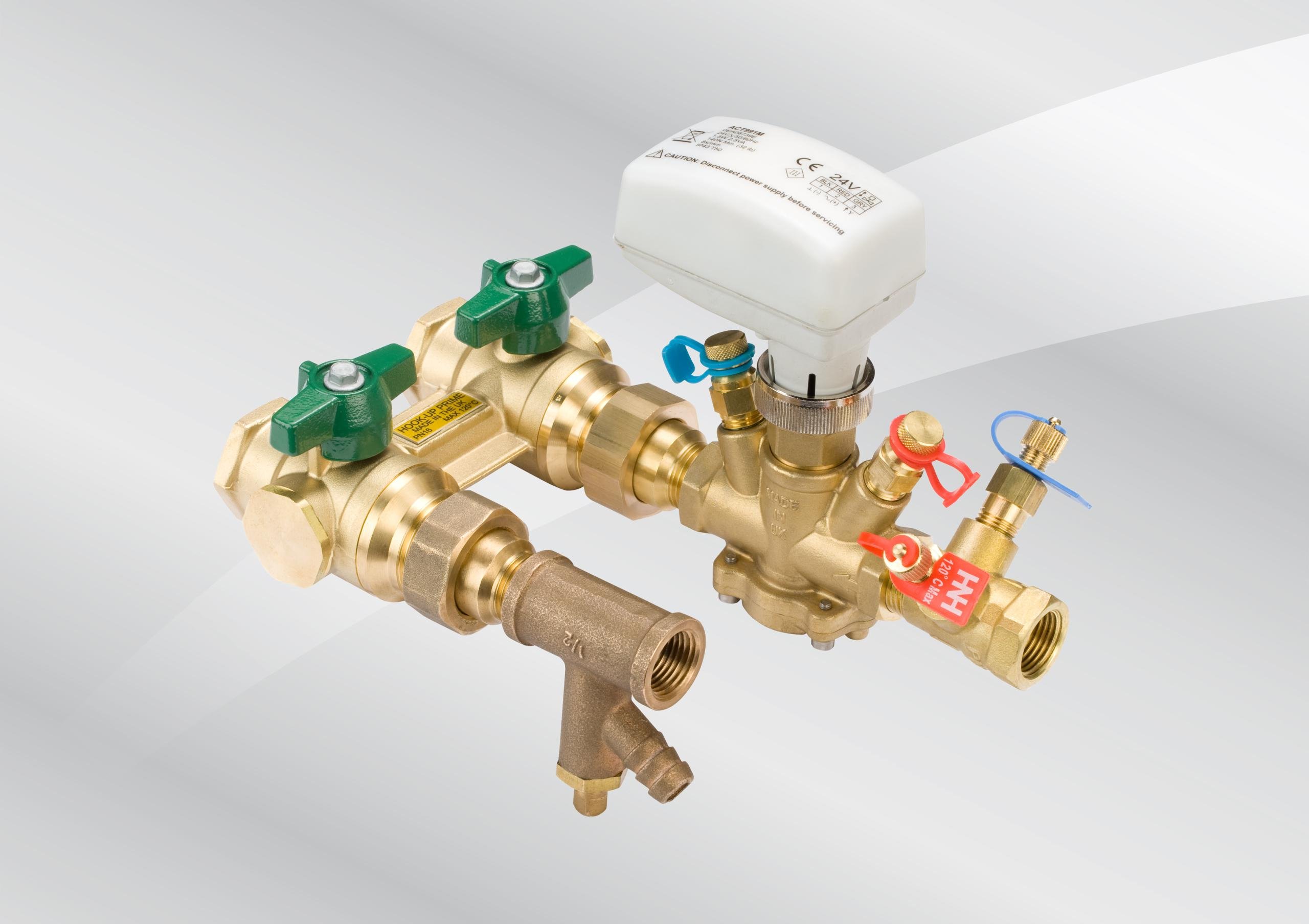

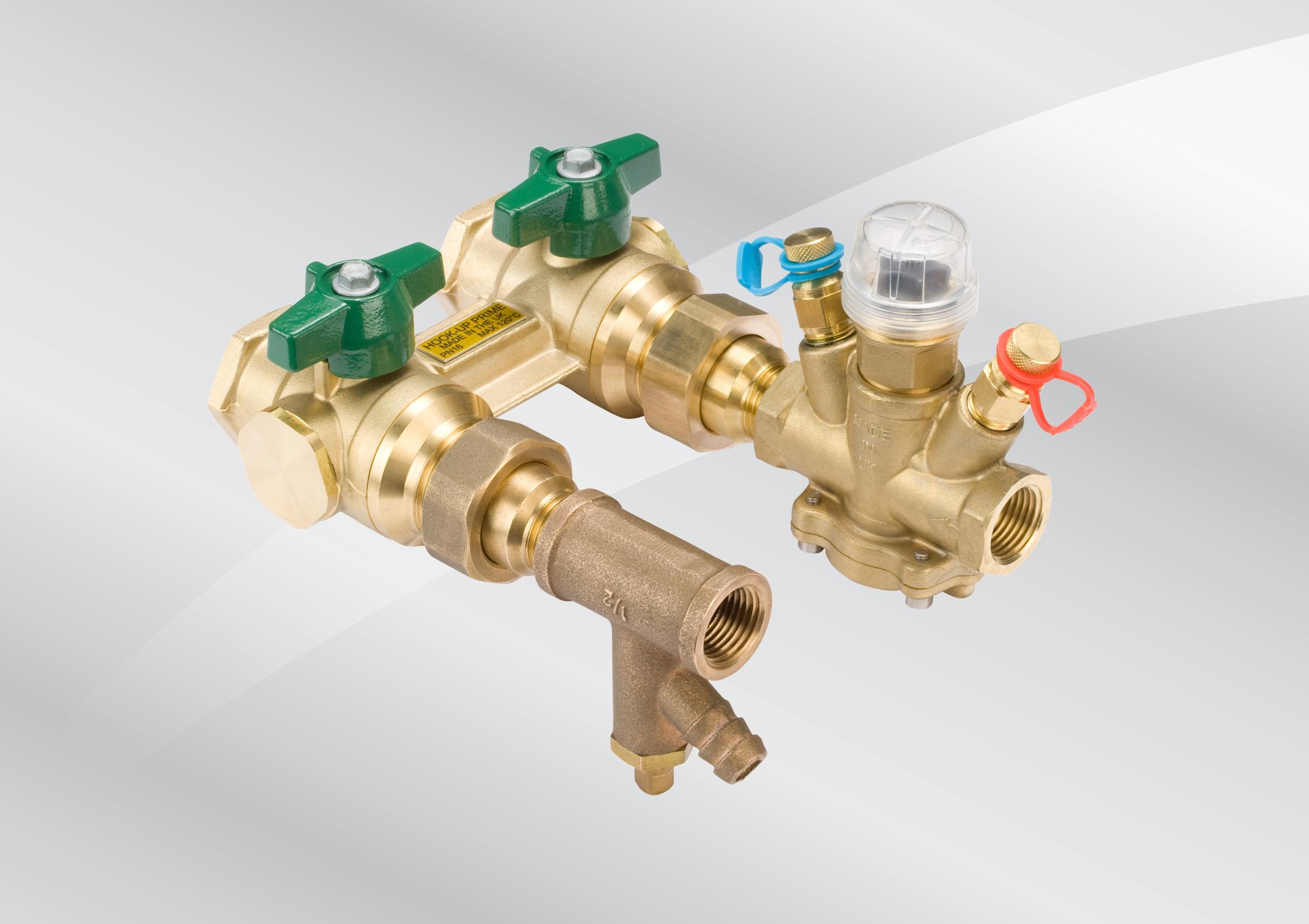

Fig. EP701P & Fig. EP701PF

Hook-Up Elite Prime with PICV & Drain

  • Compact, pre-fabricated unit – now available with Elite Prime PICV with a wide range of settable flows to suit all applications
  • All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1. This provides reassurance of performance and accuracy within each valve
  • Provides accurate flow rates & differential pressure control as well as flow measurement (Fig. EP701PF), system flushing and isolation
  • Fully assembled & factory tested unit reduces installation time, costs and specification risks
  • DZR H Body tested to 3.1X Design Working Pressure (DWP) during development for design robustness and tested to EN12516-2 to comply with the Pressure Equipment Directive (PED)

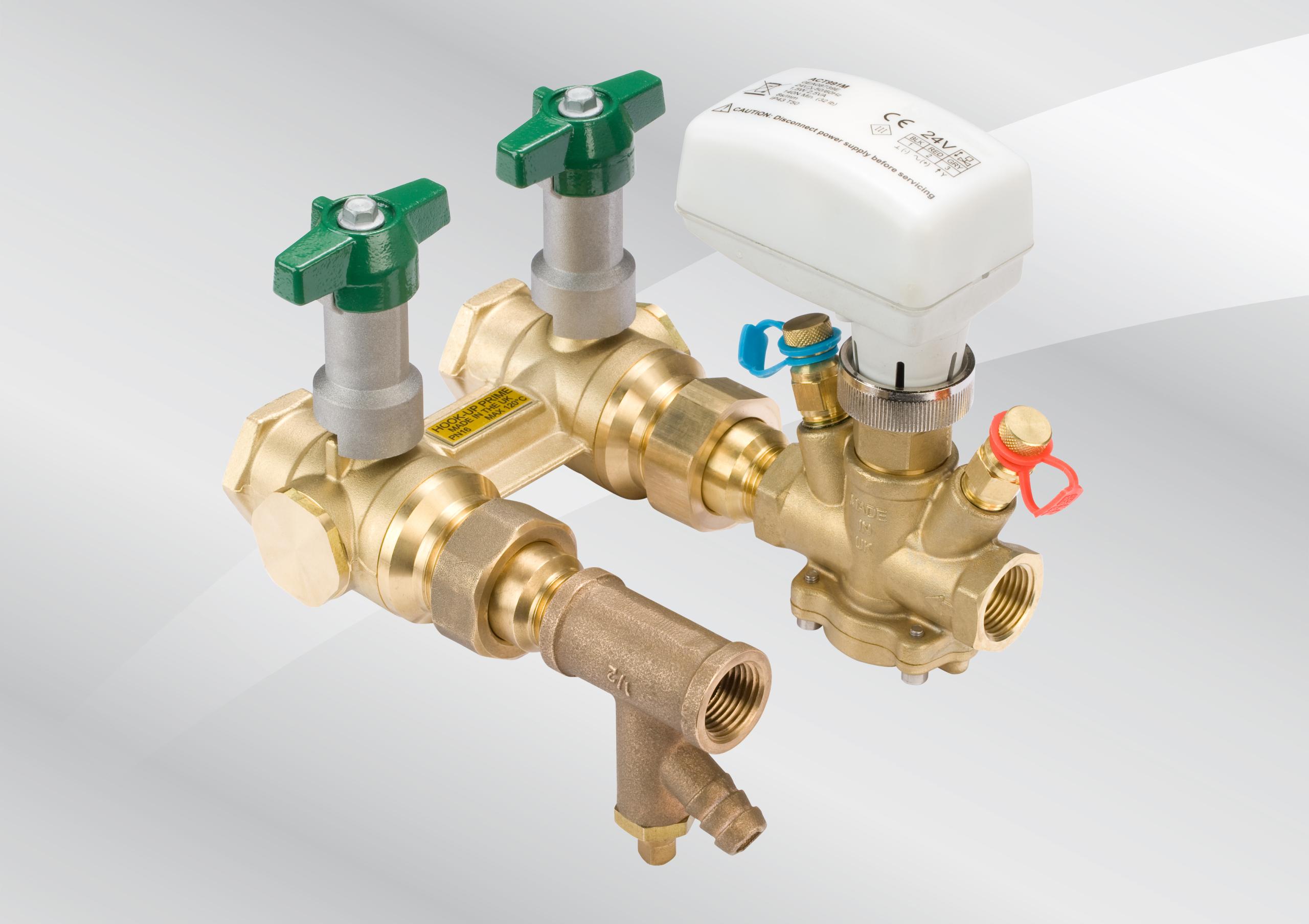

  • Available with and without extension stems to suit customer specification
  • On-Off, modulating or feedback actuators are available separately to match specification
  • Available in 400kPa & 800kPa rated variants
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
DN15/15 to DN25/25
Body Size
80mm
Pressure rating
PN16
Temperature Rating
-10 to 100°C
End Connnections
Flushing bypass body - BSP Parallel
Strainers & Tailpieces - BSP Taper
×
