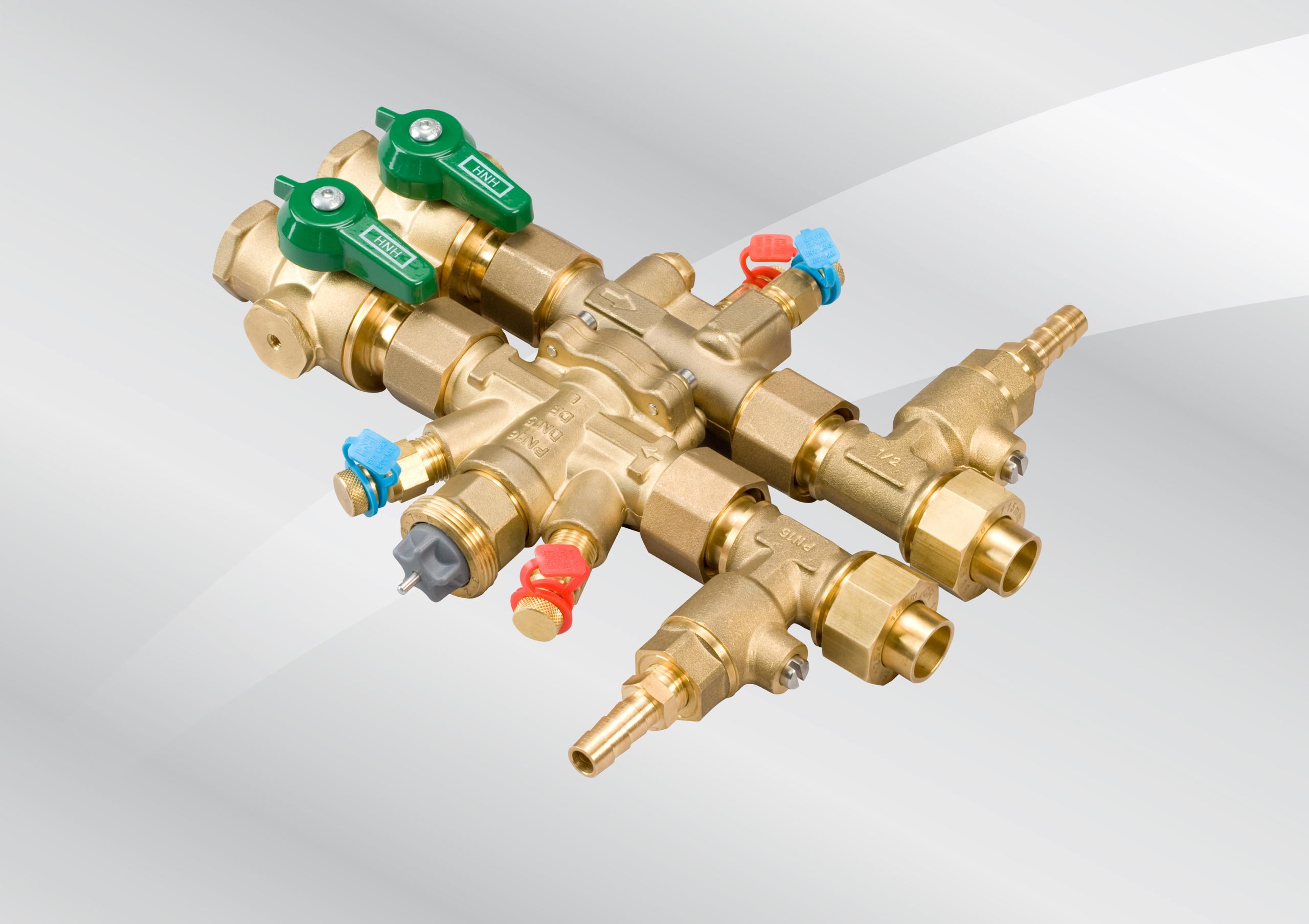

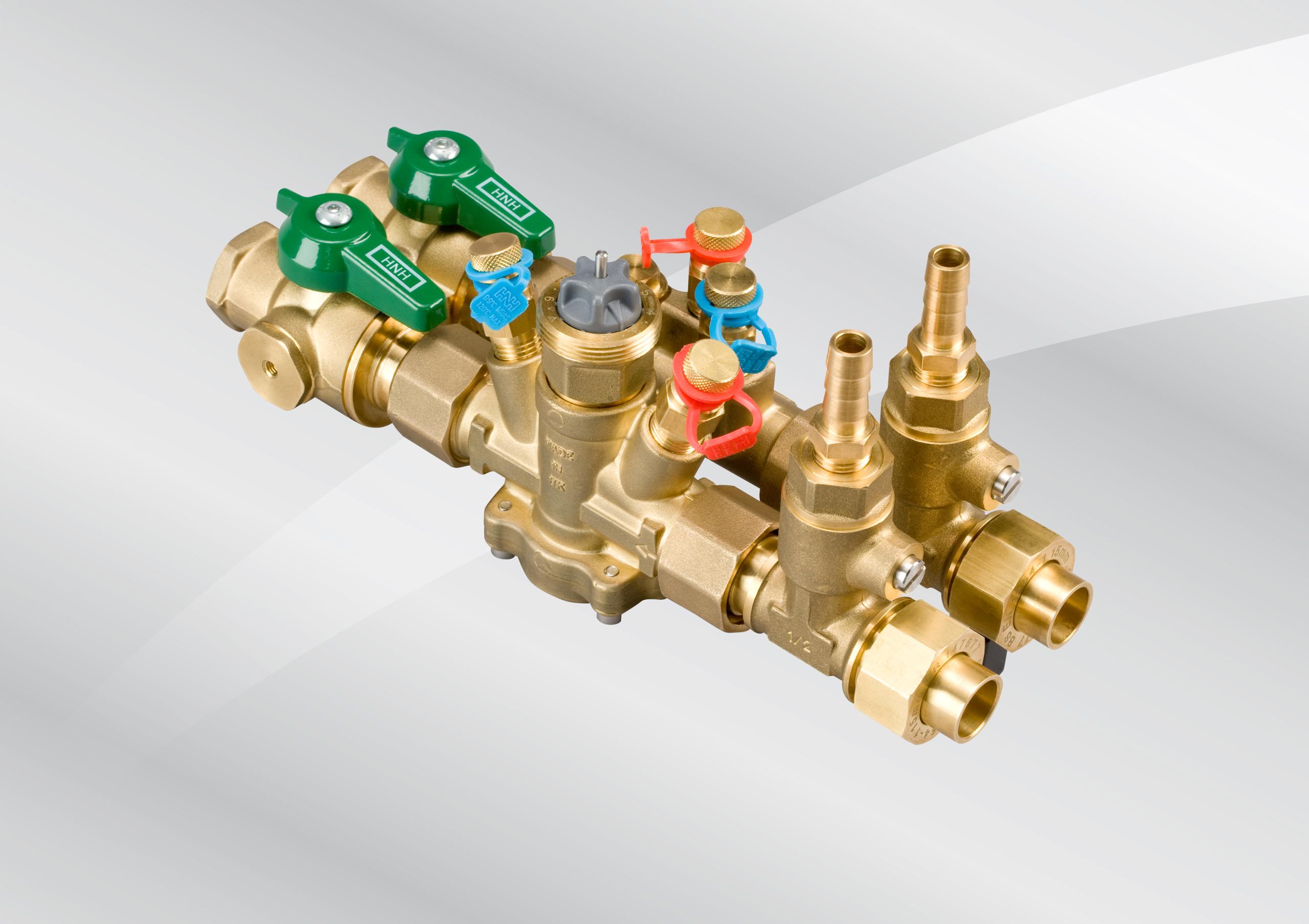

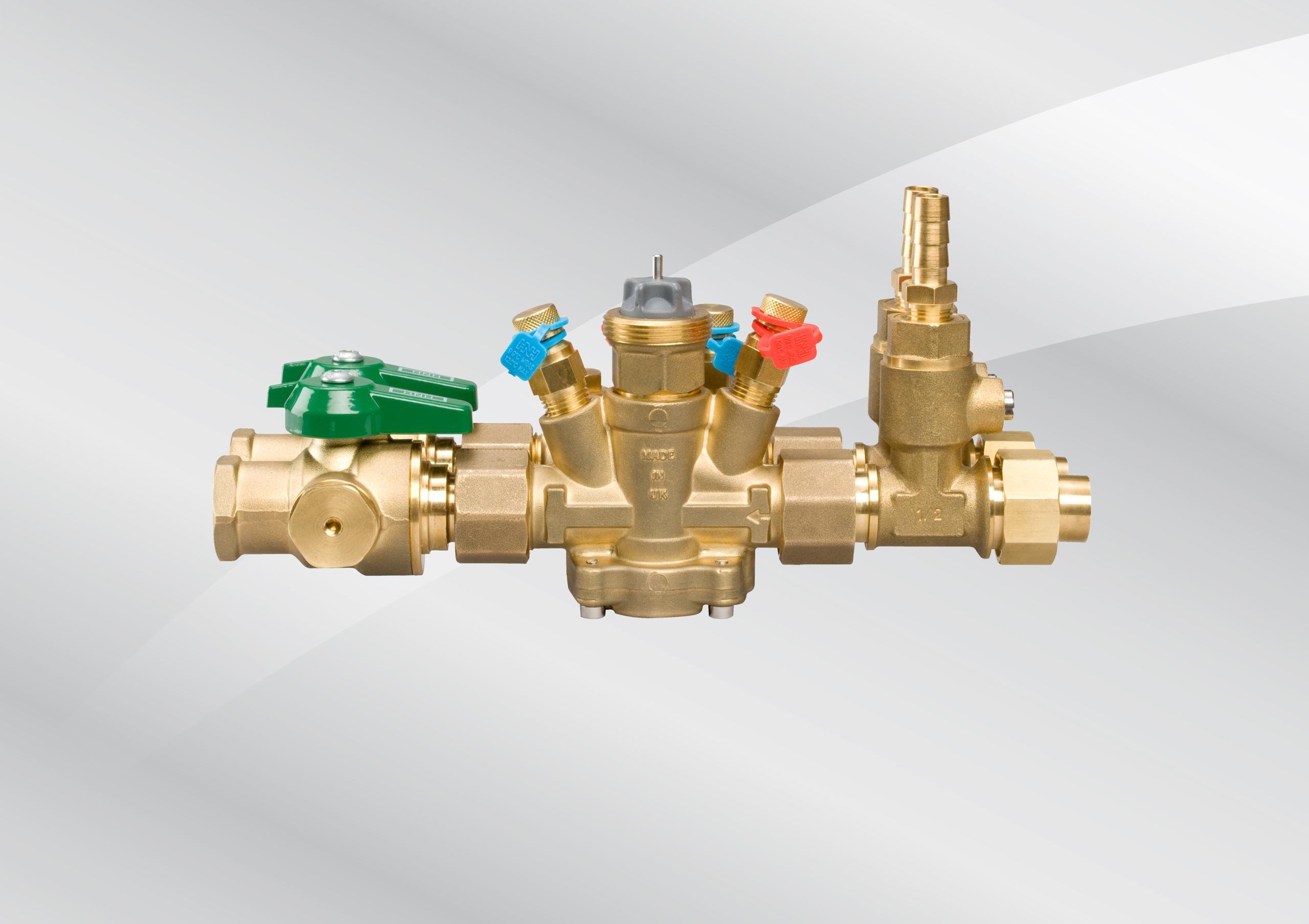

Fig. HD40BSR2A

• Compact design, with flow and return legs at equal lengths, for simple direct mounting onto terminal unit
• Fitted with Elite Prime with a wide range of settable flows to suit all applications
• Includes Venturi metering station for improved accuracy and pressure drop recovery
• All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1. This provides reassurance of performance and accuracy within each valve
• Bypass unit with integrated 3-way isolation valves
• Flushing valves on flow and return – in accordance with BSRIA BG29
• Integrated dial allowing for calibrated setting of the PICV with integrated test points allowing for ΔP verification

More about the Hook-Up Elite Prime
