Fig. 1934

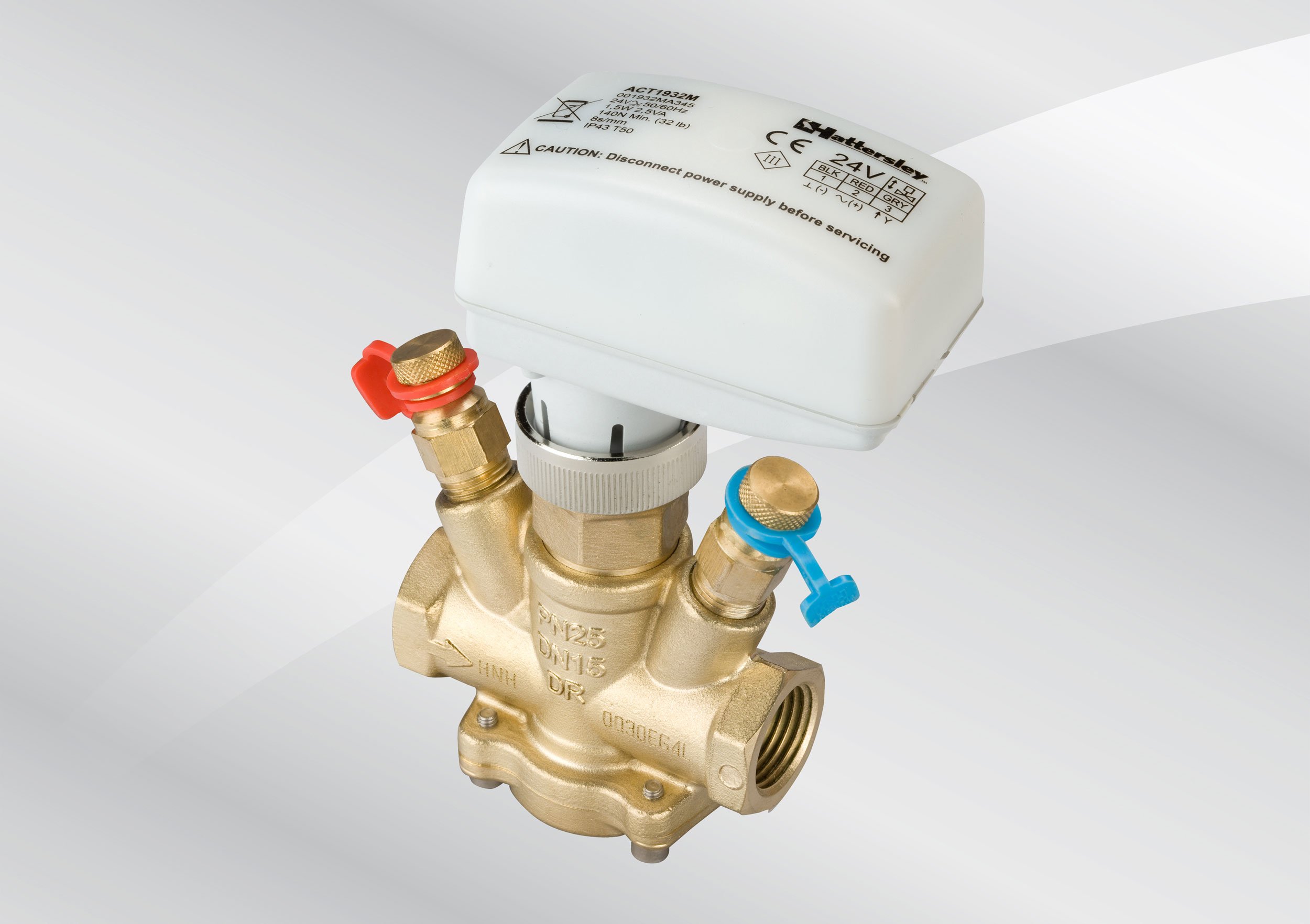

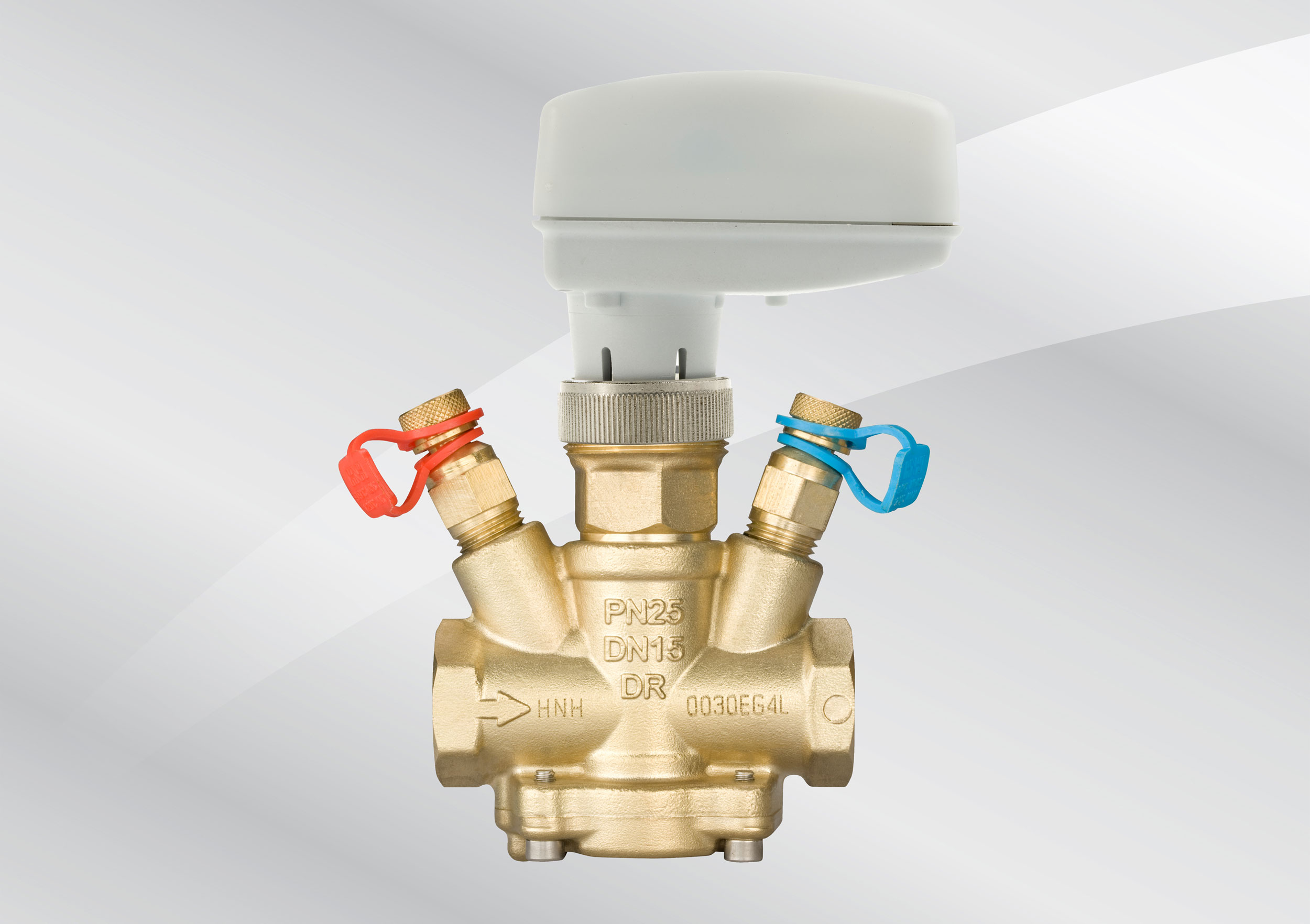

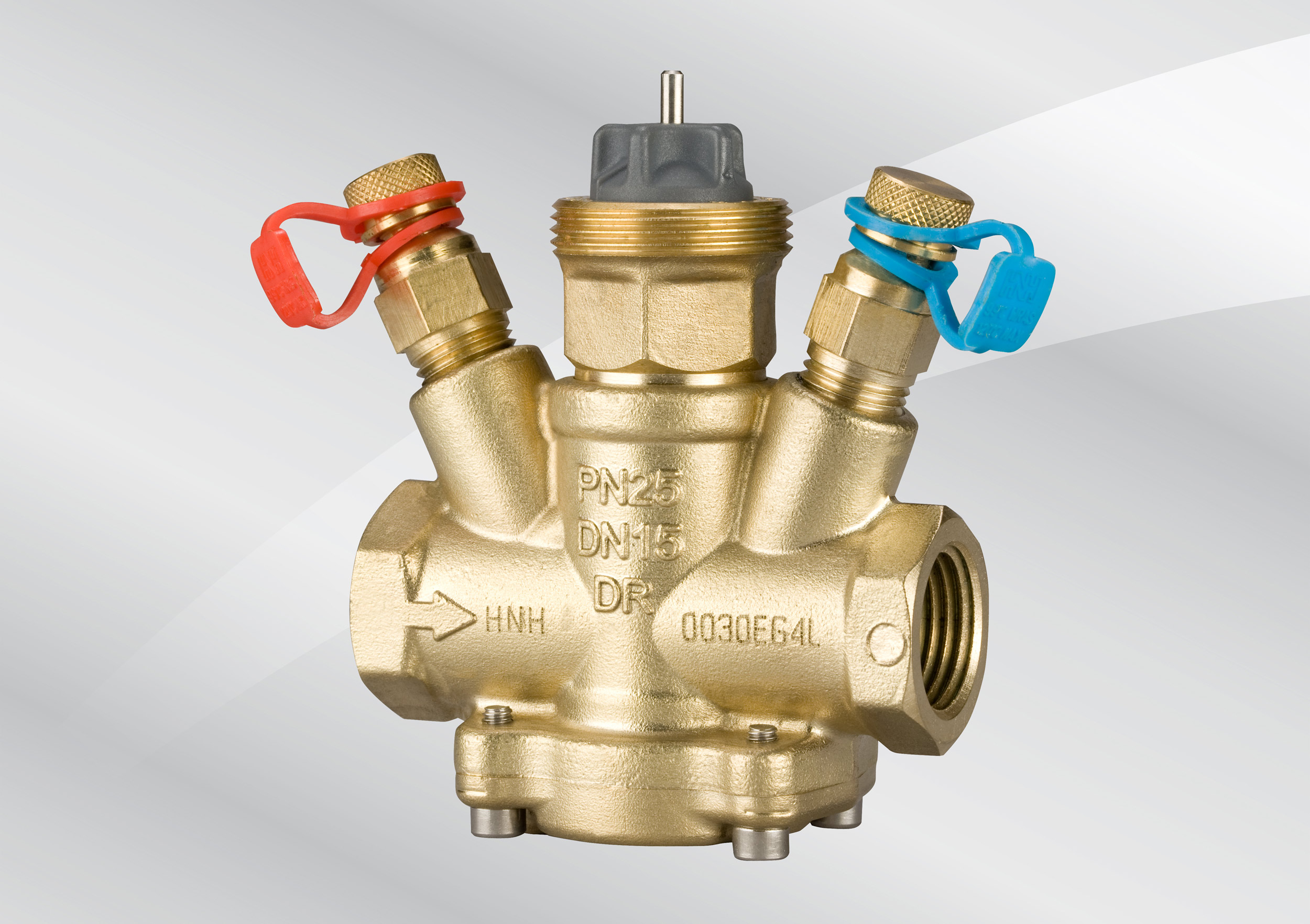

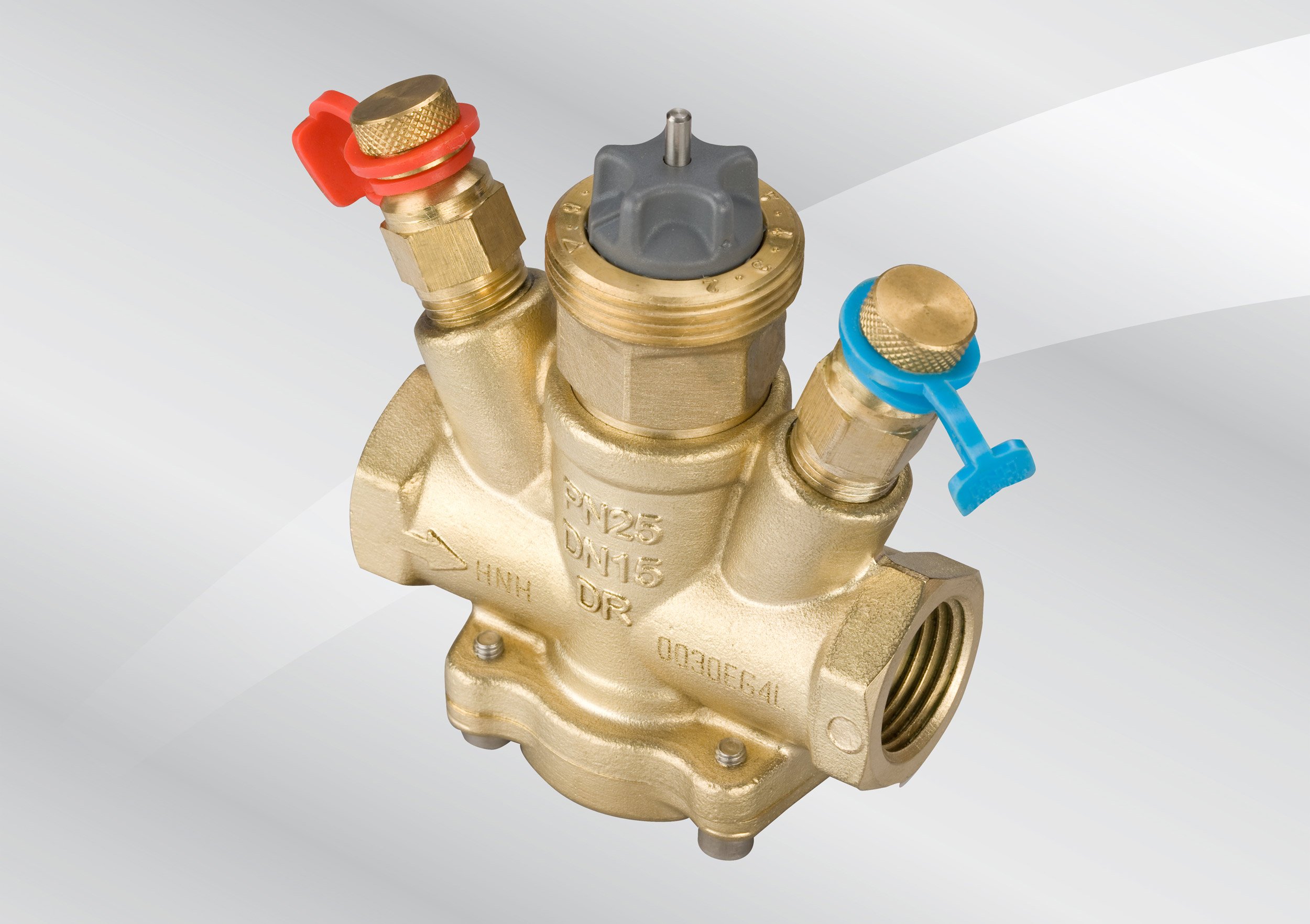

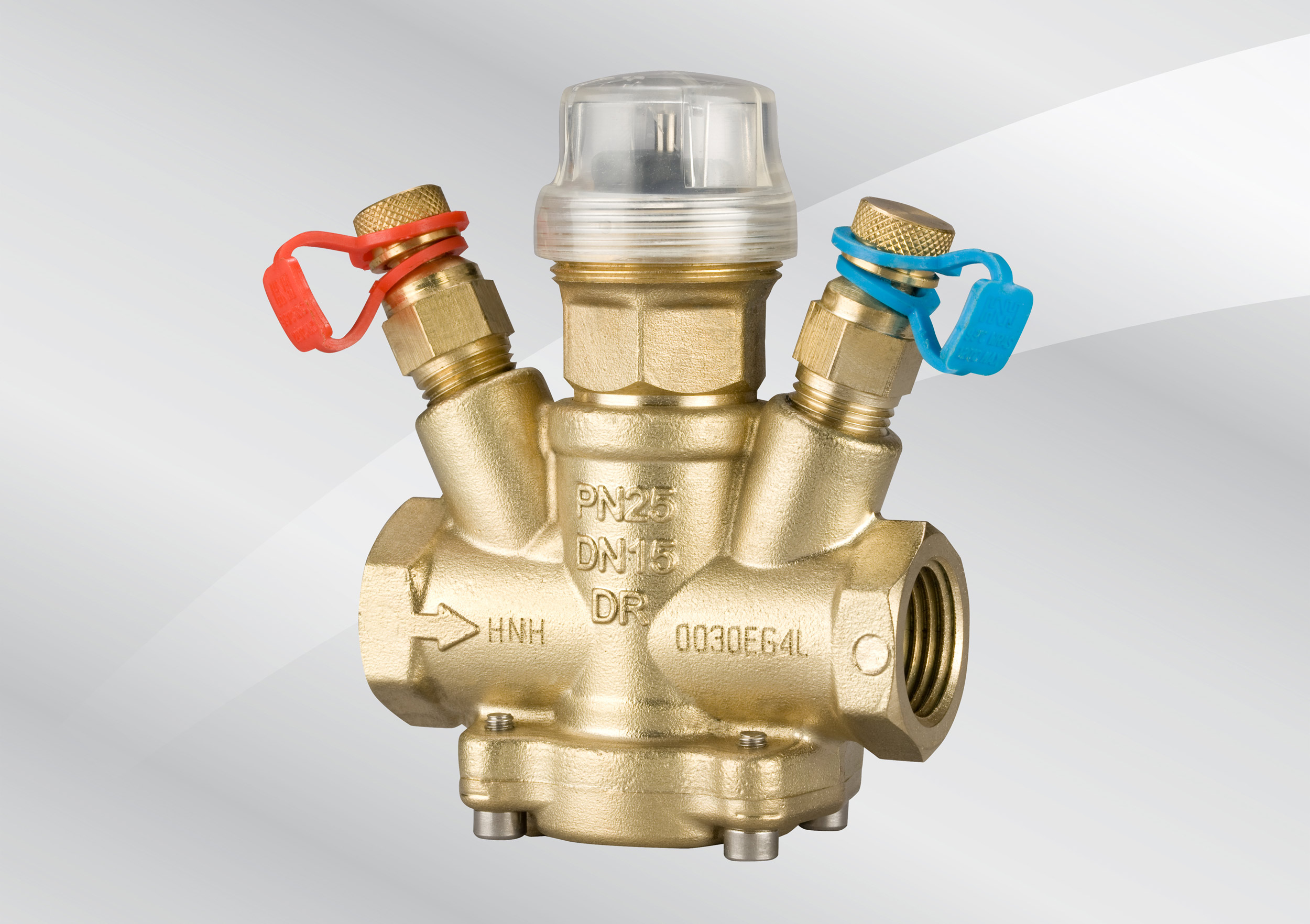

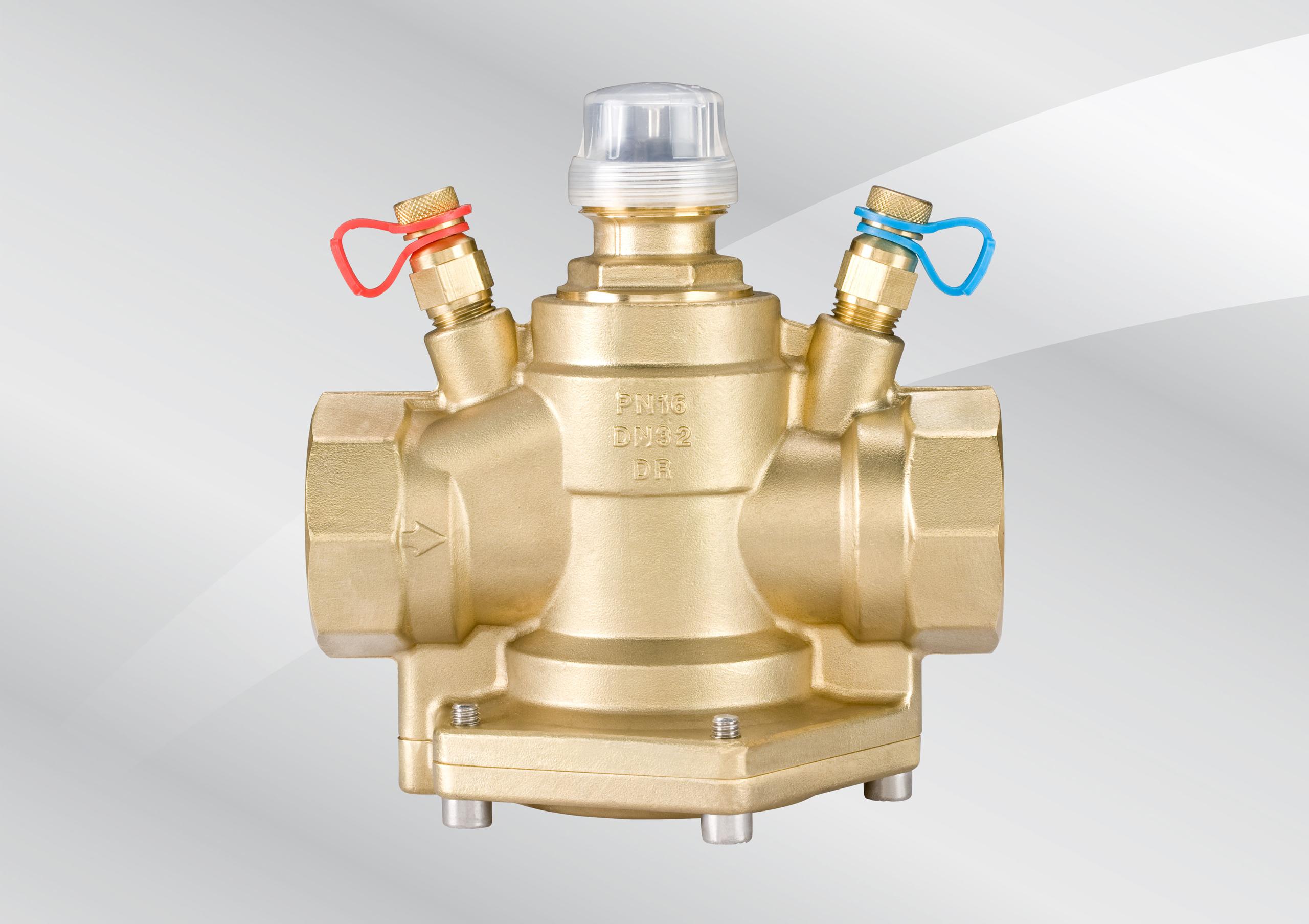

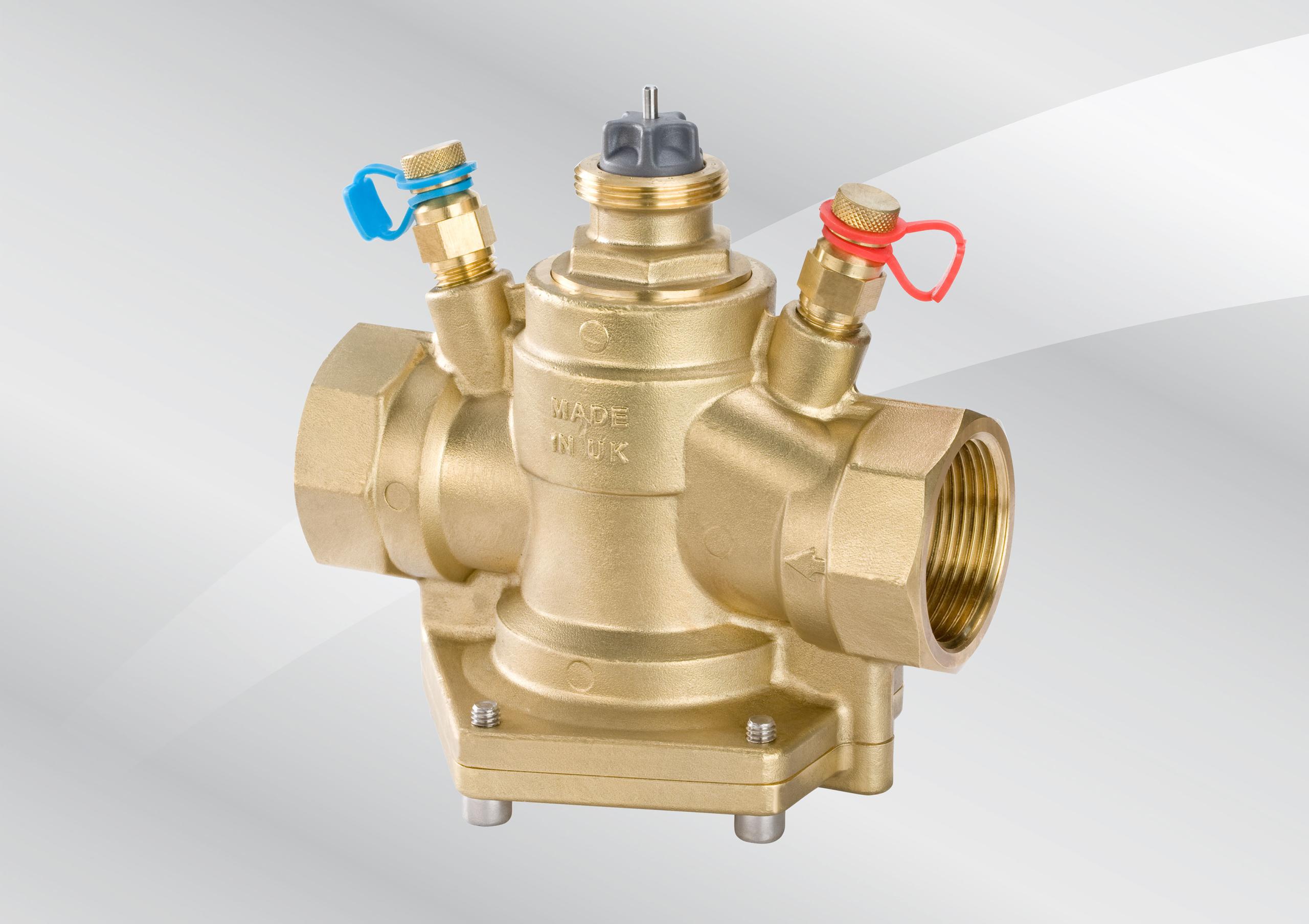

Pressure Independent Control Valve (PICV)

  • Comprehensive flow range available, allowing for cost-effective valve selections. The PICV Elite Prime has up to 70% higher max flow compared to the previous model
  • Accurate over a wide ΔP range – available in both 400 and 800kPa variants
  • Class IV leakage
  • PN16 (DN32) & PN25 (DN15, DN20 & DN25) rated products, suitable for high pressure applications
  • Comprehensive testing undertaken for each valve – pressure tested to BS EN 12266-1 and performance tested in accordance with BSRIA BTS01 (10,000 cycles test which is equal to a design life of 15 years)
  • Integral test points for verification of ΔP and valve performance
  • Built in convoluted integral diaphragm
  • Smaller and lighter design suits applications with a small footprint

Why Choose the Elite Prime PICV

  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
DN15, 20, 25 & 32
Body Size
40mm
Pressure rating
DN15 to DN25: PN25
DN32: PN16
Temperature Rating
0°C to 90°C
Material
DZR Brass
End Connnections
BSP Female Taper to BS EN 10226-2
Flow rate
DN15: 0.008 - 0.370l/s
DN20: 0.070 - 0.500l/s
DN25: 0.120 - 1.030l/s
DN32: 0.520 - 1.730l/s
×
