Fig. 1934

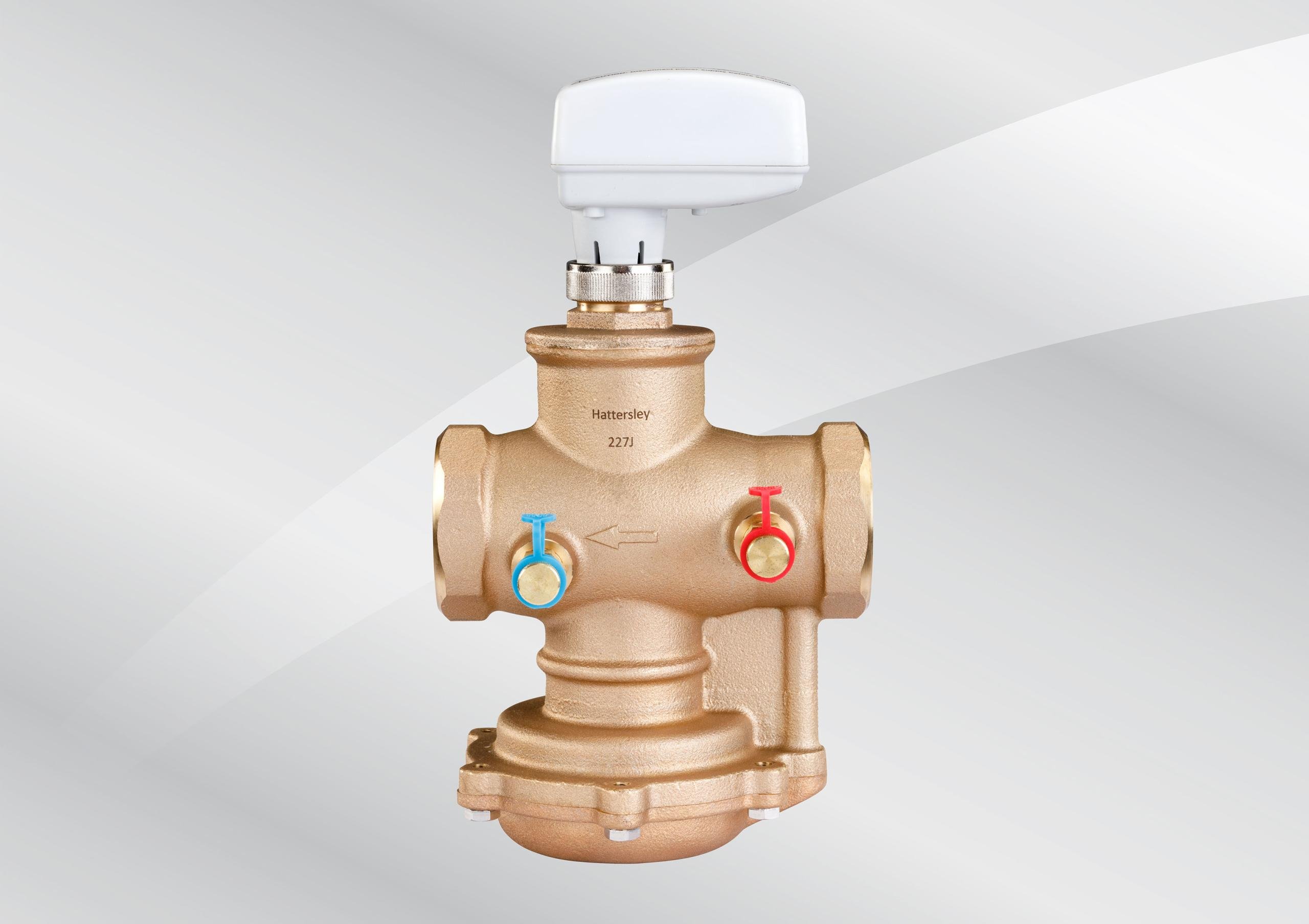

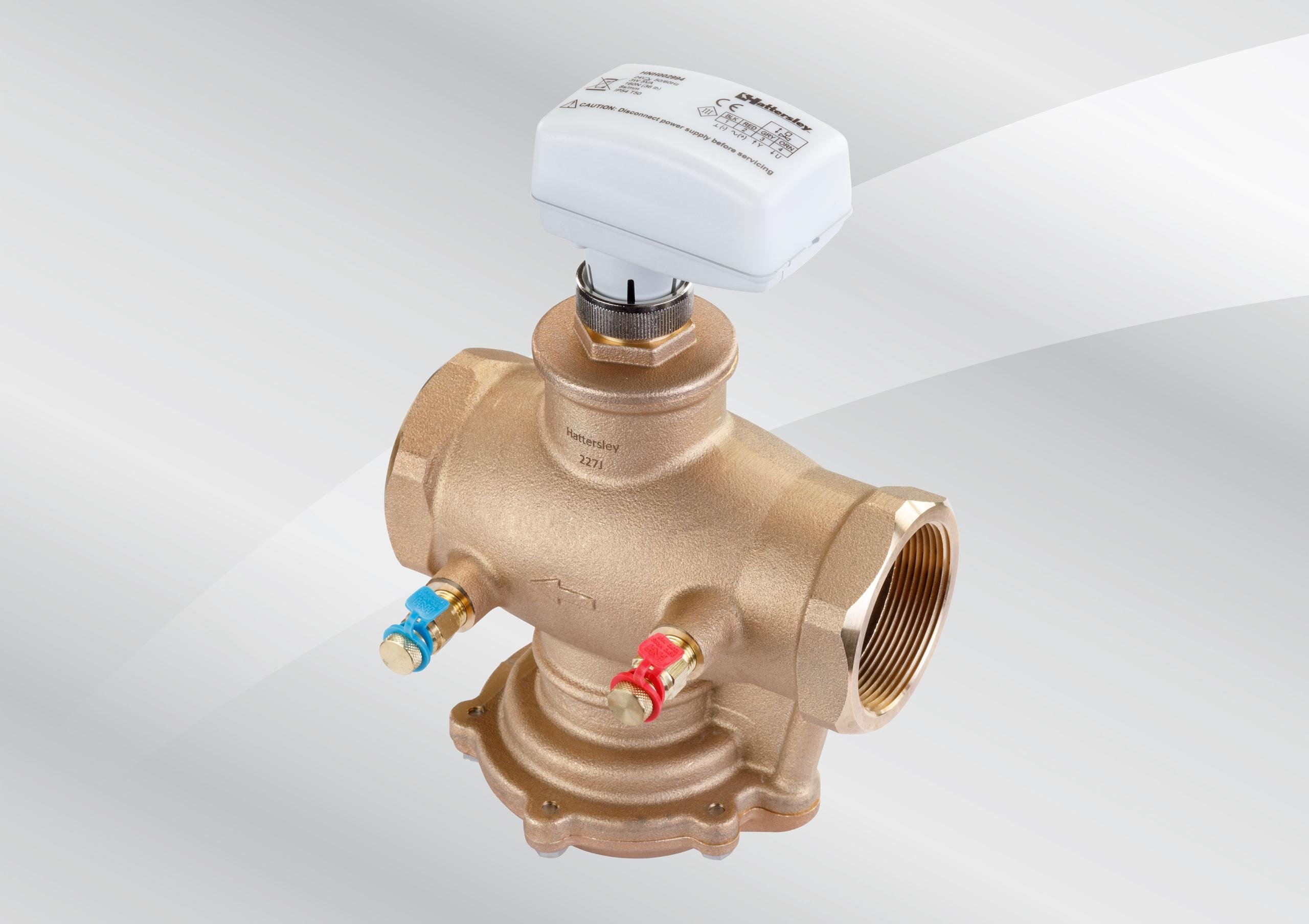

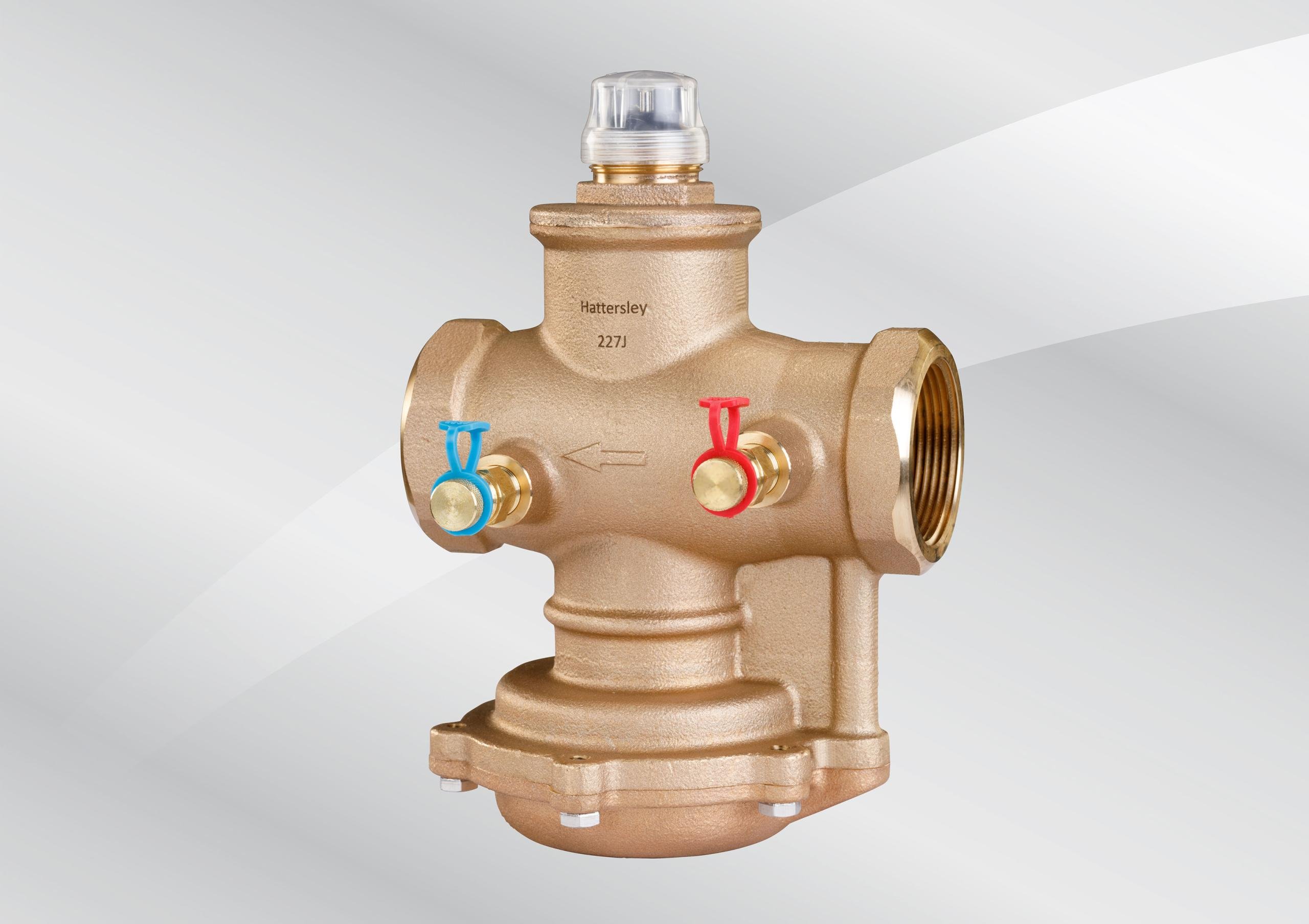

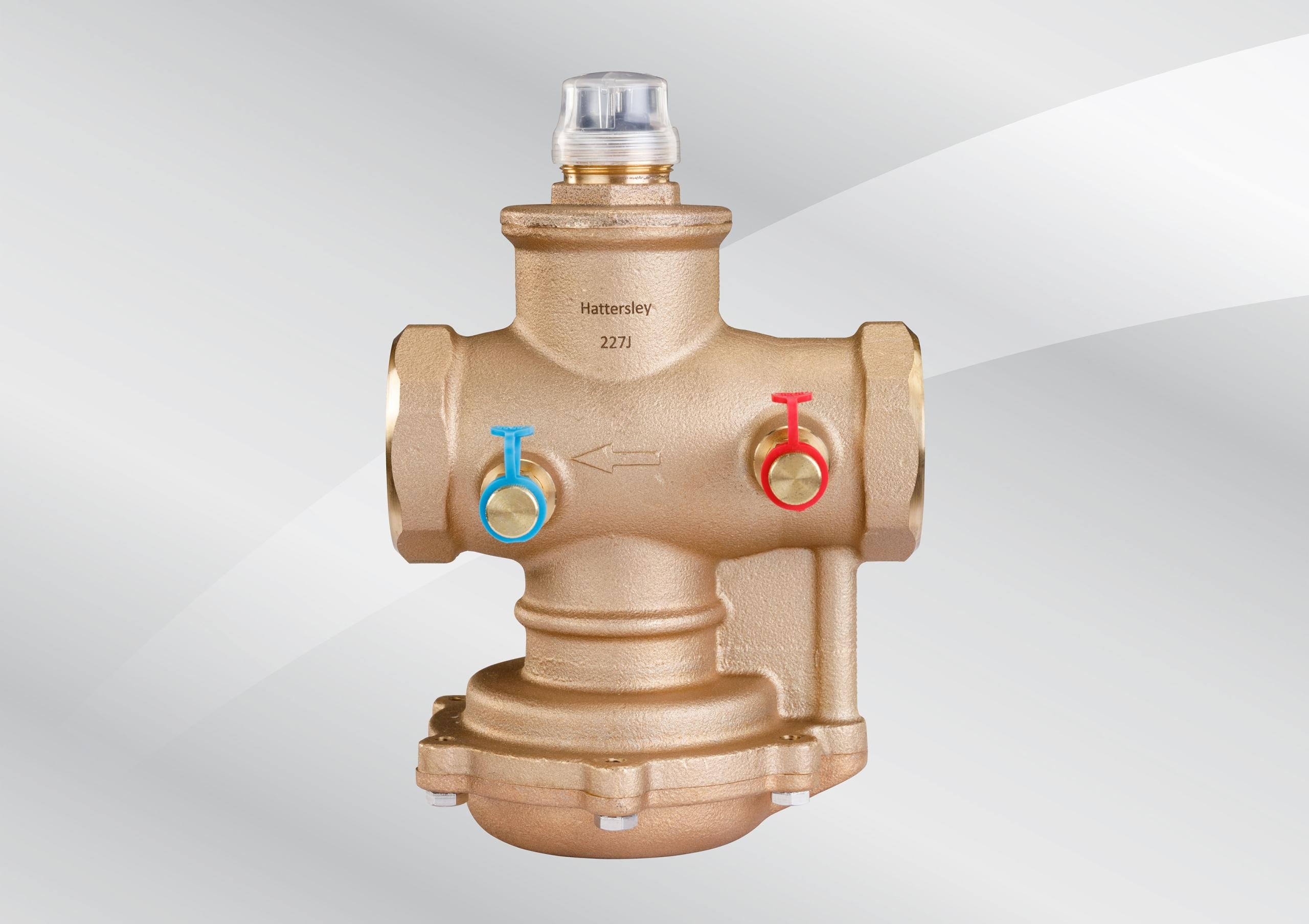

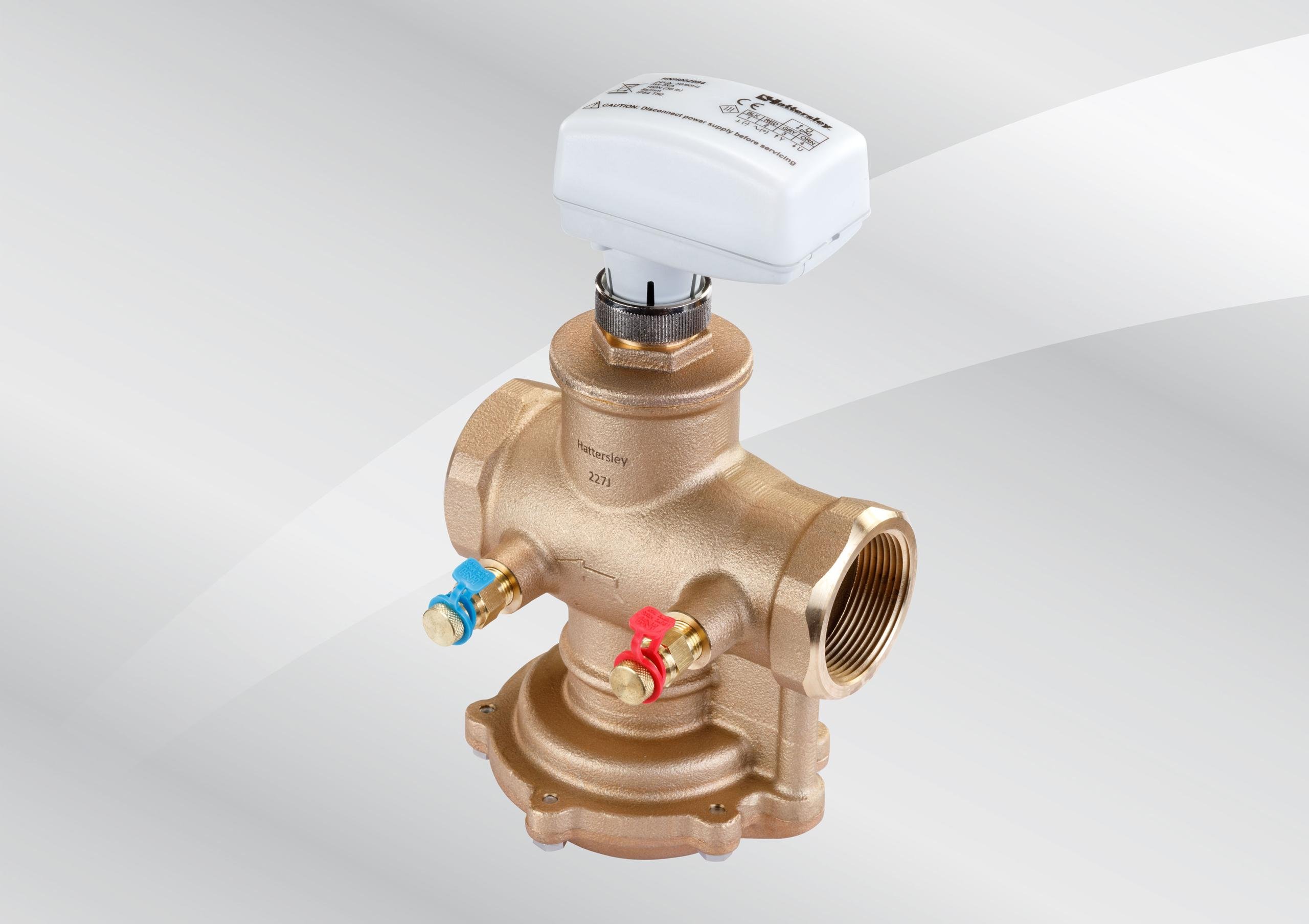

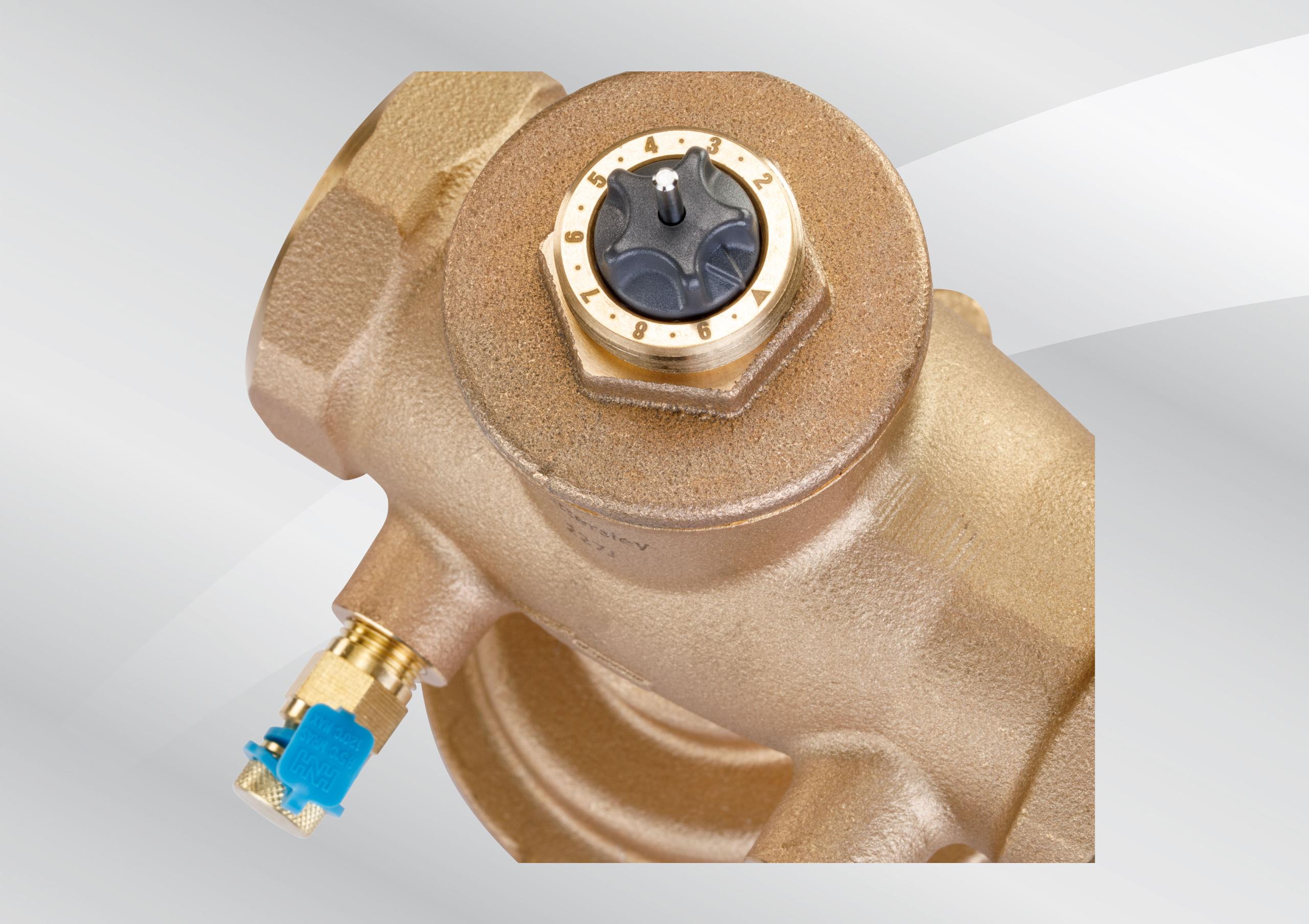

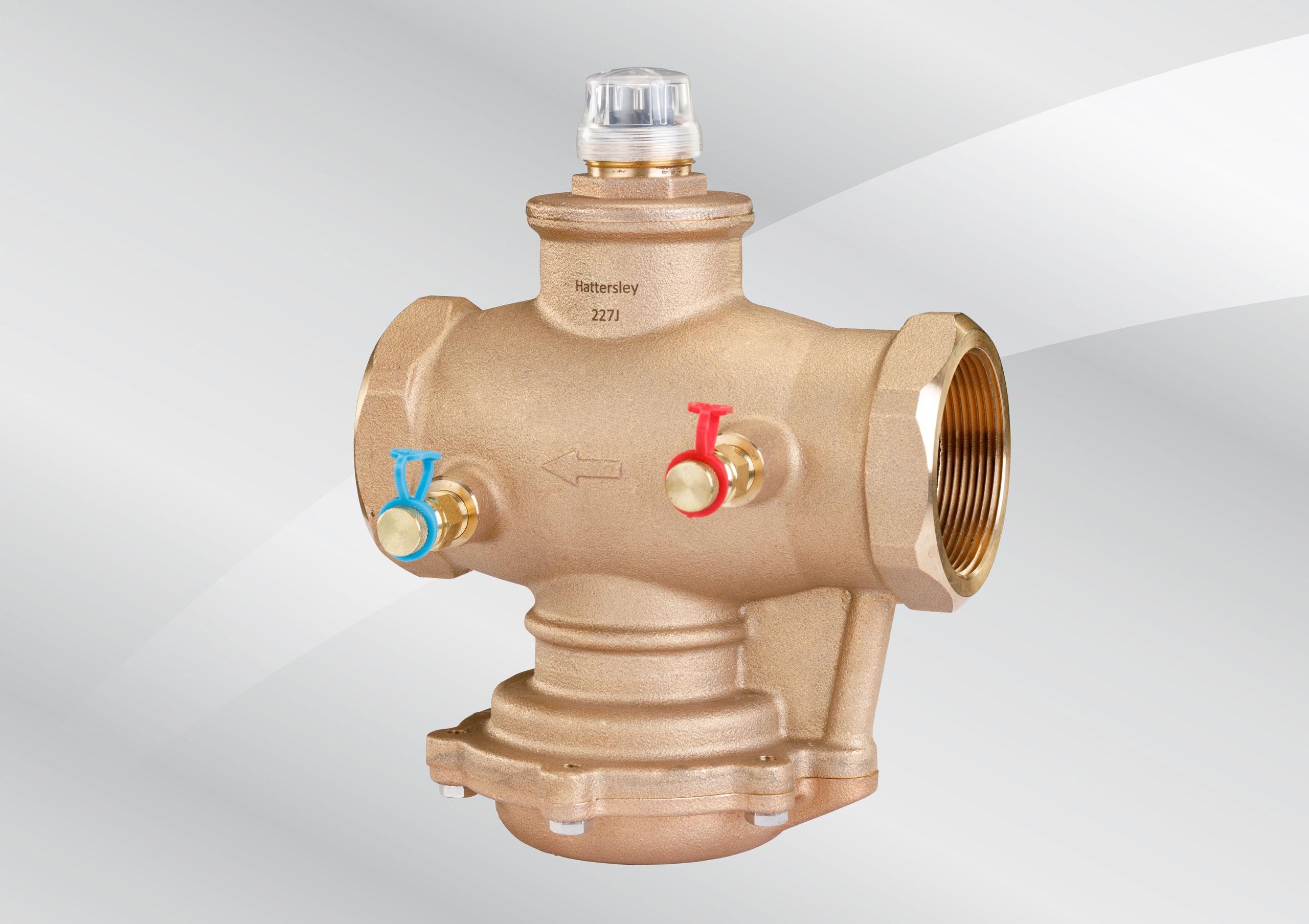

Pressure Independent Control Valve (PICV)

  • Comprehensive flow range available, allowing for cost effective valve selections. The PICV Elite Prime has up to 25% higher max flow compared to the previous model
  • Accurate over a wide ΔP range – up to 800kPa
  • Class IV leakage
  • PN16 rated product, suitable for high pressure applications
  • Design validation testing to BSRIA BTS01. As per Cyclic Testing requirements, valve subjected to 10,000 cycles (equivalent to 15 years* of typical service)
  • Comprehensive testing undertaken for each valve – pressure tested to BS EN 12266-1
  • Integral test points for verification of ΔP and valve performance
  • Built in convoluted integral diaphragm
  • Smaller and lighter design suits applications with a small footprint

* based on two full stroke cycles per day

  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
DN40 & DN50
Pressure rating
PN16
Flow rate
DN40: 0.39 - 3.00l/s
DN50: 0.69 - 3.80l/s
Temperature Rating
0°C to 90°C
End Connnections
BSP Female Taper to BS EN 10226-2
Material
Bronze
