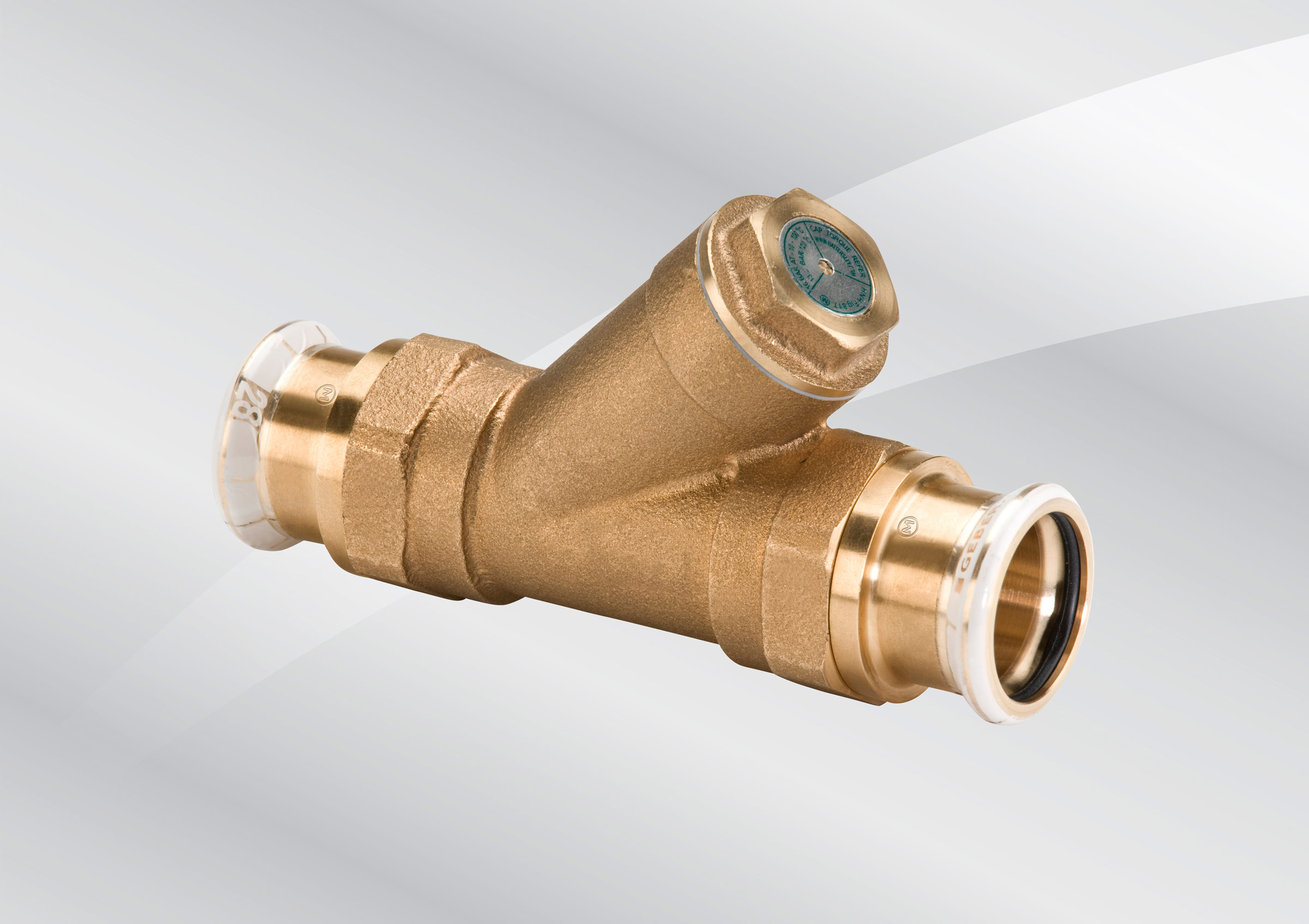

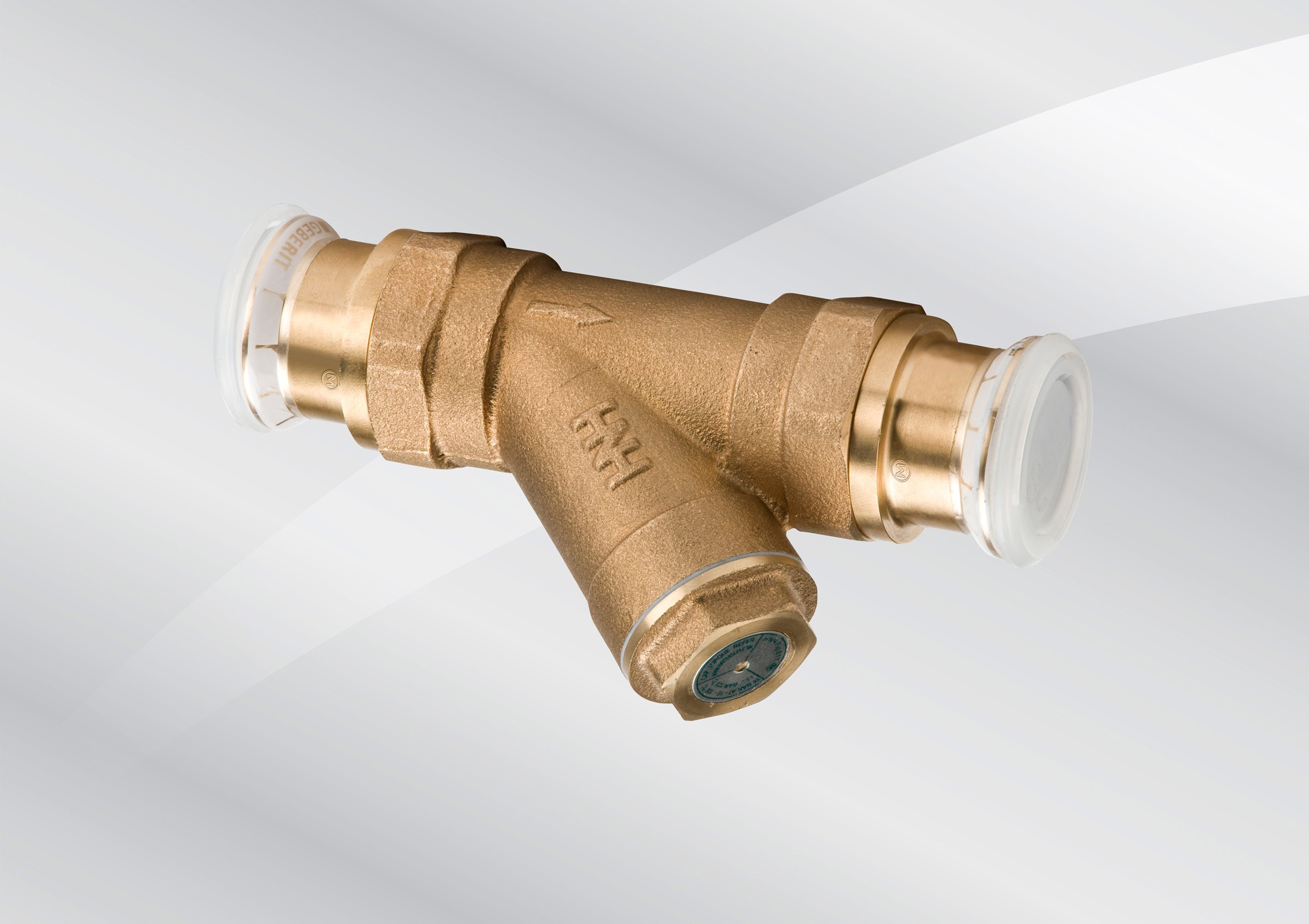

Fig. 817.PF

Press-Fit Strainer – Bronze

in the a
  • Strainer complete with Geberit Mapress connectors
  • Helps prevent damage to pipeline equipment caused by scale and dirt
  • Supplied as one integral unit means less joints to make on-site
  • WRAS Approved Product
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Pressure rating
PN16
Operating Pressure
PN16 -10 to 120ºC
Material
Bronze

Product Downloads

Datasheet
Installation Manual
CAD Files
BIM
Certificate
Additional Files
