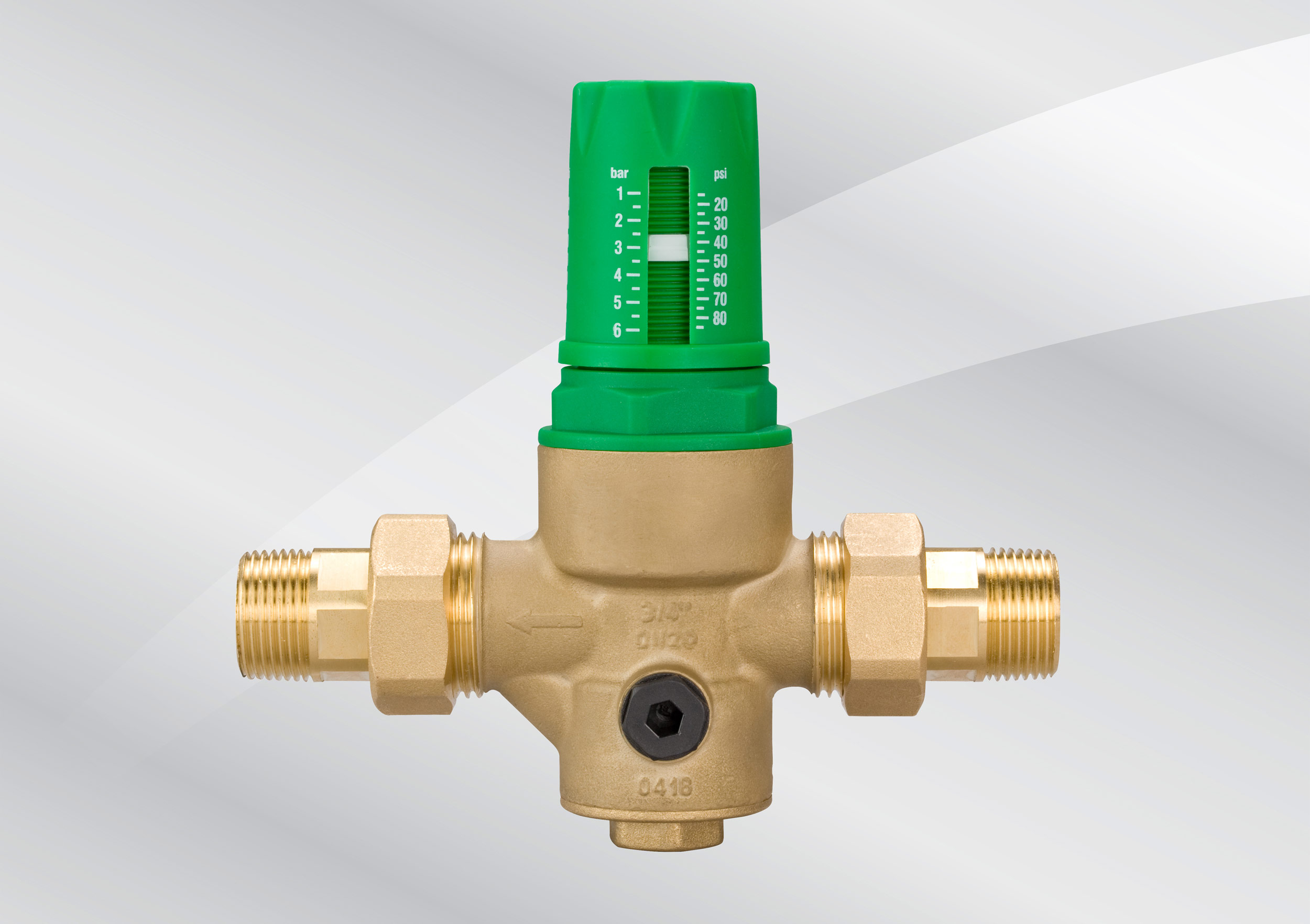

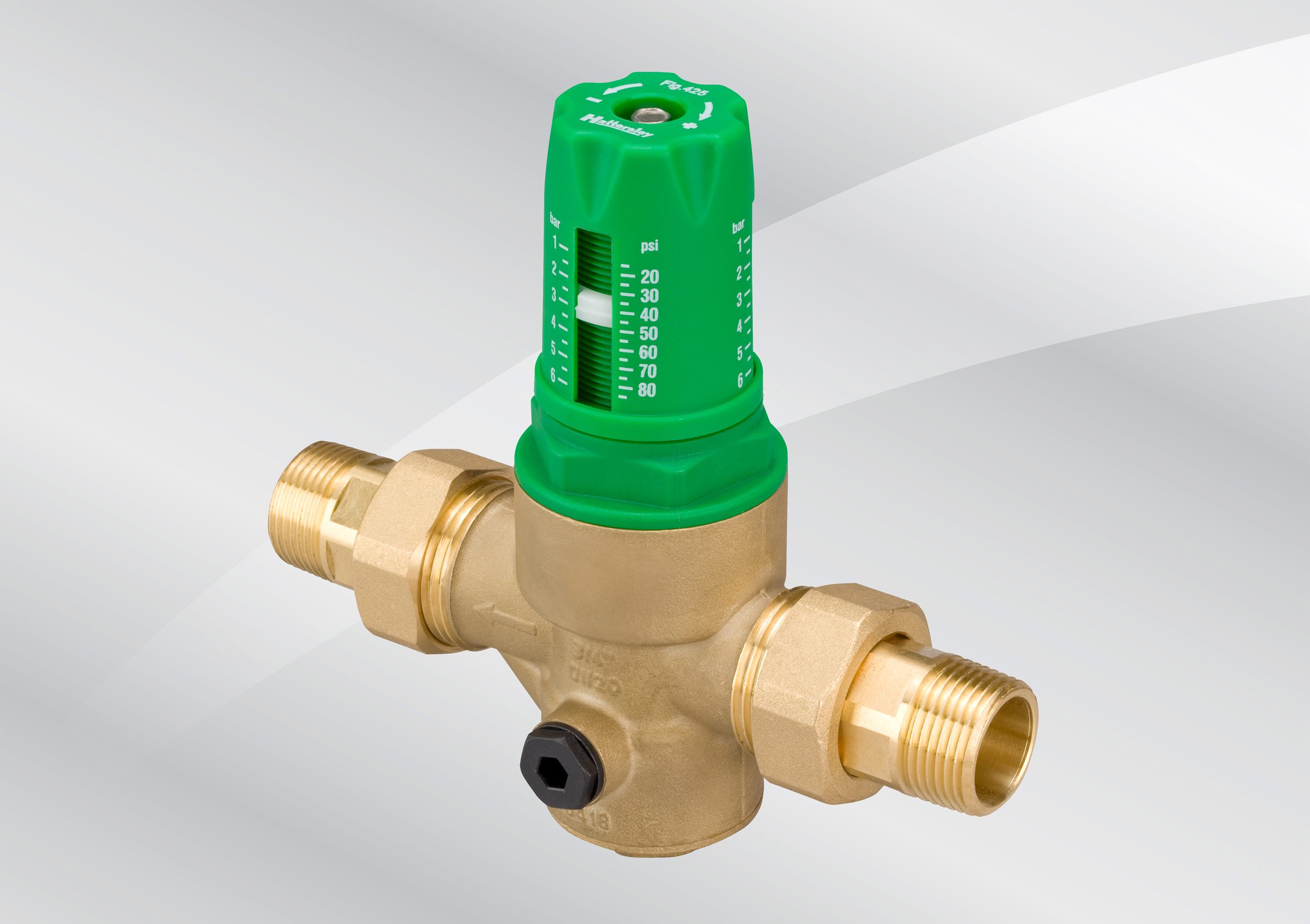

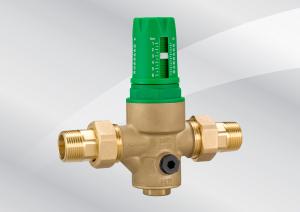

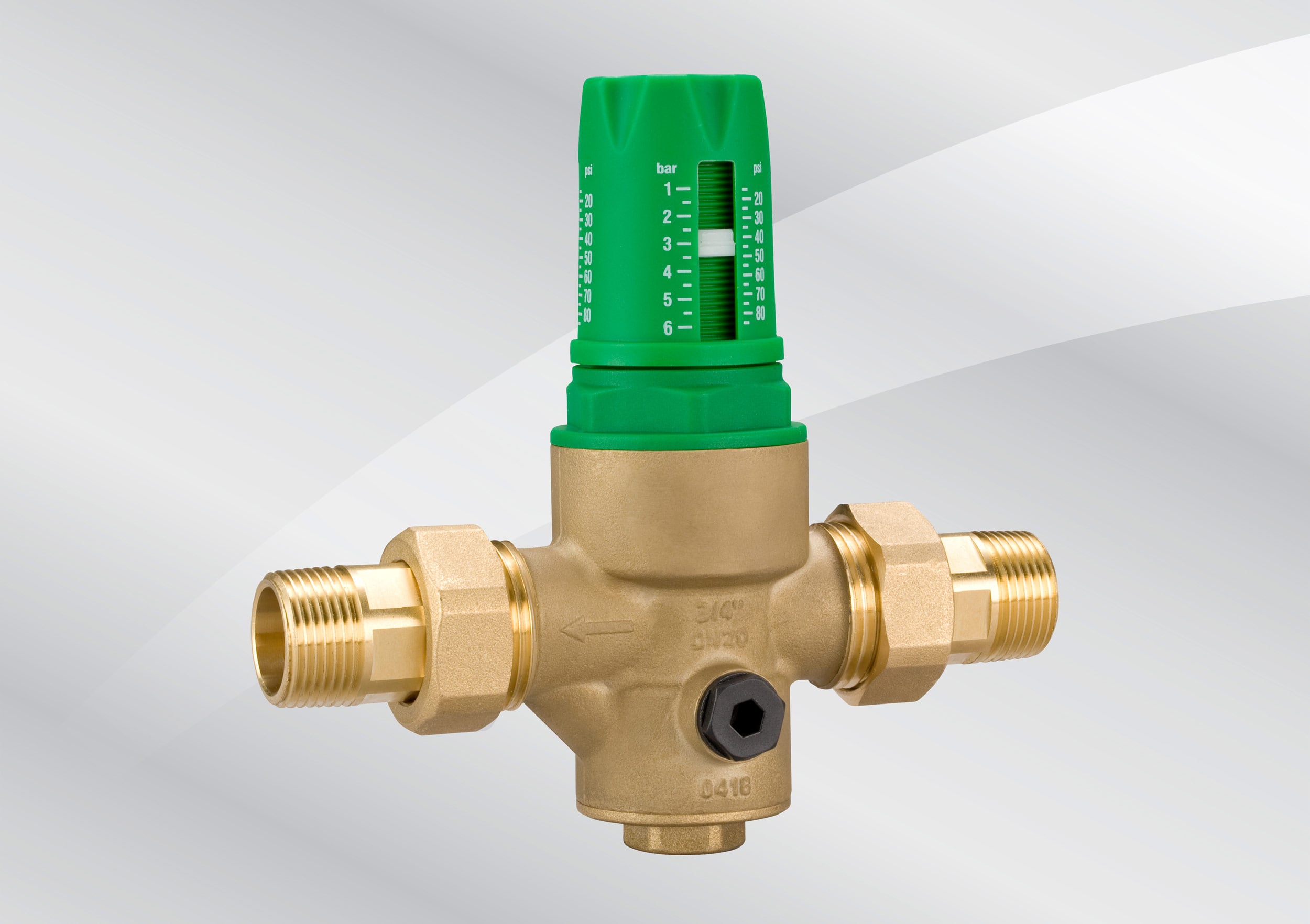

Pressure Reducing Valve (PRV) - DZR Brass

  • WRAS
  • PED
BIM

Features & Benefits

  • PRVs enable control of pressure from boosted hot and cold water supplies to match site requirements
  • Includes male union tail-pieces for ease of maintenance, reducing time spent on site
  • Features an integral strainer preventing debris from affecting valve performance
  • Recommend that isolation valves are fitted upstream and downstream of the valve to enable isolation for cleaning of strainer
  • Performance in accordance with BS EN 1567 for quality assurance
  • Easy access for measuring the outlet pressure
  • A pressure gauge is available to measure outlet pressure for each installed valve and should be ordered separately
  • WRAS Approved to 80°C for drinking water applications

* Please refer to Datasheet for full technical information

size
Size

1/2" to 2"

presure
Pressure Rating

PN25

temp
Temperature Rating

Max temp. 80°C

material
Product Material

DZR Brass

end-connections
End Connections

Male union tapered tail-pieces to BS EN 10226-1
