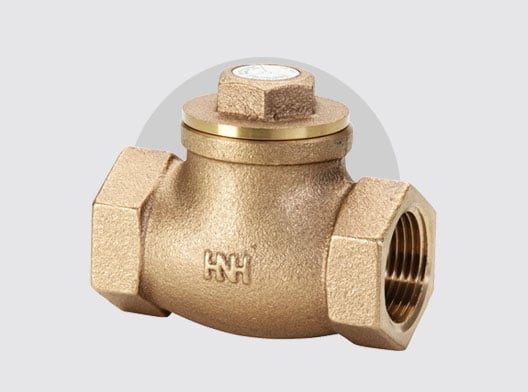

Check valves permit flow in one direction only, and close automatically if flow reverses. They are entirely automatic in action, depending upon pressure and velocity of flow within the line to perform their functions of opening and closing.

Most Hattersley swing check valves can be installed in horizontal or vertical upward flow piping. Lift check valves must be used in horizontal lines only.

More About Check Valves

Total Products: 11
Reset Filters
Fig. 42

Fig. 42

Check Valves - Horizontal Lift - Bronze

1/2" to 2"

PN32

END CONNECTIONS
Taper threaded to BS EN 10226 ISO 7-1 (BS 21)

BIM
Fig. 44

Fig. 44

Check Valve - Swing Pattern - Bronze

1/2" to 2"

PN20

TEMPERATURE RATING
-10°C to 180°C

END CONNECTIONS
Taper threaded to BS EN 10226 ISO 7-1 (BS 21)
Fig. 44.AT is ANSI threaded to B1.20.1 (Taper)
  • Kitemark
Fig. 47

Fig. 47

Check Valve - Swing Pattern - Bronze

1/4" to 3"

PN25

END CONNECTIONS
Taper threaded to BS EN 10226 ISO 7-1 (BS 21)

BIM
Fig. 47.PF

Fig. 47.PF

Press-Fit Check Valve - Bronze

15mm to 54mm

PN16

END CONNECTIONS
Complete with Geberit Mapress bronze Press-Fit adaptors.

Gerberit Mapress Press-Fit
BIM
Fig. 861 / 861A / 866

Fig. 861 / 861A / 866

Check Valve - Replaces Fig. 860 & 865 - Cast Iron

DN50 to DN600

PN16

END CONNECTIONS
Suitable for flange connection to
BS EN 1092-2 PN16 / BS EN 1092-2 PN25 / ANSI B16.1 125

BIM
Fig. 1013

Fig. 1013

Check Valves - Horizontal Lift Pattern - Bronze

1/2" to 2"

PN32

END CONNECTIONS
Taper threaded BS EN 10266 (ISO 7-1) formerly BS 21

BIM
  • Kitemark
Fig. 3047

Fig. 3047

Check Valves - Swing Pattern - Bronze

1/2" to 2"

PN25

END CONNECTIONS
Taper threaded to BS EN10226 ISO 7-1 (BS 21)

BIM
  • WRAS
Fig. 861W

Fig. 861W

Check Valve - Dutile Iron

DN50 to DN300

PN16

END CONNECTIONS
Suitable for flange connection to BS EN 1092-2 PN16 / BS EN 1092-2 PN25 / ANSI B16.1 125
  • WRAS
Fig. 3047W

Fig. 3047W

Check Valves - Swing Pattern - Bronze

3/4" to 2"

PN25

END CONNECTIONS
Taper threaded to BS EN 10226 ISO 7-1 (BS 21)

BIM
Fig. M650

Fig. M650

Check Valves - Swing Pattern - Ductile Iron

50mm to 300mm

PN25

END CONNECTIONS
Flanged to BS EN 1092-2 PN25

BIM
Fig. M651 / 651ANSI

Fig. M651 / 651ANSI

Check Valves - Swing Pattern - Cast Iron

50mm to 300mm

PN16

END CONNECTIONS
M651, flanged to BS EN 1092-2 PN16.
651ANSI, flanges drilled to ANSI B16.1 125.

BIM
