SmartFlow Hook-Up

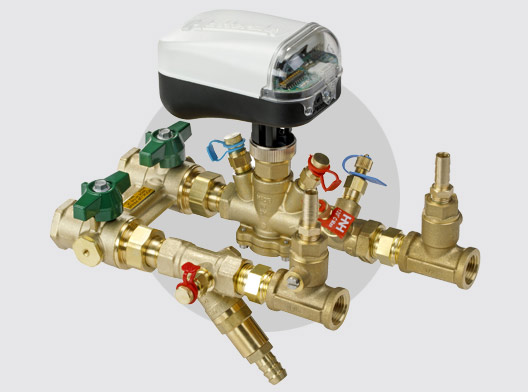

The Hook-Up Elite Prime are industry leading modular valve systems that use Hattersley's best in class PICV technology and flushing bypass H-body, to deliver accurate flow control in a compact unit for terminal devices. Combining this with the Modbus Actuators integrated library of Hattersley PICVs and Hook-Ups, the flow rate can be set remotely via the BMS, reducing commissioning time and simplifying control.

The combination of the Elite Prime unit and actuator provides indicated flow rate back to the BMS via Modbus connection, allowing building operators to manage and refine the HVAC system to improve energy efficiency and reduce carbon emissions.

ACTMDBUS

Modulating Actuator with Modbus

Fig. EP601PF

Hook-Up Elite Prime with PICV, Strainer Drain, FMD & Flushing Drains

DN15/15 to DN25/20

Body Size: 80mm
End Connnections: Flushing By-pass body - BSP Taper
Strainers & Tailpieces - BSP Taper

BIM File Available

Fig. EP701P & Fig. EP701PF

Hook-Up Elite Prime with PICV & Drain

DN15/15 to DN25/25

Body Size: 80mm
Temperature Rating: 0 to 90°C
End Connnections: Flushing bypass body - BSP Taper
Strainers & Tailpieces - BSP Taper

BIM File Available

Fig. EP801P & Fig. EP801PF

Hook-Up Elite Prime with PICV & Strainer Drain

DN15/15 to DN25/25

Body Size: 80mm
Temperature Rating: 0 to 90°C
End Connnections: Flushing bypass body - BSP Taper
Strainers & Tailpieces - BSP Taper

BIM File Available

Fig. HD40BSR1B

Hook-Up Elite Prime with PICV, FMD & Drain Port

Body Size: 40mm
Temperature Rating: 0°C to 90°C
End Connnections: H-Body - BSP Taper
Terminal end - Compression/Solder

BIM File Available

Fig. HD40BSR2A

Hook-Up Elite Prime with PICV, BSRIA Flushing Drain & FMD

Body Size: 40mm
Temperature Rating: 0 to 90°C
End Connnections: H-Body - BSP Taper
Terminal end - Compression/Solder

BIM File Available

Fig. HD40BSR2BS

Hook-Up Elite Prime with PICV, BSRIA Flushing Drain, FMD & Strainer

Body Size: 40mm
Temperature Rating: 0°C to 90°C
End Connnections: H-Body - BSP Taper
Terminal end - Compression/Solder

BIM File Available

Fig. HD40BSS4B

Hook-Up Elite Prime with PICV, BSRIA Flushing Drain & 4-Port

Body Size: 40mm
Temperature Rating: 0 to 90°C
End Connnections: H-Body - BSP Taper
Terminal end - Compression/Solder
