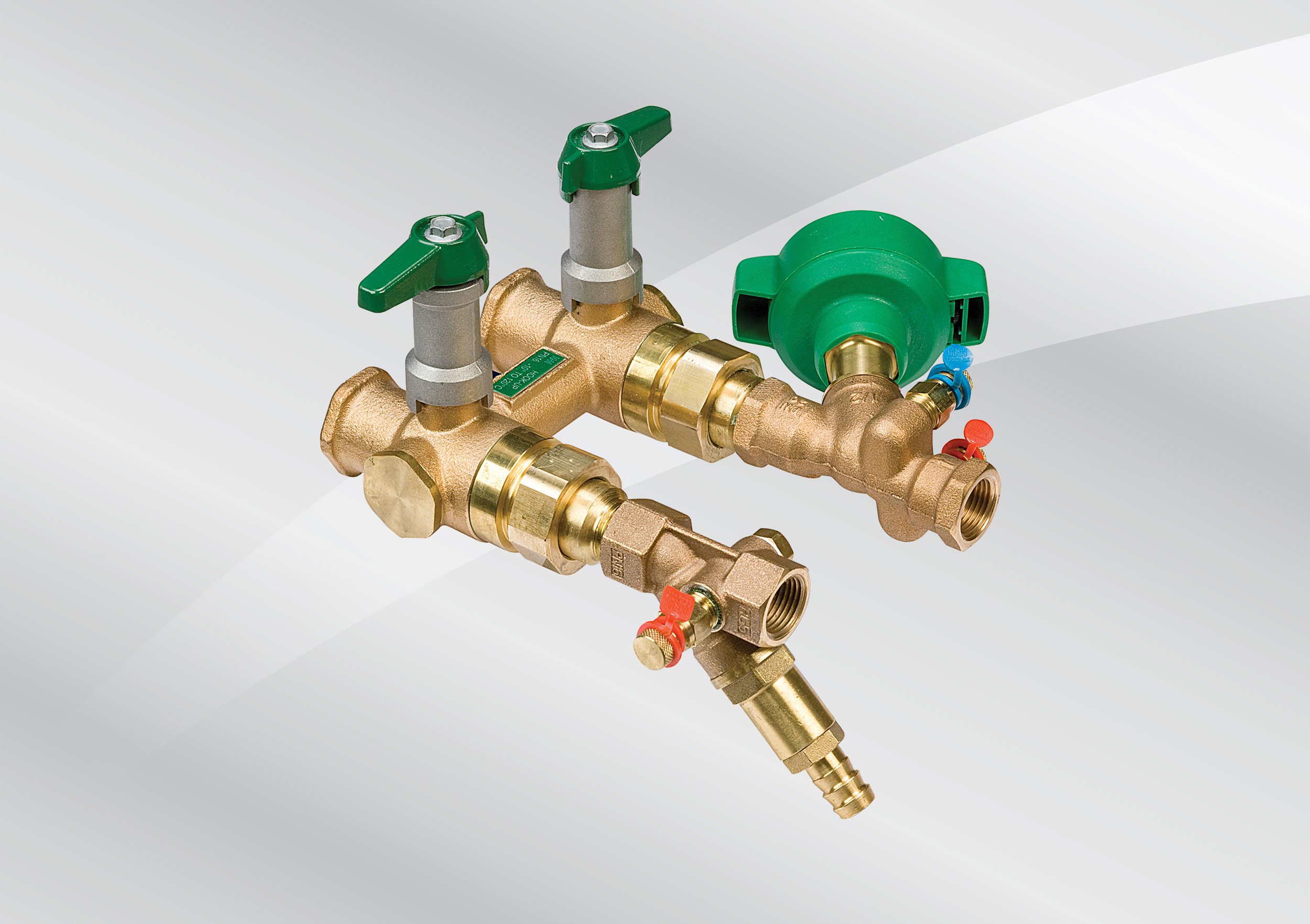

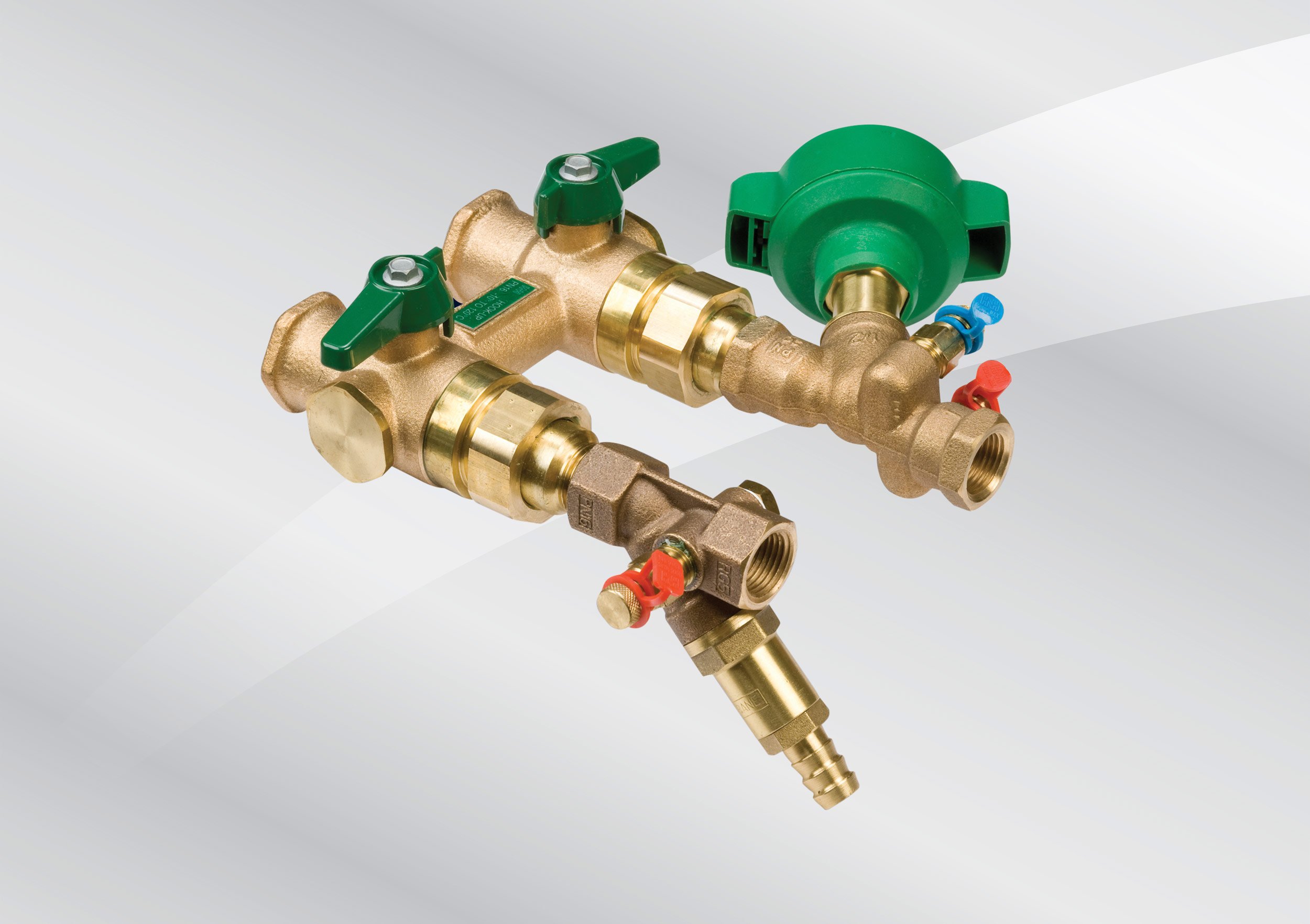

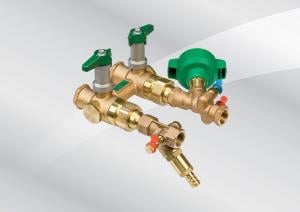

Fig. C266 & H266

Manual Hook-Up (with Drain & Strainer)

C266 and H266 – Ultra compact, prefabricated unit. Provides flow control, measurement, flushing and isolation. Can be tailored to customers specifications.

  • The Hook-Up is compact and lightweight
  • The standardised components with guaranteed tested performance
  • Integrated union joints allow for custom alignment
  • 80mm supply/return centres allow for ease of lagging
  • Simple on-site connection
  • Fast connection of one complete assembly Comprising of two T-ported ball valves
  • Allows easy back flushing, forward flushing and isolation
  • The position of the T-handle gives clear indication of flow/bypass mode
  • Designed around 3/4″ full bore ball for optimum flow
  • Can be adapted to 1/2″, 3/4″ and 1″ end connections
  • Simple attachment to existing hanger

More about the Hook-Up

  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

DN15/15 - DN25/25
Body Size
Pressure rating
Temperature Rating
10 - 120°C
End Connnections
System Side - BSP Female Taper
Terminal Side - BSP Female Taper

Please select from the files below
