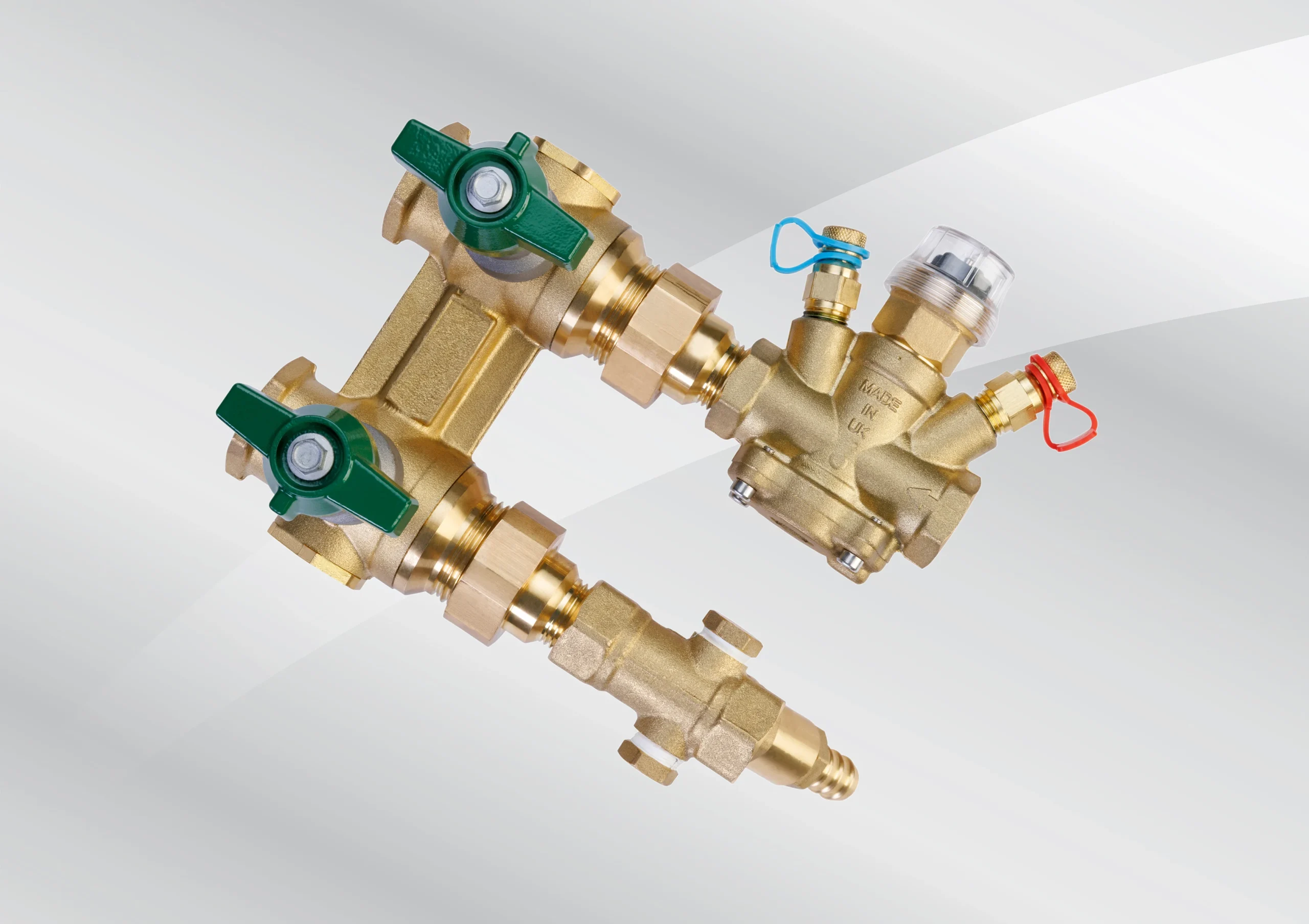

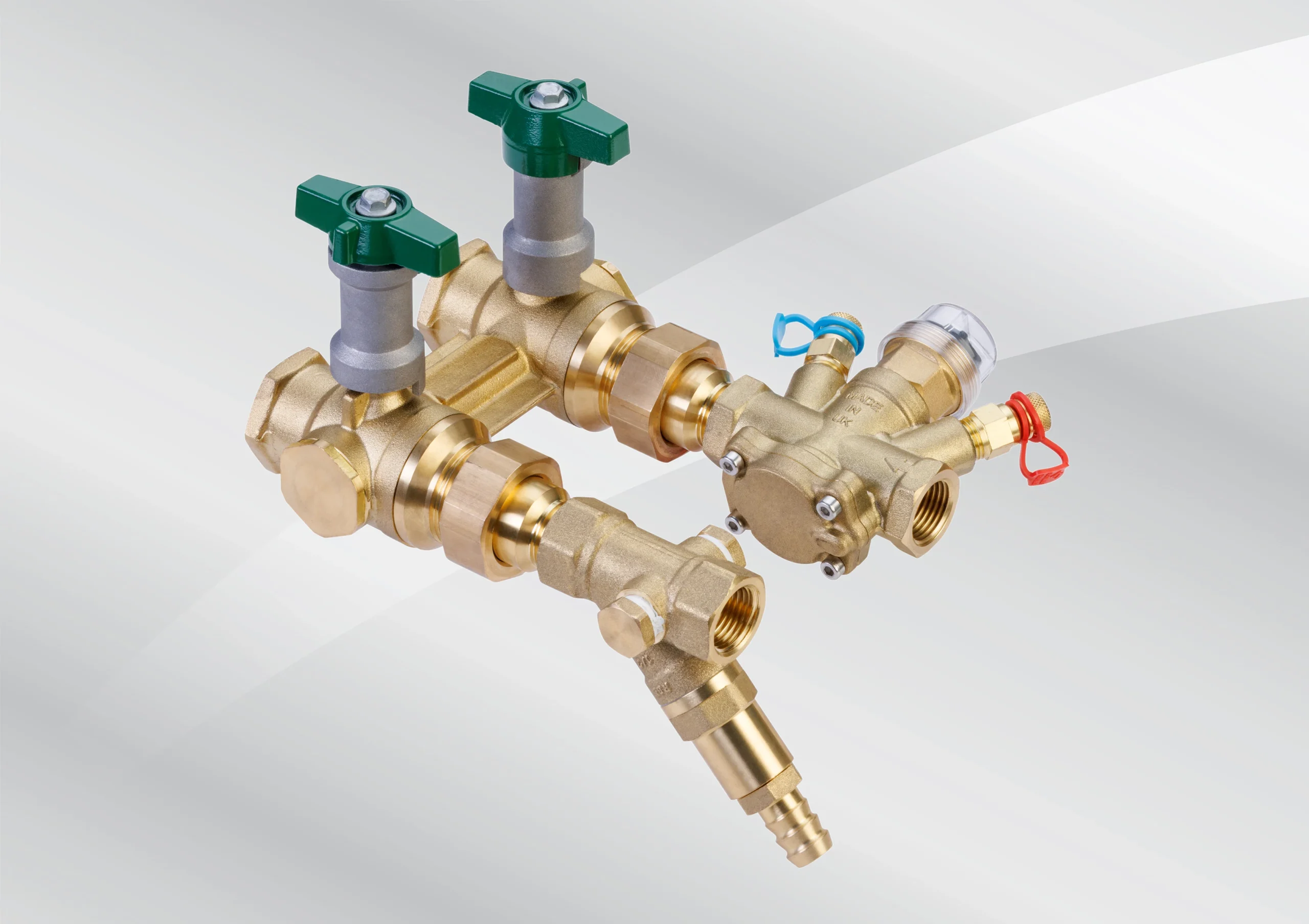

Fig. EP401P / Fig. EP401PF

Hook-Up Elite Prime with PICV & Strainer Drain for use with Hattersley’s Insulation Box

in the a Fig. EP401P Hook-Up Elite Prime with PICV & Strainer Drain for use with Hattersley’s Insulation Box
Fig. EP401P Hook-Up Elite Prime with PICV & Strainer Drain for use with Hattersley’s Insulation Box Fig. EP401P Hook-Up Elite Prime with PICV & Strainer Drain for use with Hattersley’s Insulation Box
  • Compact, pre-fabricated unit – now available with Elite Prime PICV with a wide range of settable flows to suit all applications.
  • All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1. This provides reassurance of performance and accuracy within each valve.
  • Designed for use with Hattersley’s Insulation box, reducing thermal loss.
  • Provides accurate flow rates & differential pressure control as well as flow measurement (EP401PF), system flushing and isolation.
  • Fully assembled & factory tested unit reduces installation time, costs and specification risks.
  • All units rated to PN25 internal pressure and 800kPa differential across the PICV.
  • On-Off, modulating, feedback and Smart actuators are available to match specification.

Product Overview

Please refer to Datasheet for full technical information

Size
DN15/15 to DN25/25
Body Size
80mm
Pressure rating
PN25
Temperature Rating
0 to 90°C
End Connnections
Flushing bypass body
- BSP Taper, Strainers & Tailpieces
- BSP Taper

Product Downloads

Datasheet
