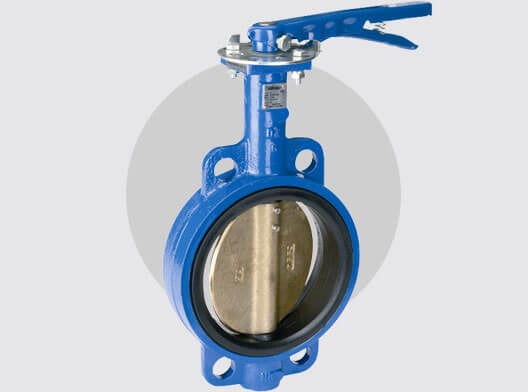

Hattersley butterfly valves are compact quarter turn valves. The body is elastomer lined providing a resilient bubble tight shut off. The valves are supplied in wafer or lugged variants and may be lever or gearbox operated.

Linings are EPDM or Nitrile rubber depending on the intended service conditions. Primarily recommended for on off service, they may also be used for non critical throttling applications. Only a quarter turn is needed to fully open or close the valve.

Hattersley also offer a range of high performance butterfly valves, developed for high integrity shut-off and regulation duties. This range is ideal where increased pressure and elevated temperature specifications are outside the normal operating parameters of concentric disc valves. The Hattersley high performance valves have enhanced features to provide impeccable performance and reliability.

Total Products: 27
Reset Filters
Fig. 950 & 950G

Fig. 950 & 950G

Semi-Lugged Wafer Pattern Butterfly Valve - Ductile Iron

Fig. 950: 50mm to 200mm
Fig. 950G: 50mm to 600mm

PN16

END CONNECTIONS
To suit flange connections BS EN 1092-2 PN16

BIM
  • WRAS
Fig. 950W & 950WG

Fig. 950W & 950WG

Semi-Lugged Wafer Pattern Butterfly Valve - Ductile Iron

Fig. 950W: 50mm to 200mm
Fig. 950WG: 50mm to 300mm

PN16

BIM
Fig. 951 & 951G

Fig. 951 & 951G

Semi-Lugged Butterfly Valve - Ductile Iron

Fig. 951: 50mm to 200mm
Fig. 951G: 50mm to 600mm

PN16

BIM
Fig. 970 & 970G

Fig. 970 & 970G

Fully-Lugged Wafer Pattern Butterfly Valve - Ductile Iron

Fig. 970: 50mm to 200mm
Fig. 970G: 50mm to 600mm

PN16

BIM
  • WRAS
Fig. 970W & 970WG

Fig. 970W & 970WG

Fully-Lugged Butterfly Valve - Ductile Iron

Fig. 970W: 50mm to 200mm
Fig. 970WG: 50mm to 300mm

PN16

BIM
Fig. 971 & 971G

Fig. 971 & 971G

Fully-lugged Butterfly Valve - Ductile Iron

PN16

OPERATING PRESSURE
PN16

BIM
Fig. 980

Fig. 980

ANSI Export Butterfly Valve - Ductile Iron

Class 150

OPERATING PRESSURE
19.65 bar from -10 to 37.8 degrees celcius
16.93 bar at 120 degrees celcius

BIM
Fig. 4925 & 4925G

Fig. 4925 & 4925G

Butterfly Valve - Ductile Iron

PN25

TEMPERATURE RATING
25 Bar from -10°C to 120°C

BIM
Fig. 4970 & 4970G

Fig. 4970 & 4970G

Butterfly Valve - Ductile Iron

DN50 to DN600

PN16

OPERATING PRESSURE
16 bar from -10 to 120ºC.
15.7 bar at 130ºC.

BIM
  • PED
Fig. 4930G / 5930G / 4930BS ANSI

Fig. 4930G / 5930G / 4930BS ANSI

ANSI Class 150 - Cast / Ductile Iron

26" to 56" ANSI 150

Class 150

END CONNECTIONS
ASME B16.47A
  • PED
Fig. 4930G / 5930G / 4930BS

Fig. 4930G / 5930G / 4930BS

Butterfly Valves - Cast / Ductile Iron

DN700 to DN1800

PN16

END CONNECTIONS
Flanges to BS EN 1092-2 PN10 and PN16
Fig. 4990G

Fig. 4990G

Butterfly Steel Fully Lugged DN50-150 PN16 - Carbon Steel

DN50 to 150

PN16

OPERATING PRESSURE
16 bar from -10 to 163ºC
3.4 bar at 204ºC
Fig. 4990G

Fig. 4990G

Butterfly Steel Fully Lugged DN50-150 PN25 - Carbon Steel

DN50 to 150

PN25

OPERATING PRESSURE
20.7 bar at 149ºC
3.4 bar at 204ºC
25 bar from -10 to 135ºC
Fig. 4990G

Fig. 4990G

Butterfly Steel Fully Lugged DN200-500 PN25 - Carbon Steel

DN200 to 500

PN25

OPERATING PRESSURE
25 bar from -10 to 135ºC
20.7 bar at 149ºC
3.4 bar at 204ºC
Fig. 4990G

Fig. 4990G

Butterfly Steel Fully Lugged DN65-150 PN40 - Carbon Steel

DN65 to 150

PN40

OPERATING PRESSURE
40 bar from -10 to 90ºC
20.7 bar at 149ºC
3.4 bar at 204ºC
Fig. 4990G

Fig. 4990G

Butterfly Steel Fully Lugged DN200-500 PN40 - Steel

DN200 to 500

PN40

OPERATING PRESSURE
20.7 bar at 149ºC
3.4 bar at 204ºC
40 bar from -10 to 90ºC
Fig. 950 & 950G NEW DESIGN

Fig. 950 & 950G NEW DESIGN

Semi-lugged Wafer Pattern Lever/Gearbox Operated - Ductile Iron

Fig. 950: 50mm to 200mm
Fig. 950G: 50mm to 300mm

PN16

END CONNECTIONS
Sizes DN50 to DN300 are suitable for use
with flanges conforming to BS EN 1092-2
Fig. 951 & 951G NEW DESIGN

Fig. 951 & 951G NEW DESIGN

Semi-lugged Lever/Gearbox Operated Wafer Pattern - Ductile Iron

Fig. 951: 50mm to 200mm
Fig. 951G: 50mm to 300mm

PN16

END CONNECTIONS
Sizes DN50 to DN300 are suitable for use with flanges conforming to BS EN 1092-2 PN10 or PN16 and ANSI B16.1 Class 125.
Fig. 970 & 970G NEW DESIGN

Fig. 970 & 970G NEW DESIGN

Fully-lugged Lever/Gearbox Operated - Ductile Iron

Fig. 970: 50mm to 200mm
Fig. 970G: 50mm to 600mm

PN16

END CONNECTIONS
To suit flange connections BS EN 1092-2 PN16
Fig. 971 & 971G NEW DESIGN

Fig. 971 & 971G NEW DESIGN

Fully-lugged Lever/Gearbox Operated - Ductile Iron

Fig. 971: 50mm to 200mm
Fig. 971G: 50mm to 600mm

PN16

END CONNECTIONS
To suit flange connections BS EN 1092-2 PN16
Fig. 4970 & 4970G NEW DESIGN

Fig. 4970 & 4970G NEW DESIGN

Fully-lugged Lever/Gearbox Operated - Ductile Iron

Fig. 4970: 50mm to 200mm
Fig. 4970G: 50mm to 600mm

PN16

END CONNECTIONS
To suit flange connections BS EN 1092-2 PN16.
Fig. 2850G / 2851G / 3850G / 3851G / 4850G / 4851G

Fig. 2850G / 2851G / 3850G / 3851G / 4850G / 4851G

Semi-Lugged Wafer Pattern Gearbox Operated Butterfly Valves - Ductile Iron

50mm to 600mm

PN16 / ANSI 125

END CONNECTIONS
End connections compatible with BS EN1092-2 PN16 & ANSI B16.1 Class 125 flanges.
Fig. 2850L / 2851L / 3850L / 3851L / 4850L / 4851L

Fig. 2850L / 2851L / 3850L / 3851L / 4850L / 4851L

Semi-Lugged Wafer Pattern Lever Operated Butterfly Valves - Ductile Iron

50mm to 200mm

PN16 / ANSI 125

END CONNECTIONS
End connections compatible with BS EN1092-2 PN16 & ANSI B16.1 Class 125 flanges.
Fig. 2870AG / 2871AG / 3870AG / 3871AG / 4870AG / 4871AG

Fig. 2870AG / 2871AG / 3870AG / 3871AG / 4870AG / 4871AG

Fully Lugged Gearbox Operated Butterfly Valves - Ductile Iron

50mm to 600mm

ANSI 125

END CONNECTIONS
End connections compatible with ANSI B16.1 Class 125 flanges.
Fig. 2870AL / 2871AL / 3870AL / 3871AL / 4870AL / 4871AL

Fig. 2870AL / 2871AL / 3870AL / 3871AL / 4870AL / 4871AL

Fully Lugged Lever Operated Butterfly Valves - Ductile Iron

50mm to 200mm

ANSI 125

END CONNECTIONS
End connections compatible with ANSI B16.1 Class 125 flanges.
Fig. 2870MG / 2871MG / 3870MG / 3871MG / 4870MG / 4871MG

Fig. 2870MG / 2871MG / 3870MG / 3871MG / 4870MG / 4871MG

Fully Lugged Gearbox Operated Butterfly Valves - Ductile Iron

50mm to 600mm

PN16

END CONNECTIONS
End connections compatible with BS EN1092-2 PN16 flanges.
Fig. 2870ML / 2871ML / 3870ML / 3871ML / 4870ML / 4871ML

Fig. 2870ML / 2871ML / 3870ML / 3871ML / 4870ML / 4871ML

Fully Lugged Lever Operated Butterfly Valves - Ductile Iron

50mm to 200mm

PN16

END CONNECTIONS
End connections compatible with BS EN1092-2 PN16 flanges.
